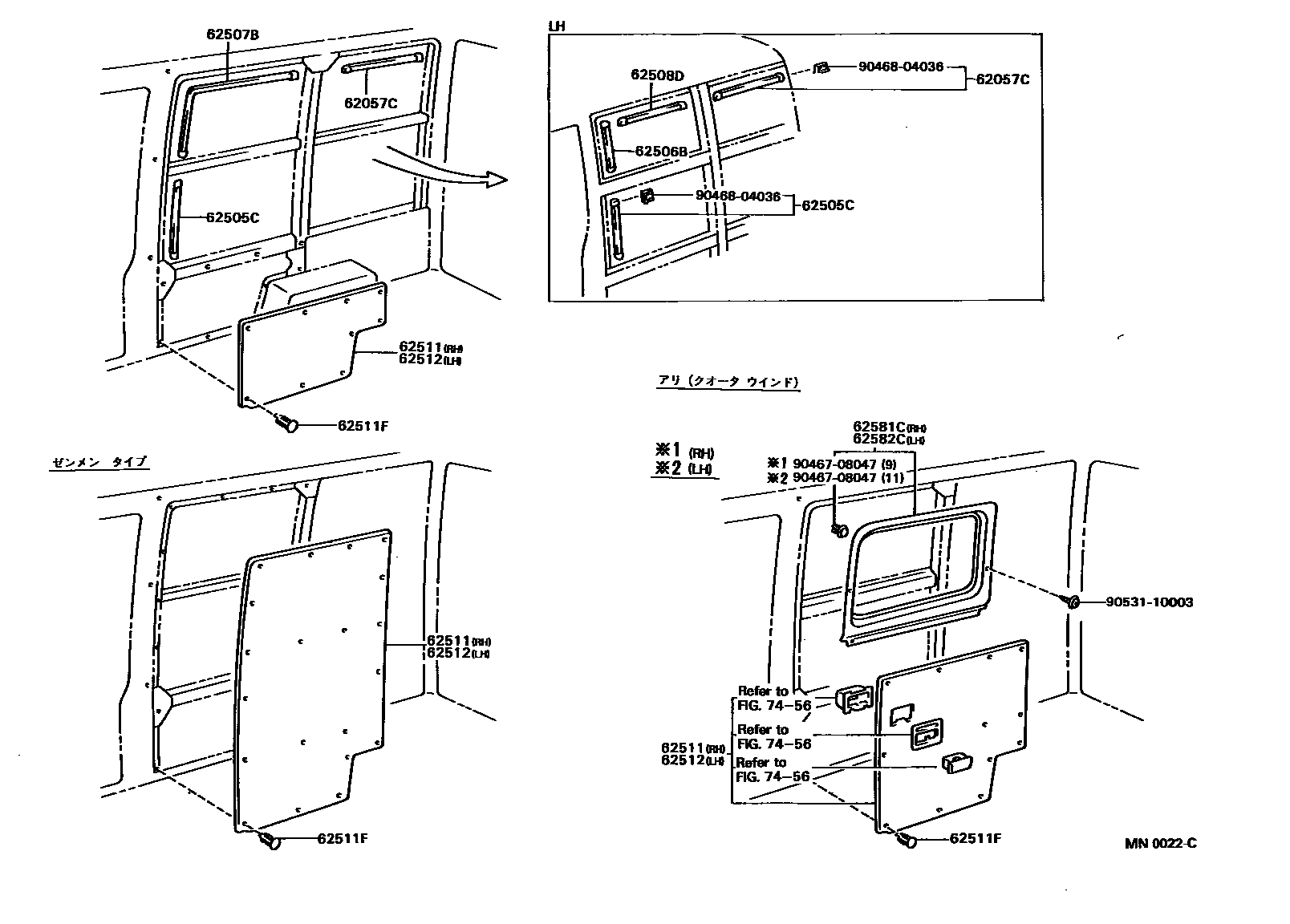

INSIDE TRIM BOARD

0001 1 0002 1

62057CMOULDING SUB-ASSY, QUARTER TRIM, NO.3

main62057-90P80iKXC10..STD198907-199511

sub62506-90P80

62505CMOULDING SUB-ASSY, QUARTER TRIM

main62505-90P80iKXC10..STD..02S198907-199511

sub62508-90P80

62506BMOULDING SUB-ASSY, QUARTER TRIM, LH

main62506-90P80iKXC10..STD..02S198907-199511

62507BMOULDING SUB-ASSY, QUARTER TRIM, NO.2

main62507-90P80iKXC10..STD..02S198907-199511

sub62508-90P80

62508DMOULDING SUB-ASSY, QUARTER TRIM, NO.2 LH

main62508-90P80iKXC10..STD..02S198907-199511

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-38060-B0iKXC10..05S199409-199412

main62511-90P80iKXC10..STD..02S198907-199511

main62511-90P82-03iKXC10..STD..02S198907-199511

main62511-90P82-03iCXC10,KXC10..DX..02S198907-199511

LIGHT GRAY,TRIM1#

main62511-90P83-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

main62511-90P84-03iCXC10,KXC10..02S198907-199511

62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)

main67771-90P80-03iCXC10,KXC10..02S198907-199511

LIGHT GRAY,TRIM1#

main67771-90P80-03iCXC10,KXC10..02S198907-199511

main67771-90P80-03iCXC10,KXC10..02S198907-199511

main67771-90P80-03iCXC10,KXC10..02S199205-199511

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-90P80iKXC10..STD..02S198907-199511

main62512-90P82-03iCXC10,KXC10..DX..02S198907-199511

main62512-90P82-03iKXC10..STD..02S198907-199511

LIGHT GRAY,TRIM1#

main62512-90P83-03iCXC10,KXC10..02S198907-199511

main62512-90P83-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

62581CGARNISH, REAR WINDOW SIDE, RH

main62550-90P80-03iCXC10,KXC10..02S198907-199511

LIGHT GRAY,TRIM1#

main62550-90P81-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

62582CGARNISH, REAR WINDOW SIDE, LH

main62560-90P80-03iCXC10,KXC10..02S198907-199511

LIGHT GRAY,TRIM1#

main62560-90P81-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

7456

9046708047

main90467-08047

9046804036

main90468-04036

9053110003

main90531-10003

14 parts on this diagram · 2 diagrams in section
