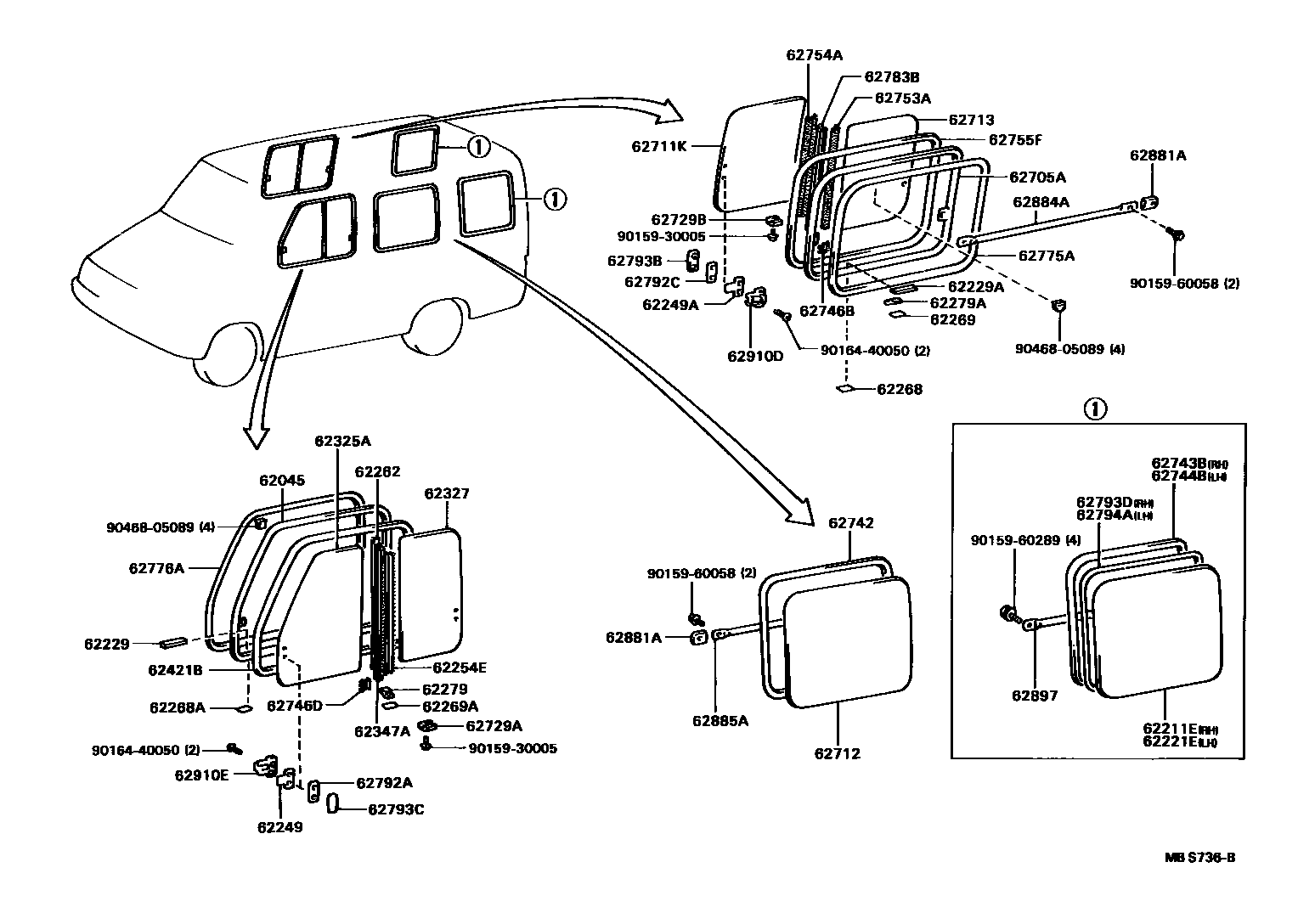

SIDE WINDOW
62045FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH
62211EGLASS, SIDE WINDOW, REAR RH
62221EGLASS, SIDE WINDOW, FRONT LH
62229PACKING, SIDE WINDOW
62229APACKING, SIDE WINDOW, NO.2
62249PLATE, SIDE WINDOW, RH
62249APLATE, SIDE WINDOW, LH
62254EWEATHERSTRIP, SIDE WINDOW, CENTER NO.2
62262WEATHERSTRIP, SIDE WINDOW, LH
62268FILM, SIDE WINDOW FRAME, B
62268AFILM, SIDE WINDOW FRAME
62269FILM, SIDE WINDOW FRAME, RH
62269AFILM, SIDE WINDOW FRAME, LH
62279SPACER, SIDE WINDOW FRAME, UPPER
62279ASPACER, SIDE WINDOW FRAME
62347AFRAME, FRONT DOOR WINDOW, INNER FRONT LH
62421BRUN, FR0NT DOOR WINDOW, LH
62705AFRAME SUB-ASSY, QUARTER WINDOW, RH
62711KGLASS, QUARTER WINDOW, FRONT RH
62712GLASS, QUARTER WINDOW, LH
62713GLASS, QUARTER WINDOW, REAR RH
62729APAD, WINDOW CENTER SASH
62729BPAD, WINDOW CENTER SASH
62742WEATHERSTRIP, QUARTER WINDOW, LH
62743BWEATHERSTRIP, SIDE REAR WINDOW
62744BWEATHERSTRIP, SIDE REAR WINDOW, LH
62746BPACKING, QUARTER WINDOW, RH
62746DPACKING, QUARTER WINDOW, LH
62755FRUN, QUARTER WINDOW, RH
62775ACLIP, QUARTER WINDOW
62776ACLIP, SLIDE DOOR WINDOW, LH
62783BSASH, QUARTER WINDOW, CENTER RH
62792APACKING, SIDE WINDOW LOCK, RH
62792CPACKING, SIDE WINDOW LOCK, LH
62793BRETAINER, SIDE WINDOW LOCK, RH
62793CRETAINER, SIDE WINDOW LOCK, LH
62793DWEATHERSTRIP, QUARTER WINDOW, OUTER RH
sub62794-90P80
62794AWEATHERSTRIP, QUARTER WINDOW, OUTER LH
62881ABRACKET, QUARTER WINDOW GUARD
62884AGUARD, QUARTER WINDOW, RH
LIGHT GRAY,TRIM1#
62885AGUARD, QUARTER WINDOW, LH
LIGHT GRAY,TRIM1#
62897TUBE, SIDE WINDOW GUARD
62910DLOCK ASSY, QUARTER WINDOW
62910ELOCK ASSY, SIDE WINDOW
9015930005
main90159-30005
9015960058
main90159-60058
9015960289
main90159-60289
9016440050
main90164-40050
9046805089
main90468-05089
53 parts on this diagram · 1 diagram in section
