SIDE MEMBER
57475PLATE, FRONT FLOOR CROSSMEMBER
58169ARETAINER, REAR HEATER MOUNTING
61013APILLAR SUB-ASSY, NO.3 RH
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61032APILLAR SUB-ASSY, NO.1 INNER, RH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61054APLATE SUB-ASSY, NO.1 LOWER RAIL, INNER RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61111BPANEL, NO.1 SIDE, RH
61112BPANEL, NO.2 SIDE, RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61231RAIL, ROOF SIDE, INNER RH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61277BJOINT, ROOF DRIP CHANNEL
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
61305ARAIL SUB-ASSY, NO.3 CENTER, OUTER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61411DPANEL, FENDER, OUTER RH
61432ARAIL, NO.2 LOWER INNER, RH
61556GUSSET, PILLAR TO RAIL, NO.1
LH
RH
61557GUSSET, PILLAR TO RAIL, NO.2
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61635BPANEL, QUARTER, INNER FRONT RH
61703FPANEL SUB-ASSY, QUARTER, INNER FRONT RH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61725BOX, FUEL INLET
61729CBRACKET, ROOF SIDE RAIL, RH
61778BPLATE, BACK DOOR OPENING, LOWER RH
9095001181
main90950-01181
9095001356
main90950-01356
9095001440
main90950-01440
9095001444
main90950-01444

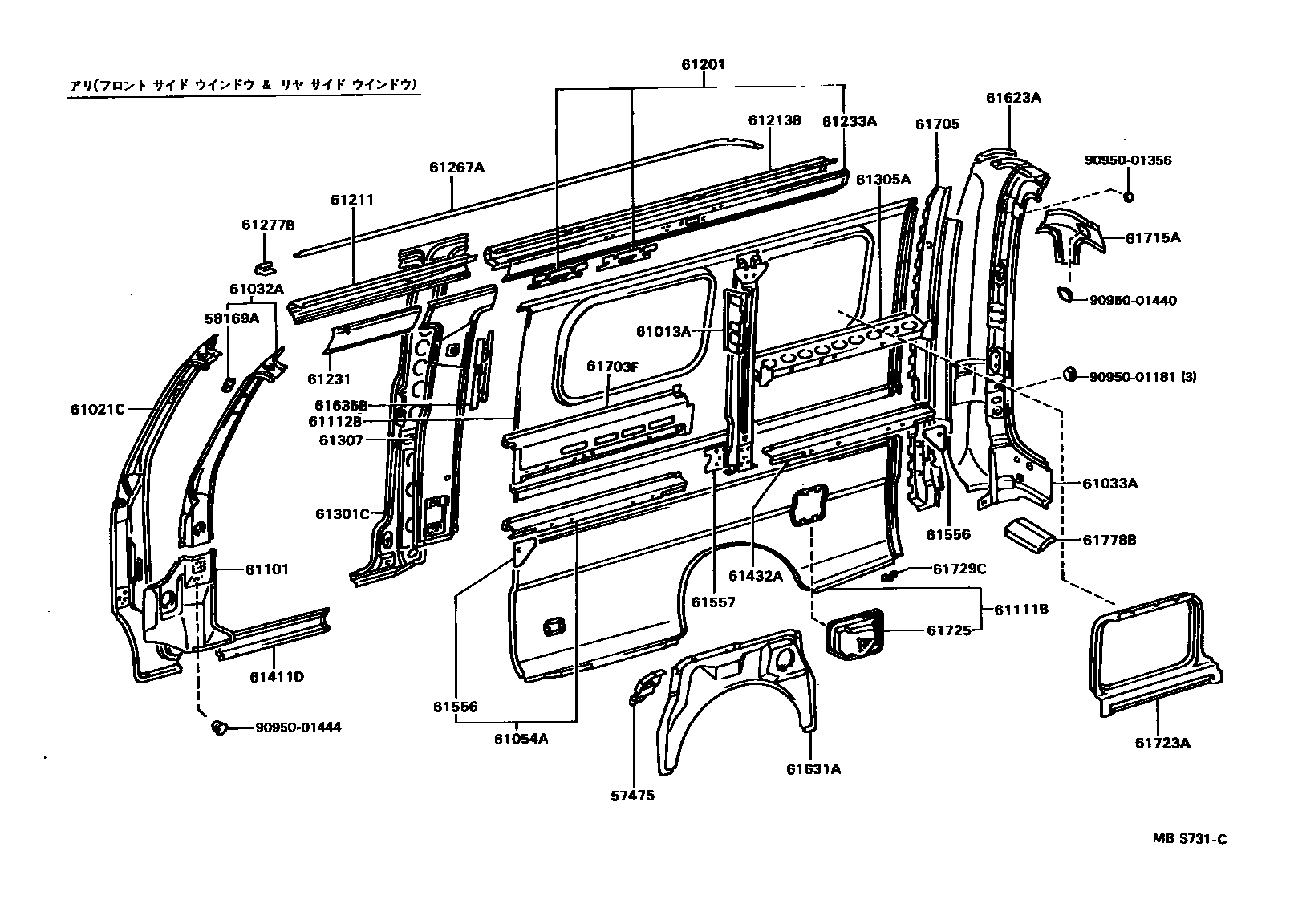

38 parts on this diagram · 4 diagrams in section
