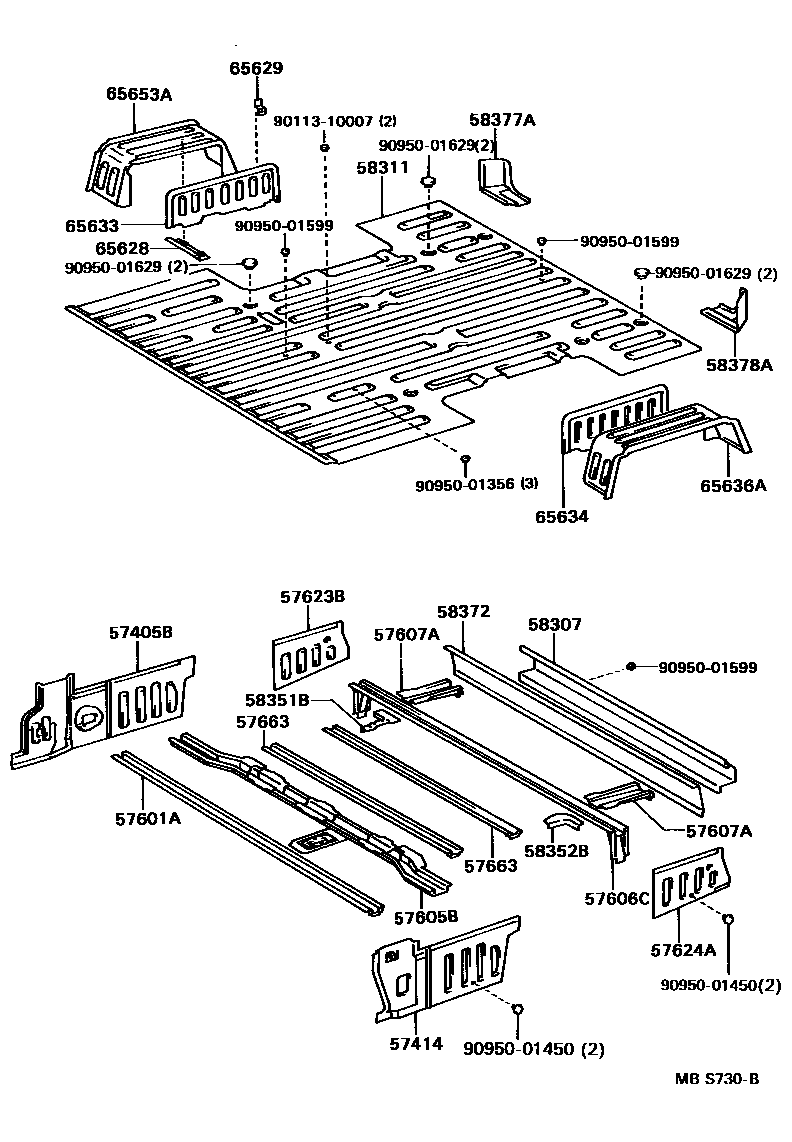

REAR FLOOR PANEL & REAR FLOOR MEMBER
57405BHOUSING SUB-ASSY, REAR FLOOR, RH
57414RAIL, FLOOR SIDE, CENTER LH
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57623BPLATE. REAR FLOOR SIDE MEMBER, REAR RH
57624APLATE. REAR FLOOR SIDE MEMBER, REAR LH
57663MEMBER, REAR FLOOR CROSS, CENTER
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58351BREINFORCEMENT, REAR FLOOR PANEL, RH
58352BREINFORCEMENT, REAR FLOOR PANEL, LH
58372PANEL, BODY LOWER BACK, INNER
58377APANEL, BODY LOWER BACK, RH
58378APANEL, BODY LOWER BACK, LH
65628BRACKET, FUEL INLET HOSE PROTECTOR, UPPER
65629BRACKET, FUEL INLET HOSE PROTECTOR, SIDE
65633PANEL, WHEEL HOUSE, CENTER
65634PANEL, WHEEL HOUSE, CENTER, LH
65636APANEL, WHEEL HOUSE, REAR LH
65653APANEL, WHEEL HOUSE, REAR RH
9011310007
9095001356
9095001450
9095001599
9095001629
27 parts on this diagram · 1 diagram in section
