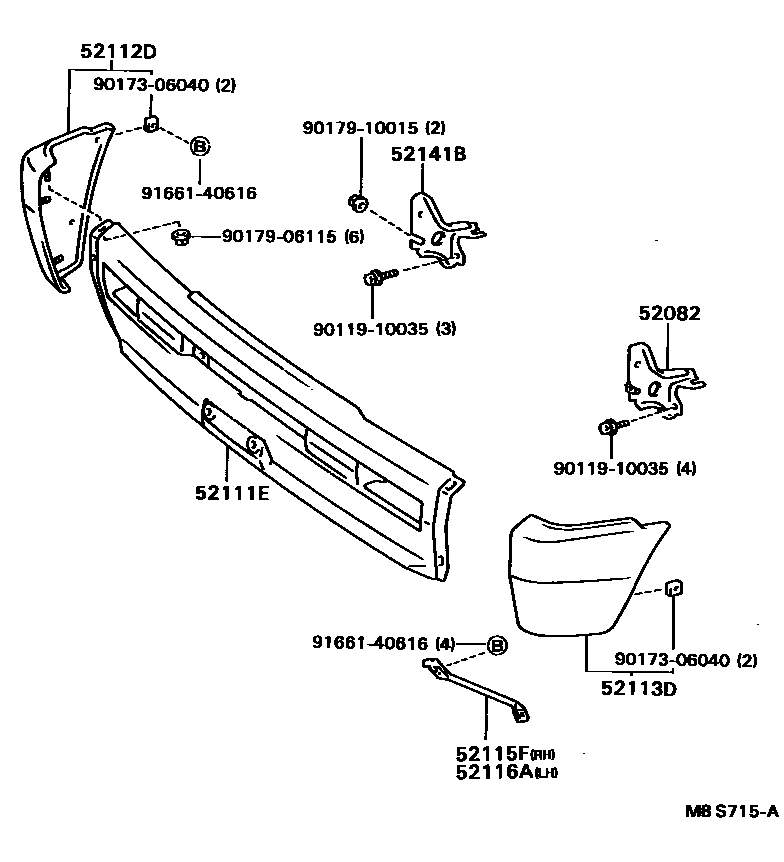

FRONT BUMPER & BUMPER STAY

52082STAY SUB-ASSY, FRONT BUMPER, LH

main52082-90P80iKXC10198907-199105

main52142-38020iCXC10,KXC10199105-199511

52111EBAR, FRONT BUMPER

main52101-38030iCXC10,KXC10199105-199511

main52101-90P80iKXC10198907-199105

52112DEXTENSION, FRONT BUMPER, RH

main52102-90P80-03iKXC10..STD198907-199105

BLACK,TRIM1#&045 ,8A1

main52102-90P80-04iCXC10,KXC10..DX198907-199511

BLUE,TRIM1#&8A1

main52102-90P80-08iCXC10,KXC10..DX198907-199511

WHITE,TRIM1#&045 ,2AP

main52102-90P80-09iCXC10,KXC10..DX199105-199511

YELLOW,TRIM1#&571

main52102-90P80-F0iKXC10198909-199105

YELLOW,541

main52102-90P80-G0iCXC10,KXC10198909

GREEN,6K3

main52102-90P80-J0iCXC10,KXC10198909

LIGHT BLUE,8G3

52113DEXTENSION, FRONT BUMPER, LH

main52103-90P80-03iKXC10..STD199105-199511

BLACK,TRIM1#&045 ,571 ,8A1

main52103-90P80-04iCXC10,KXC10..DX198907-199511

BLUE,TRIM1#&8A1

main52103-90P80-08iCXC10,KXC10..DX198907-199511

WHITE,TRIM1#&045 ,2AP

main52103-90P80-09iCXC10,KXC10..DX199105-199511

YELLOW,TRIM1#&571

main52103-90P80-F0iKXC10198909-199105

YELLOW,541

main52103-90P80-G0iCXC10,KXC10198909

GREEN,6K3

main52103-90P80-J0iCXC10,KXC10198909

LIGHT BLUE,8G3

52115FINSERT, FRONT BUMPER COVER

main52115-38020iCXC10,KXC10199105-199511

main52115-90P80iKXC10198907-199105

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-38020iCXC10,KXC10199105-199511

main52116-90P80iKXC10198907-199105

52141BSTAY, FRONT BUMPER

main52081-38040iCXC10,KXC10199105-199511

main52141-90P80iKXC10198907-199105

9011910035

main90119-10035

9017306040

main90173-06040

9017906115

main90179-06115

9017910015

main90179-10015

9166140616

main91661-40616

12 parts on this diagram · 1 diagram in section
