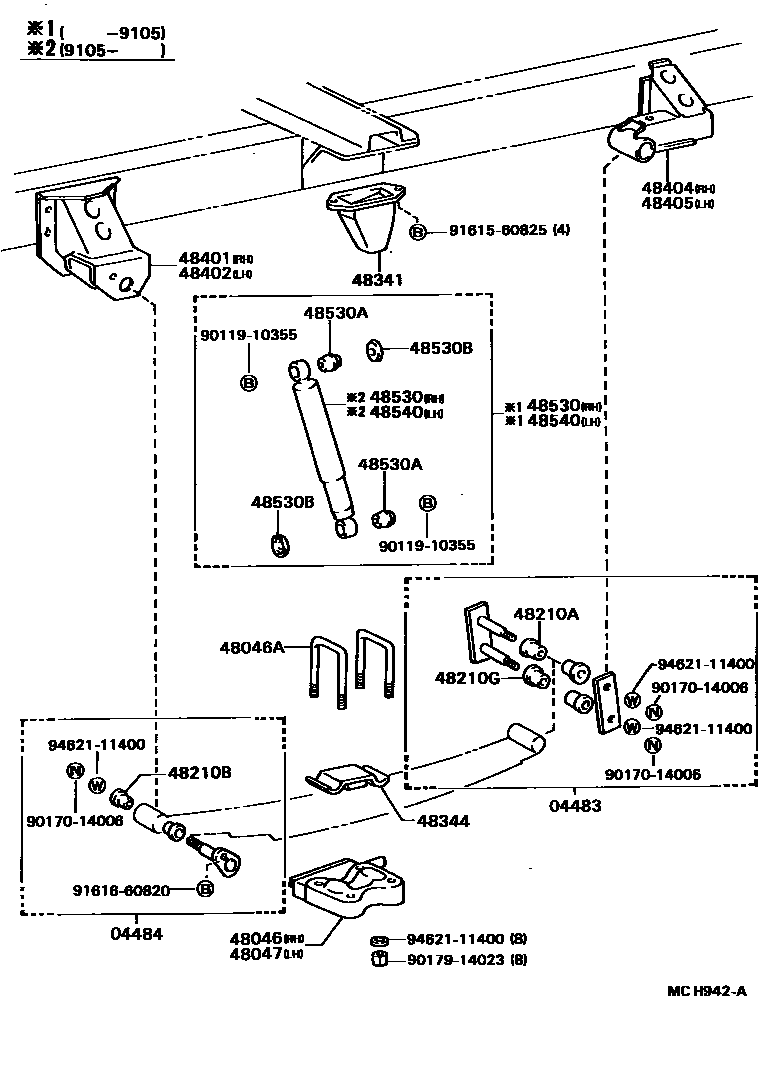

REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
sub04483-35040
04484PIN KIT, REAR SPRING
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48046ABOLT, U(FOR REAR SPRING)
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210BBUSH(FOR REAR SPRING PIN)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48341BUMPER, REAR SPRING
48344STOPPER, BUMPER, REAR
48404BRACKET SUB-ASSY, REAR SPRING, REAR RH
48405BRACKET SUB-ASSY, REAR SPRING, REAR LH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
9011910355
main90119-10355
9017014006
main90170-14006
9017914023
main90179-14023
9161560825
main91615-60825
9161660820
main91616-60820
9462111400
main94621-11400
25 parts on this diagram · 2 diagrams in section
