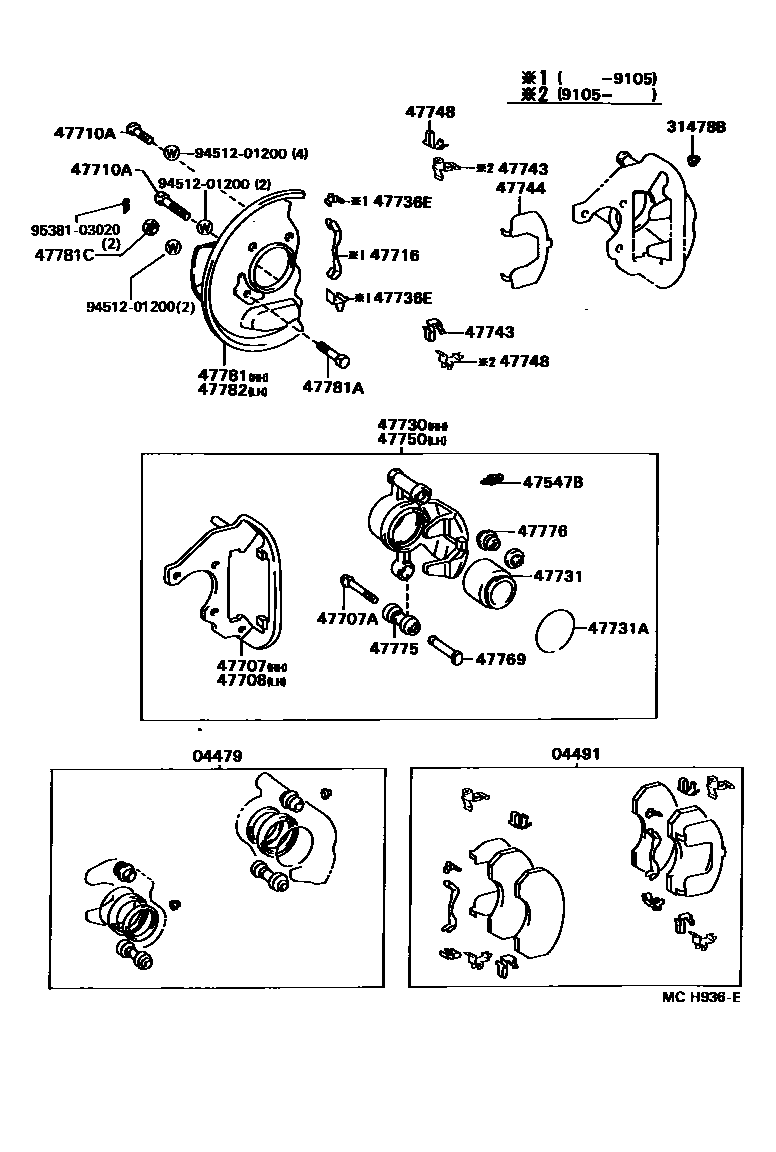

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-28010iCXC10,KXC10198907-199511

04491PAD KIT, DISC BRAKE, FRONT

main04491-27130iCXC10,KXC10199105-199505

main04491-28070iKXC10198907-199105

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iCXC10,KXC10198907-199511

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iCXC10,KXC10198907-199511

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-27030iCXC10,KXC10198907-199511

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08384×2iCXC10,KXC10198907-199511

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-27030iCXC10,KXC10198907-199511

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010×2iCXC10,KXC10198907-199511

main90101-12030×4iCXC10,KXC10198907-199511

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28020×2iKXC10198907-199105

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28040iCXC10,KXC10198907-199511

47731PISTON, FRONT DISC BRAKE

main47731-28020×2iCXC10,KXC10198907-199511

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001×2iCXC10,KXC10198907-199511

47736EPLATE, FRONT DISC BRAKE PAD GUIDE, NO.1

main47736-14030×4iKXC10198907-199105

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040×2iKXC10198907-199105

main47743-28010×2iCXC10,KXC10199105-199511

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-28020×2iCXC10,KXC10198907-199511

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050×2iKXC10198907-199105

main47748-28010×2iCXC10,KXC10199105-199511

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28040iCXC10,KXC10198907-199511

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28010×2iCXC10,KXC10198907-199511

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-17010×2iCXC10,KXC10198907-199511

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14010×2iCXC10,KXC10198907-199511

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28030iKXC10198907-199105

main47781-28050iCXC10,KXC10199105-199511

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001×2iCXC10,KXC10198907-199511

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200×2iCXC10,KXC10198907-199511

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28030iKXC10198907-199105

main47782-28050iCXC10,KXC10199105-199511

9451201200

main94512-01200

9538103020

main95381-03020

26 parts on this diagram · 2 diagrams in section
