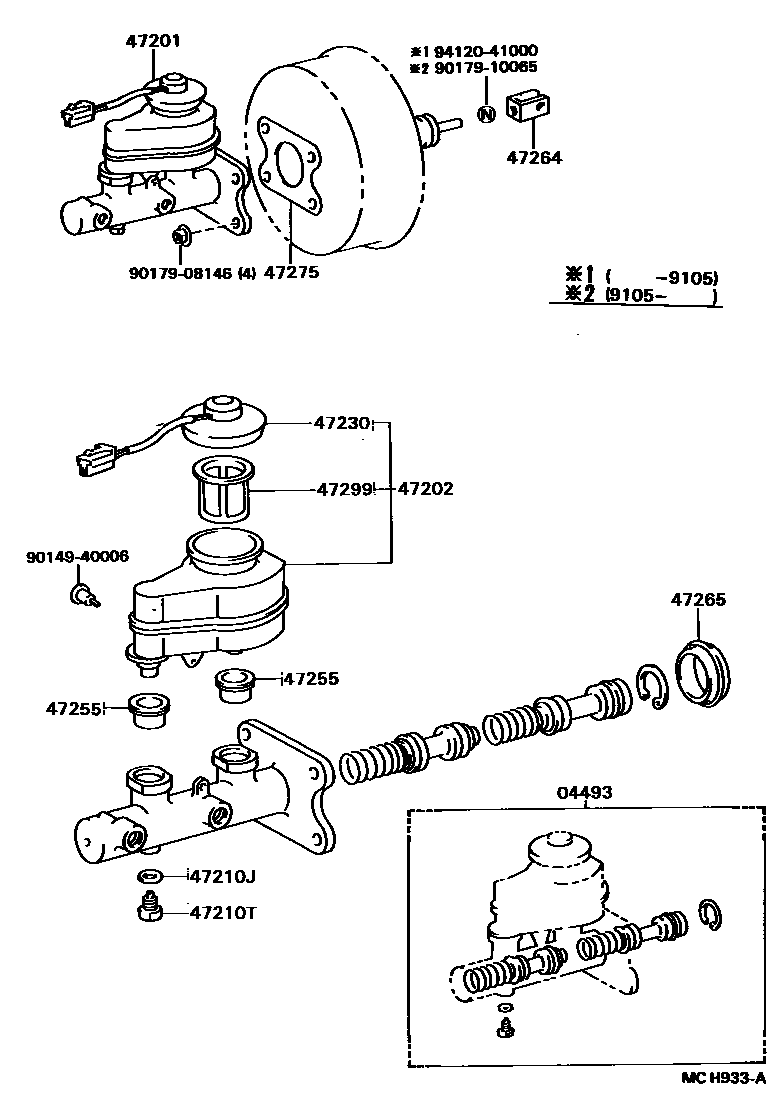

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-27130iCXC10,KXC10198907-199511

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-27250iCXC10,KXC10198907-199511

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-32070iCXC10,KXC10198907-199511

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCXC10,KXC10198907-199511

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCXC10,KXC10198907-199511

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-20110iCXC10,KXC10198907-199511

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iCXC10,KXC10198907-199511

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iKXC10198907-199105

main47264-28010iCXC10,KXC10199105-199511

47265BOOT, MASTER CYLINDER

main47265-20050iCXC10,KXC10198907-199511

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iCXC10,KXC10198907-199511

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iCXC10,KXC10198907-199511

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

9412041000

main94120-41000

15 parts on this diagram · 1 diagram in section
