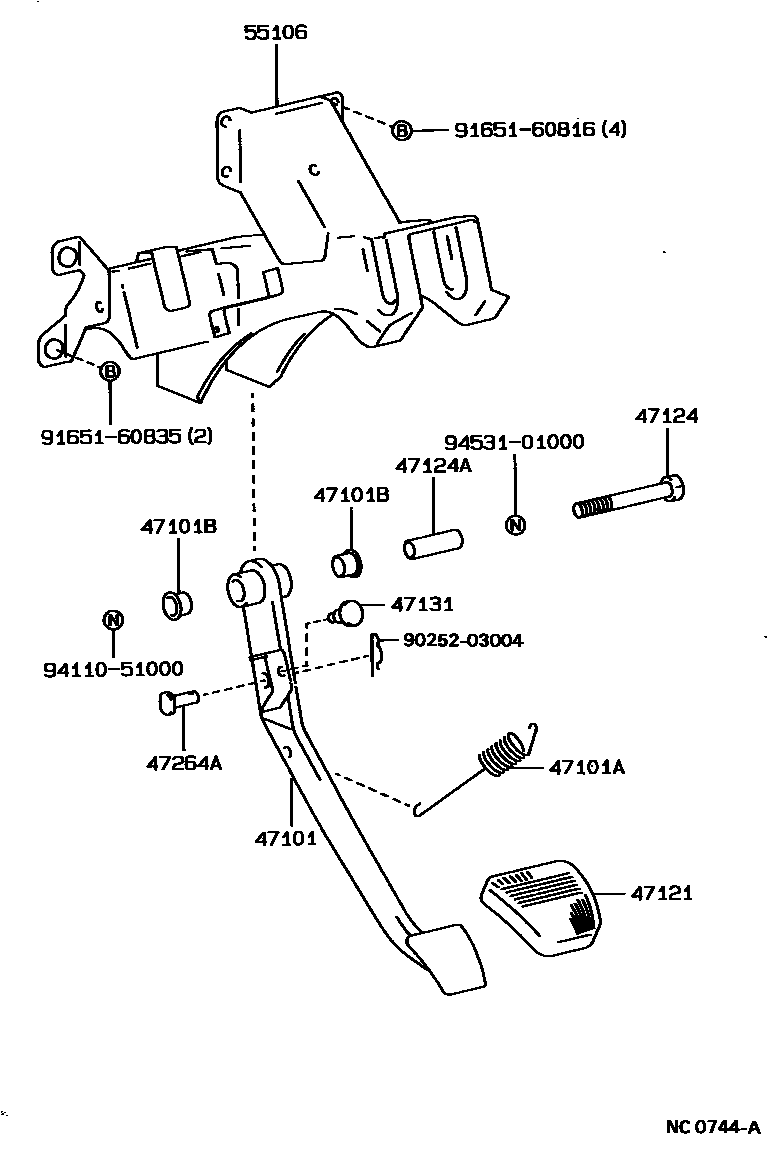

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-27120iCXC10,KXC10..5H198907-199511

main47101-27140iCXC10,KXC10..ATM199204-199511

main47101-38020iCXC10,KXC10..ATM199105-199204

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-16016iCXC10,KXC10..5H198907-199511

main90507-16021iCXC10,KXC10..ATM199105-199511

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iCXC10,KXC10198907-199511

47121PAD, BRAKE PEDAL

main31321-14020iCXC10,KXC10198907-199511

47124SHAFT, BRAKE PEDAL

main90101-10039iCXC10,KXC10198907-199511

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iCXC10,KXC10198907-199511

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iKXC10198907-199105

main90541-06036iCXC10,KXC10199105-199511

47264APIN(FOR PUSH ROD)

main90240-10015iCXC10,KXC10198907-199511

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-38040iCXC10,KXC10..ATM199105-199204

main55106-38060iCXC10,KXC10..ATM199204-199511

main55106-90P80iCXC10,KXC10..5H198907-199511

9025203004

main90252-03004

9165160816

main91651-60816

9165160835

main91651-60835

9411051000

main94110-51000

9453101000

main94531-01000

14 parts on this diagram · 1 diagram in section
