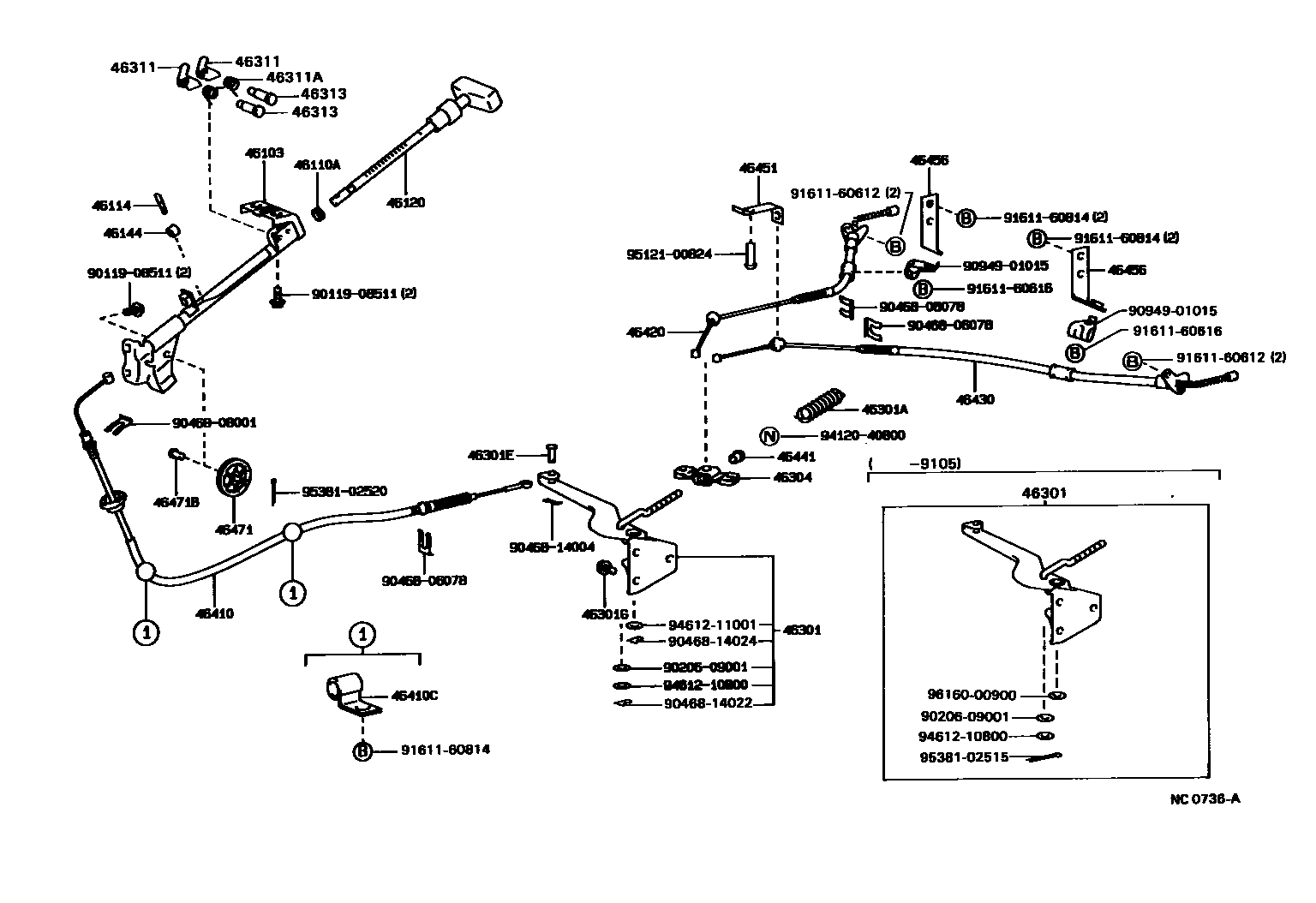

PARKING BRAKE & CABLE

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-27080iCXC10,KXC10198907-199511

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iCXC10,KXC10198907-199511

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iCXC10,KXC10198907-199511

46120PLUNGER ASSY, PARKING BRAKE

main46120-27030iCXC10,KXC10198907-199511

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iCXC10,KXC10198907-199511

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-27040iKXC10198907-199105

main46320-27060iCXC10,KXC10199105-199511

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-23039iCXC10,KXC10198907-199511

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08062iCXC10,KXC10198907-199511

46301GBOLT(FOR INTERMEDIATE LEVER)

main90119-08086iCXC10,KXC10198907-199511

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iCXC10,KXC10198907-199511

46311PAWL, PARKING BRAKE

main46311-26010iCXC10,KXC10198907-199511

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iCXC10,KXC10198907-199511

46313PIN, PARKING BRAKE PAWL

main46313-40010iCXC10,KXC10198907-199511

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-27200iCXC10,KXC10198907-199511

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main90461-10494iCXC10,KXC10198907-199511

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-27270iKXC10198907-199105

main46420-27290iCXC10,KXC10199105-199511

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-27270iKXC10198907-199105

main46430-27290iCXC10,KXC10199105-199511

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iCXC10,KXC10198907-199511

46451BRACKET, CABLE SUPPORT

main46451-27110iCXC10,KXC10198907-199511

46456BRACKET, CABLE RETAINING

main46456-27090iCXC10,KXC10198907-199511

main46457-27060iCXC10,KXC10198907-199511

46471PULLEY, WIRE

main46471-30010iCXC10,KXC10198907-199511

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iCXC10,KXC10198907-199511

9011908511

main90119-08511

9020609001

main90206-09001

9046806078

main90468-06078

9046808001

main90468-08001

9046814004

main90468-14004

9046814022

main90468-14022

9046814024

main90468-14024

9094901015

main90949-01015

9161160612

main91611-60612

9161160616

main91611-60616

9161160814

main91611-60814

9412040800

main94120-40800

9461210800

main94612-10800

9461211001

main94612-11001

9512100824

main95121-00824

9538102515

main95381-02515

9538102520

main95381-02520

9616000900

main96160-00900

40 parts on this diagram · 1 diagram in section
