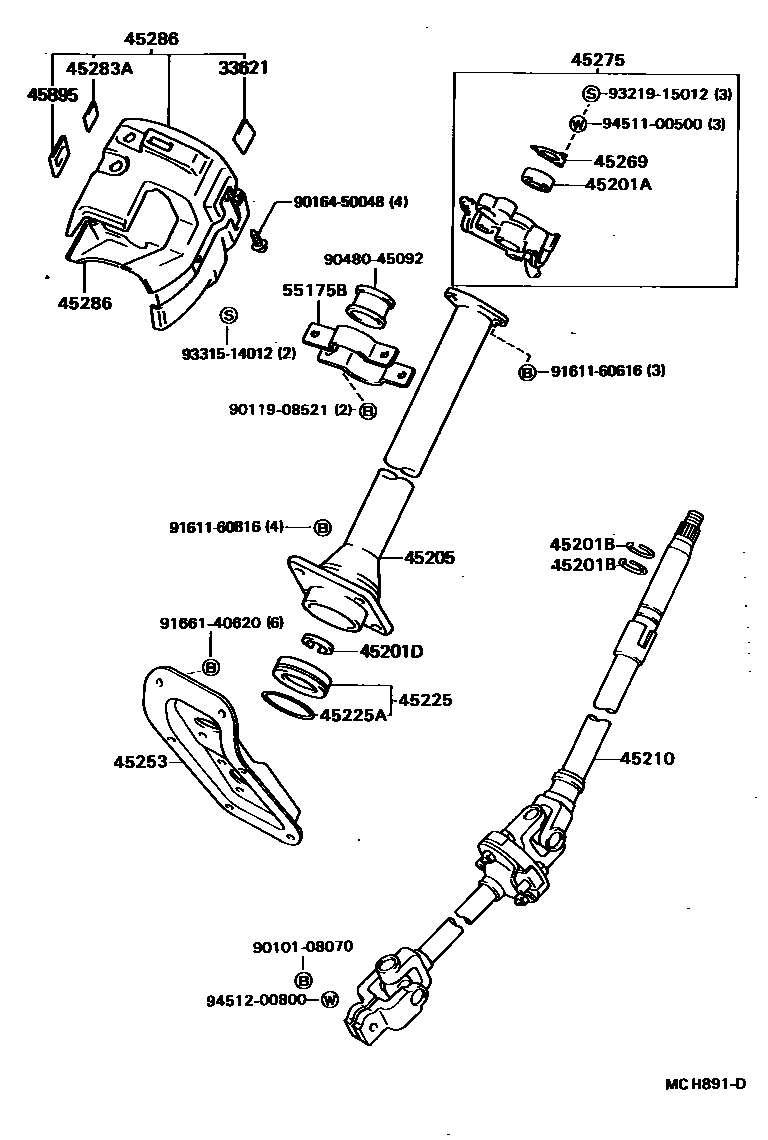

STEERING COLUMN & SHAFT

0001 1 0002 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iCXC10,KXC10..5H198907-199511

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iCXC10,KXC10198907-199511

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCXC10,KXC10198907-199511

main90520-17269iCXC10,KXC10198907-199511

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iCXC10,KXC10198907-199511

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-26110iCXC10,KXC10198907-199511

45210SHAFT ASSY, STEERING MAIN

main45210-27040iKXC10198907-199105

main45210-27070iKXC10199105-199511

main45210-27080iCXC10199105-199409

45225BLOCK, BEARING

main45225-60010iCXC10,KXC10198907-199511

45225ARING, O(FOR BEARING BLOCK)

main96711-24053iCXC10,KXC10198907-199511

45253COVER, STEERING COLUMN HOLE

main45025-27040iCXC10,KXC10198907-199511

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iCXC10,KXC10198907-199511

45275BRACKET, STEERING COLUMN, UPPER

main45307-27030iCXC10,KXC10..5H199105-199511

main45307-27050iCXC10,KXC10..ATM199105-199511

main45307-28011iKXC10198907-199105

sub45307-26061

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iCXC10,KXC10198907-199511

45286COVER, STEERING COLUMN

main45023-26230-01iKXC10198907-199105

main45023-26230-B0iCXC10,KXC10..5H199105-199511

main45023-26260-B0iCXC10,KXC10..ATM199105-199511

main45287-26040-11iKXC10198907-199105

main45287-26040-B0iCXC10,KXC10..5H199105-199511

main45287-26060-B0iCXC10,KXC10..ATM199105-199511

45895PLATE, STEERING LOCK CAUTION

main45895-26010iCXC10,KXC10198907-199511

55175BCLAMP, STEERING COLUMN SUPPORT, NO.1

main55175-90P80iCXC10,KXC10198907-199511

9010108070

main90101-08070

9011908521

main90119-08521

9016450048

main90164-50048

9048045092

main90480-45092

9161160616

main91611-60616

9161160816

main91611-60816

9166140620

main91661-40620

9321915012

main93219-15012

9331514012

main93315-14012

9451100500

main94511-00500

9451200800

main94512-00800

26 parts on this diagram · 2 diagrams in section
