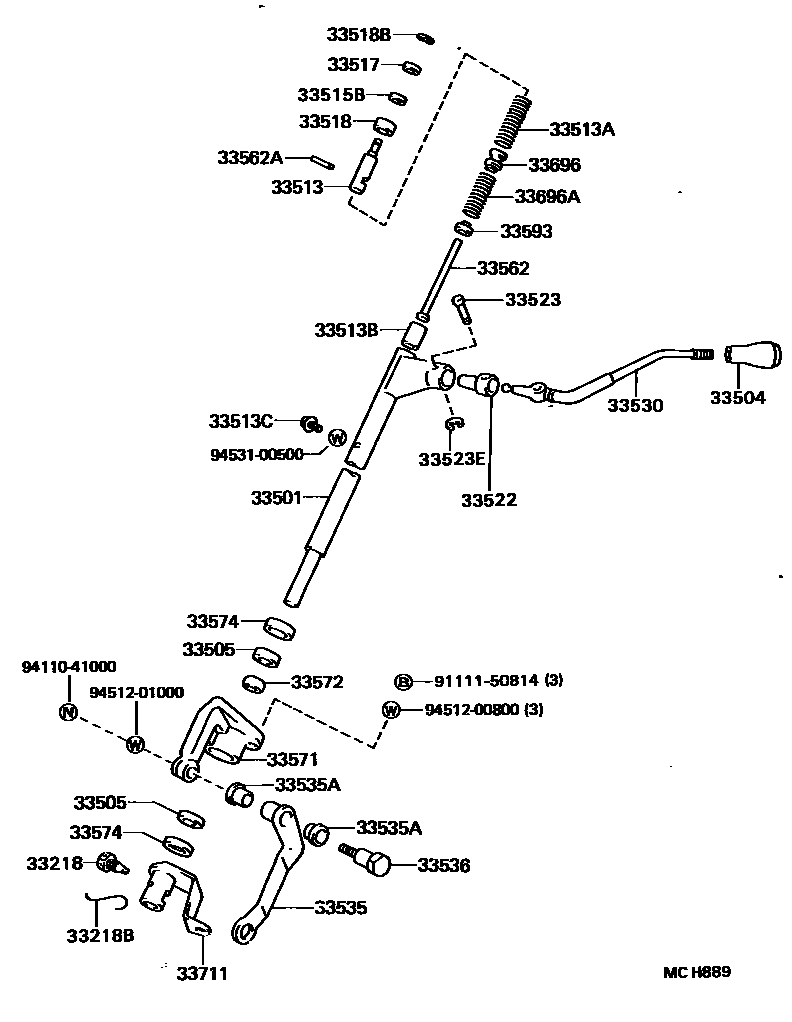

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1

33218BOLT, SHIFT LEVER LOCK

main33218-35010iCXC10,KXC10198907-199511

33218BWIRE(FOR SHIFT LEVER LOCK BOLT)

main90580-14002iCXC10,KXC10198907-199511

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-27170iCXC10,KXC10..5H198907-199511

main33501-27190iKXC10..3HC199105-199511

main33501-27200iCXC10..4HC199105-199409

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iCXC10,KXC10..3HC,5H198907-199511

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17005×2iCXC10,KXC10..5H198907-199511

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-26020iCXC10,KXC10..5H198907-199511

main33513-36020iCXC10,KXC10..ATM199105-199511

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iCXC10,KXC10198907-199511

33513BSPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90560-11015iCXC10,KXC10..5H198907-199511

33513CBOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90109-05012iCXC10,KXC10..5H198907-199511

33515BSEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)

main33515-30010iCXC10,KXC10198907-199511

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iCXC10,KXC10198907-199511

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-35010iCXC10,KXC10199310-199511

main33518-36010iCXC10,KXC10198907-199310

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iCXC10,KXC10198907-199511

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iCXC10,KXC10198907-199511

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iCXC10,KXC10198907-199511

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iCXC10,KXC10198907-199511

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33530-27190iCXC10..4HC199105-199409

main33541-27320iCXC10,KXC10..5H198907-199511

main33541-27340iKXC10..3HC199105-199511

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-26020iCXC10,KXC10..5H198907-199511

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007×2iCXC10,KXC10..5H198907-199511

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iCXC10,KXC10..5H198907-199511

33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

main33562-26010iCXC10,KXC10..5H198907-199511

33562APIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

main90254-03006iCXC10,KXC10..5H198907-199511

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-26012iCXC10,KXC10..5H198907-199511

main33571-26040iCXC10,KXC10..ATM199105-199511

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-28010iCXC10,KXC10..ATM199105-199511

main33572-36010iCXC10,KXC10..5H198907-199511

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010×2iCXC10,KXC10..5H198907-199511

33593HOLDER, SPRING (FOR SELECT LEVER)

main33593-26030iCXC10,KXC10..5H198907-199511

33696SEAT, SELECT SPRING

main33696-26020iCXC10,KXC10..5H198907-199511

33696ASPRING, COMPRESSION

main90501-18049iCXC10,KXC10..5H198907-199511

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-26050iCXC10,KXC10..5H198907-199511

main33527-27110iCXC10,KXC10..ATM199105-199511

9111150814

main91111-50814

9411041000

main94110-41000

9451200800

main94512-00800

9451201000

main94512-01000

9453100500

main94531-00500

34 parts on this diagram · 4 diagrams in section
