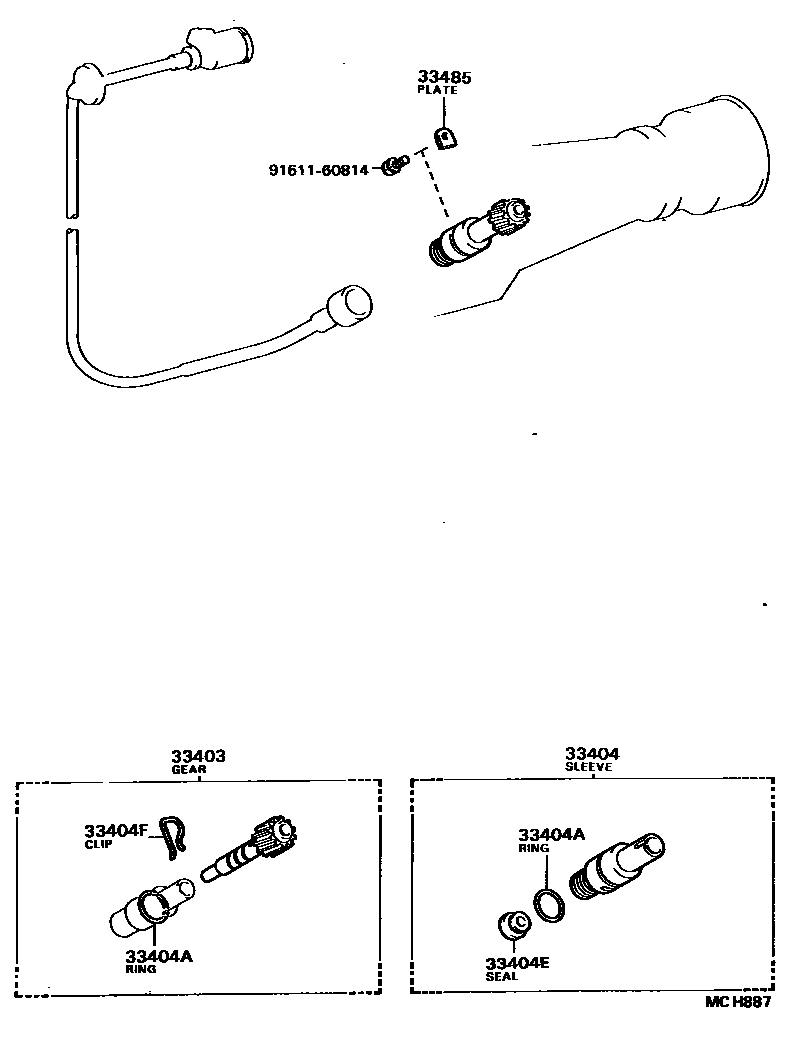

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29045iCXC10..5H199105-199409

main33482-39095iKXC10..5H198907-199511

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iCXC10,KXC10..5H198907-199511

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCXC10,KXC10..5H198907-199511

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCXC10,KXC10..5H198907-199511

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCXC10,KXC10..5H198907-199511

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iCXC10,KXC10..5H198907-199511

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
