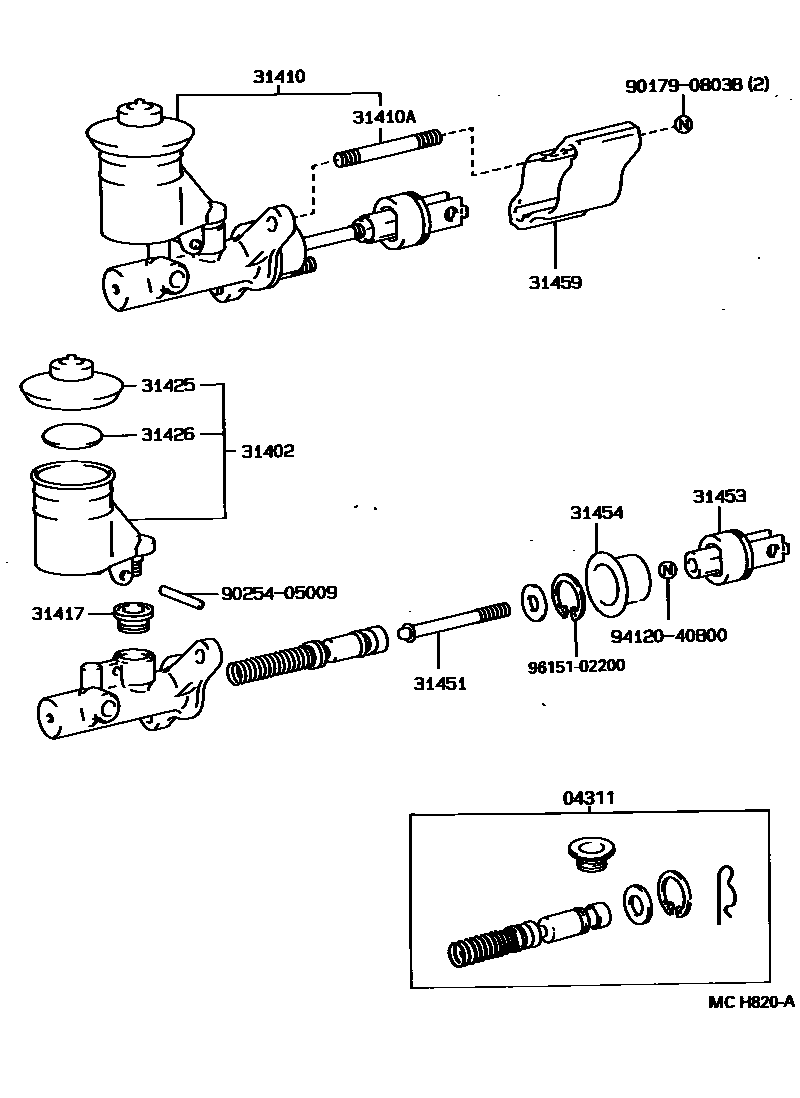

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12080iCXC10,KXC10..5H199112-199403

main04311-22040iCXC10,KXC10..5H198907-199112

sub04311-12080

main04311-60150iCXC10,KXC10..5H199403-199511

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12030iCXC10,KXC10..5H198907-199511

31410CYLINDER ASSY, CLUTCH MASTER

main31410-27040iCXC10,KXC10..5H198907-199511

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08321iCXC10,KXC10..5H198907-199511

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iCXC10,KXC10..5H198907-199511

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iCXC10,KXC10..5H198907-199511

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iCXC10,KXC10..5H198907-199511

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22080iCXC10,KXC10..5H199403-199511

main31451-27040iCXC10,KXC10..5H198907-199403

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28012iCXC10,KXC10..5H198907-199511

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iCXC10,KXC10..5H199208-199511

main31454-24010iCXC10,KXC10..5H198907-199208

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-27010iCXC10,KXC10..5H198907-199511

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9615102200

main96151-02200

15 parts on this diagram · 1 diagram in section
