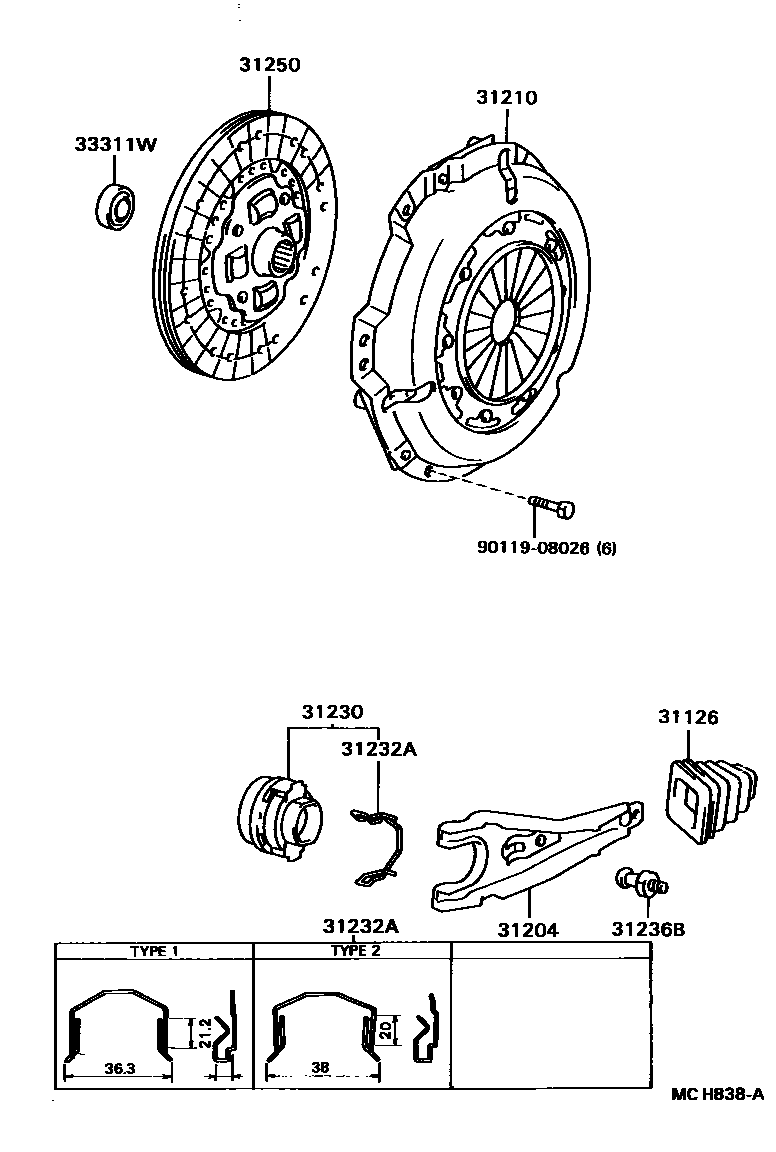

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCXC10..5H199105-199409

main31126-20070iKXC10..5H198907-199511

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCXC10..5H199105-199409

main31204-22040iKXC10..5H198907-199511

31210COVER ASSY, CLUTCH

main31210-12180iKXC10..5H199104-199511

sub31210-12181

main31210-22120iCXC10..5H199105-199409

sub31210-22121

main31210-27011iKXC10198907-199104

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iCXC10,KXC10..5H198907-199511

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iKXC10198907-198911

main31232-35040iCXC10,KXC10..5H198911-199511

31236BSUPPORT, RELEASE FORK

main31236-30060iCXC10,KXC10..5H198907-199511

31250DISC ASSY, CLUTCH

main31250-20116iCXC10..5H199105-199205

main31250-20117iCXC10..5H199205-199409

sub31250-20118

main31250-27070iKXC10..5H198907-199511

sub31250-27071

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iKXC10..5H198907-199511

main90363-12004iCXC10..5H199105-199409

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
