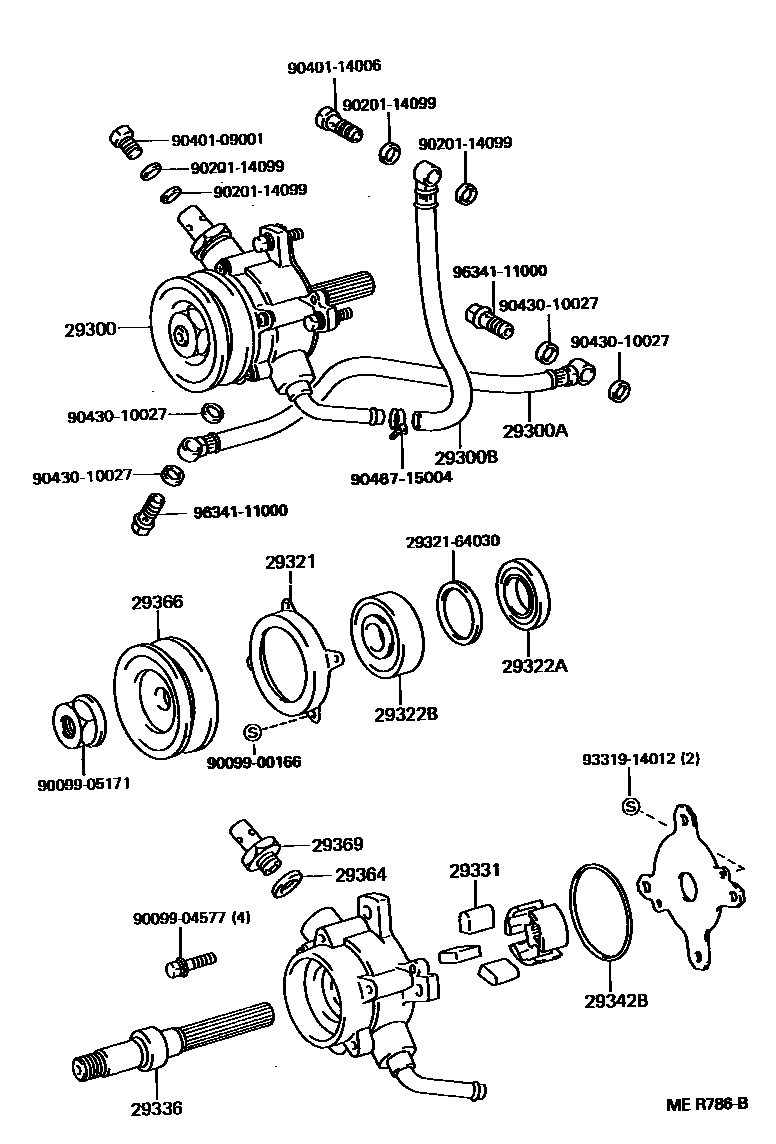

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-64060i2C..CXC10199105-199409

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02099i2C..CXC10199105-199409

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-64010i2C..CXC10199105-199409

29321RING, OIL SEAL STOP, VACUUM PUMP

main29314-64030i2C..CXC10199105-199409

29322ASEAL, VACUUM PUMP OIL

main29341-64030i2C..CXC10199105-199409

29322BBEARING, VACUUM PUMP

main90099-10166i2C..CXC10199105-199409

29331BLADE, VACUUM PUMP, A

main29331-64030×3i2C..CXC10199105-199409

29336SHAFT, VACUUM PUMP

main29336-64031i2C..CXC10199105-199409

29342BRING, O

main29342-64030i2C..CXC10199105-199409

29364WASHER, VACUUM PUMP

main29364-66010i2C..CXC10199105-199409

29366PULLEY, VACUUM PUMP

main29366-64060i2C..CXC10199105-199409

29369VALVE SUB-ASSY, CHECK

main29369-64030i2C..CXC10199105-199409

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040114006

main90401-14006

9043010027

main90430-10027

9046715004

main90467-15004

9331914012

main93319-14012

9634111000

main96341-11000

23 parts on this diagram · 1 diagram in section
