IGNITION COIL & SPARK PLUG / GLOW PLUG

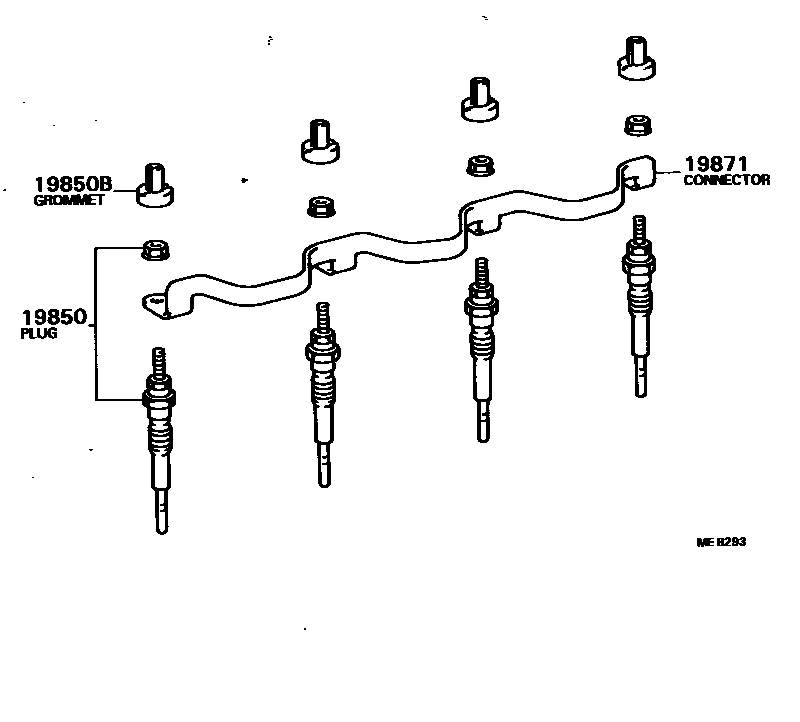

Parts diagram
19850PLUG ASSY, GLOW
main19850-64020i199105-199409
19850BGROMMET, SCREW(FOR GLOW PLUG)
main90189-04024i199105-199409
19871CONNECTOR, GLOW PLUG NO.1
main19871-64022i199105-199405
sub19871-64023
main19871-64023i199405-199409
sub19871-64024

3 parts on this diagram · 3 diagrams in section
