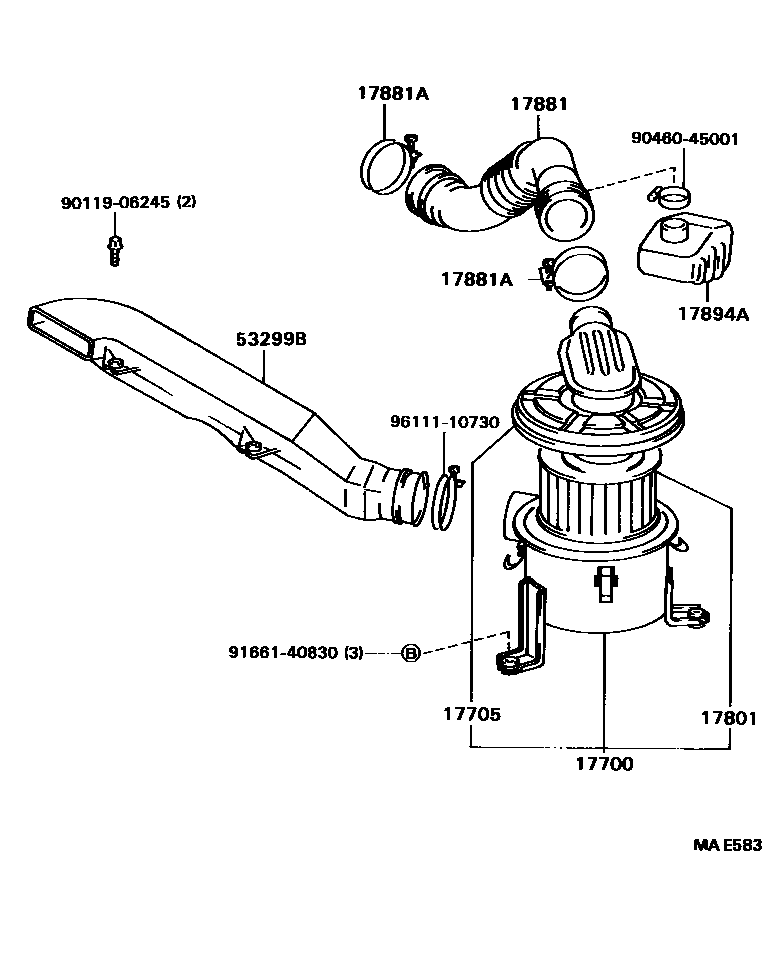

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-13710i5K..KXC10198907-199105

main17700-13750i5K..KXC10199105-199511

main17700-64280i2C..CXC10199105-199409

17705CAP SUB-ASSY, AIR CLEANER

main17705-13170i5K..KXC10198907-199105

main17705-13190i5K..KXC10199105-199511

main17705-64170i2C..CXC10199105-199409

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13010i5K..KXC10198907-199511

main17801-54070i2C..CXC10199105-199409

17881HOSE, AIR CLEANER, NO.1

main17881-13051i5K..KXC10198907-199511

main17881-64250i2C..CXC10199105-199409

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i2C..CXC10199105-199409

main96111-10780i2C..CXC10199105-199409

AIR CLEANER SIDE

17894ARESONATOR, INTAKE AIR, NO.2

main17894-54110i2C..CXC10199105-199409

53299BDUCT, COOL AIR INTAKE

main53207-38010iCXC10199105-199409

main53299-90P80iKXC10198907-199511

9011906245

main90119-06245

9046045001

main90460-45001

9166140830

main91661-40830

9611110730

main96111-10730

11 parts on this diagram · 2 diagrams in section
