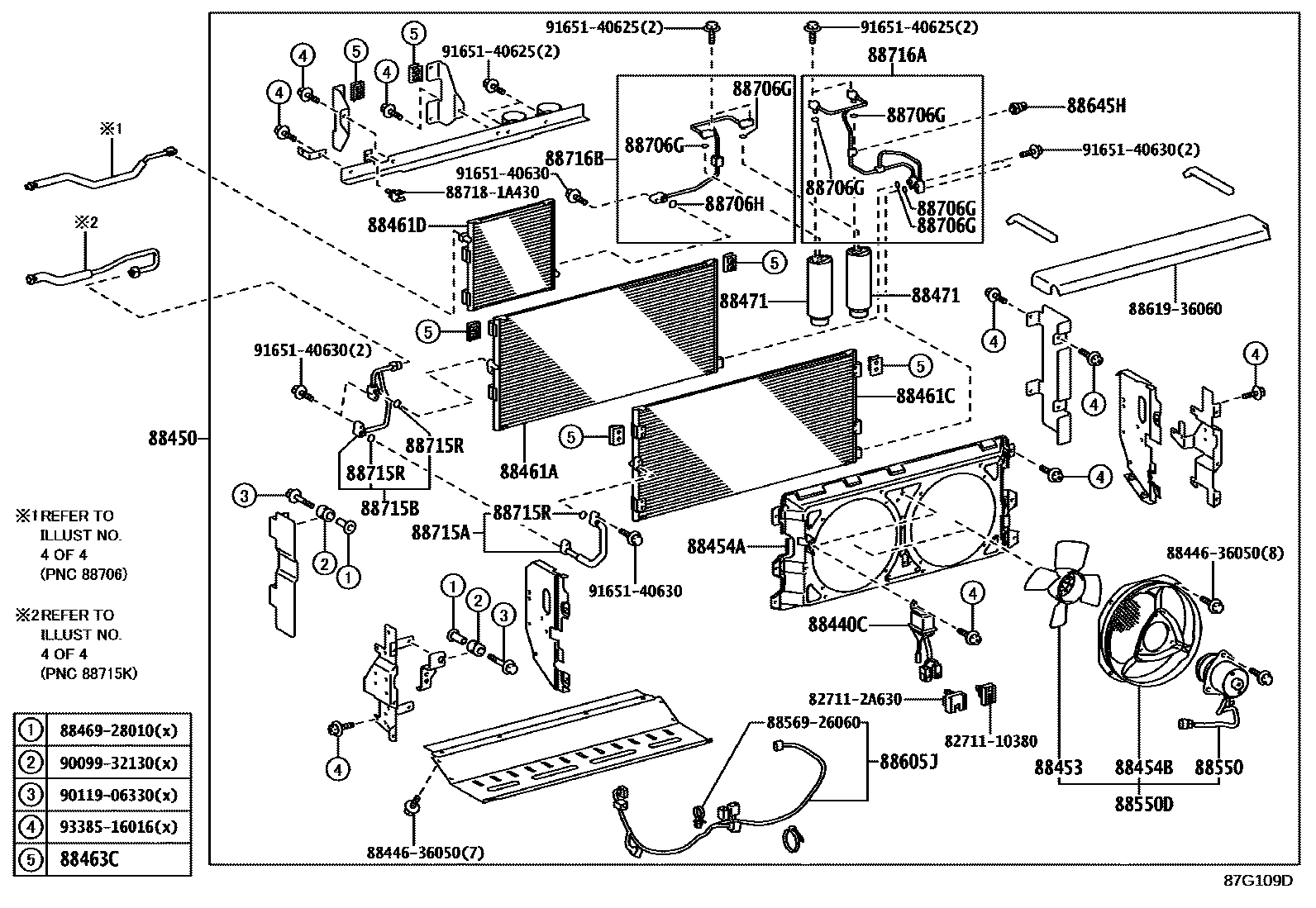

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1������ 0002 1������ 0003 1������������ 0004 1������������ 0005 1��������(���) 0006 1��������(���) 0007 1��������(���) 0008 1��������(���)(1/2) 0009 1��������(���)(2/2)

88440CRELAY ASSY, COOLER CONDENSER FAN

main88440-36150iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88450CONDENSER ASSY, W/RECEIVER

main88450-36370iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88453FAN, COOLING (FOR CONDENSER)

main16361-13030iXZB60,70,80201701-202412

88454ASHROUD, FAN

main88454-36150iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88454BSHROUD, FAN

main88454-36081iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

88461ACORE, COOLER CONDENSER

main88461-36040iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

88461CCORE, COOLER CONDENSER, NO.2

main88461-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88461DCORE, COOLER CONDENSER, NO.3

main88461-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88463BRACKET, COOLER CONDENSER, NO.1

main88688-36490iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

88463CBRACKET, COOLER CONDENSER, NO.4

main88463-37370iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

88471TANK, RECEIVER AIR CONDITIONER

main88471-50020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-36111iXZB60,70,80201701-202412

88550DMOTOR ASSY, BLOWER

main88306-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88605JHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-36470iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88645HSWITCH, PRESSURE NO.1

main88645-60030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88706PIPE SUB-ASSY, LIQUID

main88706-36170iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88706GRING, O(FOR LIQUID TUBE)

main90099-14119iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88706HRING, O, NO.2(FOR LIQUID TUBE)

main90099-14120iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-36740iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88715BPIPE, COOLER REFRIGERANT DISCHARGE, B

main88715-36760iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88715RRING, O(FOR DISCHARGE TUBE)

main90099-14120iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-36A80iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-36A90iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

827112A630WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A630

8844636050BOLT, IDLE PULLEY

main88446-36050

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8856926060CLAMP (FOR COOLER RELAY)

main88569-26060

8861936060PACKING (FOR COOLER DRIVE SHAFT)

main88619-36060

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

9009932130

main90099-32130

9011906330

main90119-06330

9165140625

main91651-40625

9165140630

main91651-40630

9338516016

main93385-16016

35 parts on this diagram · 9 diagrams in section
