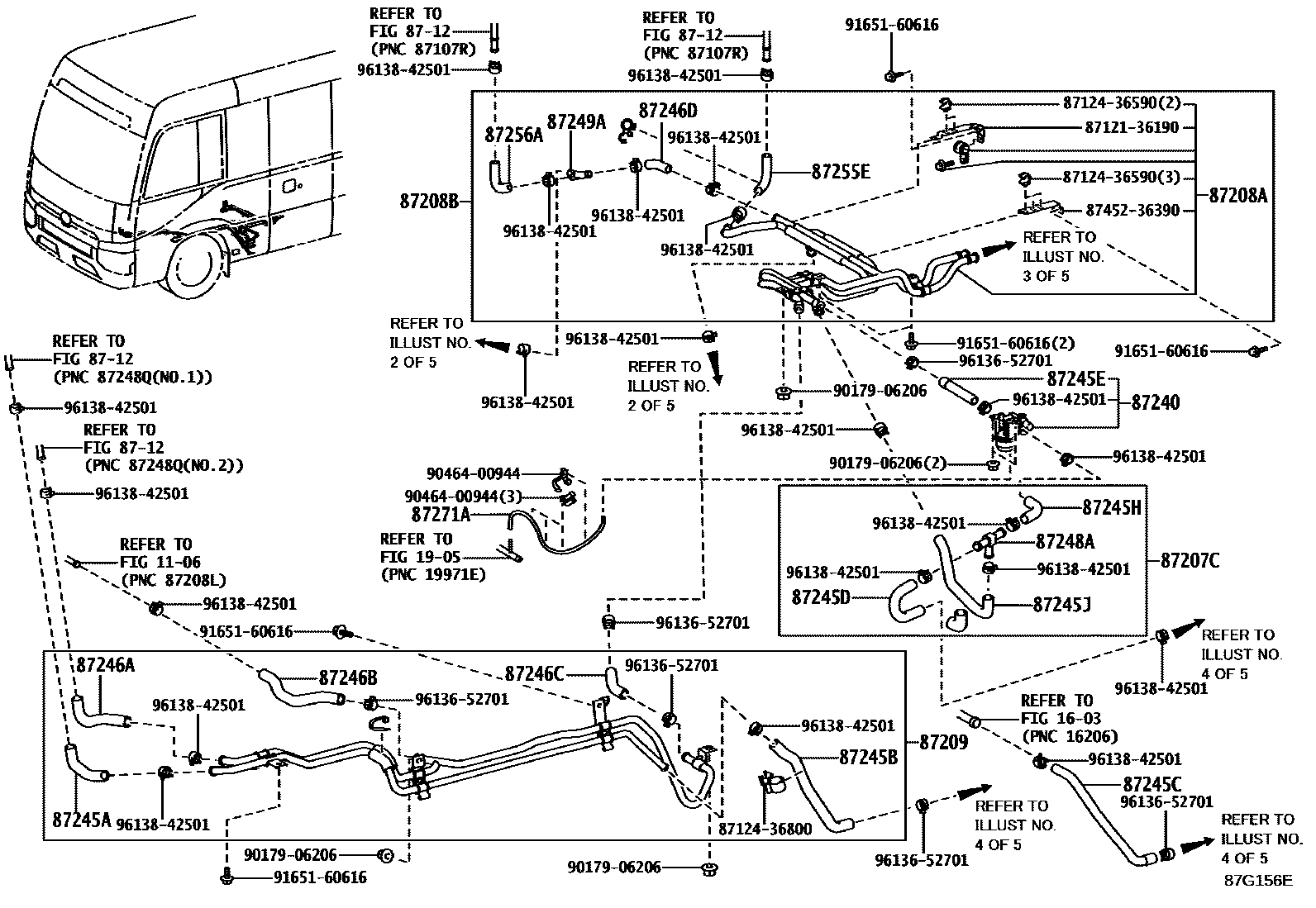

HEATING & AIR CONDITIONING - WATER PIPING

0001 1����1/2,�������� 0002 1����1/2,�������� 0004 1����1/2,�������� 0005 1����1/2,�������� 0006 1����1/2 0007 1����1/2 0009 1����1/2 0010 1����1/2 0011 1����1/2,�������� 0012 1����1/2,�������� 0013 1����1/2,�������� 0014 1����1/2,�������� 0015 1����1/2 0016 1����1/2 0017 1����1/2 0018 1����1/2 0019 1����1/2,�������� 0020 1����1/2 0021 1���� 0022 1����,�������� 0023 1���� 0024 1����,�������� 0025 1���� 0026 1����,�������� 0027 1����2/2,��(����) 0029 1�� 0030 1�� 0031 1�� 0032 1�� 0033 1�� 0034 1��(������) 0035 1�� 0036 1��(����� ������) 0037 1��(����� ������) 0039 1�� 0040 1�� 0041 1�� 0042 1�� 0043 1��(������) 0044 1��(������) 0045 1��(������) 0046 1��(������) 0047 1�� 0048 1��(��������������) 0049 1��(��������������) 0050 1��(�������) 1/2 0051 1��(��������������) 0052 1��(�������) 0053 1��(�������) 1/2 0054 1��(�������) 0055 1��(�������) 0056 1��(�������) 2/2 0057 1��(�������) 0058 1��(�������) 2/2 0059 1��������

1106

1603

1905

8712

87207CPIPE & HOSE SUB-ASSY, WATER C

main87209-36A71iXZB60..GX;XZB70..EX201701-201908

main87209-36E90iXZB60..5F..GX;XZB70..EX,PREM201908-202201

main87209-36A41supersedes 87209-36E90iXZB60..6FC..GX201701

main87209-V4080supersedes 87209-36E90iGDB60..GX202201-202412

87208PIPE SUB-ASSY, HEATER WATER

main87208-36K50supersedes 87208-36K60iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202201

main87208-V4040supersedes 87208-V4030iGDB60,70,80202201-202412

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-36E80iXZB70..(09S,24S)..6FC..LX;XZB60,80..(13S,25S,39S)..6FC..(LX,S)201701

main87208-36F50iXZB70..EX,PREM201701-202201

main87208-36F90iXZB70..29S..GX202201-202312

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-36E70iXZB60..6FC..GX201701

main87208-36E80iGDB60,70,80..LX,S202201-202412

main87209-36G90iXZB70..EX,PREM201701-202201

main87209-36J10iXZB70..5F..GX;XZB70..29S..6FC..GX201701-202201

87209HOSE SUB-ASSY, WATER

main87209-36G80supersedes 87209-36J00iXZB60,70201701-201908

main87209-36K50supersedes 87209-36K60iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202201

main87209-V4050supersedes 87209-V4040iGDB60,70,80202201-202412

87240VALVE ASSY, HEATER WATER

main87240-36120iGDB60,70,80..LX,S202201-202412

main87240-36170iXZB60..5F..GX;XZB70,80..HDCR;XZB70..29S..GX..DCR202201-202312

87245HOSE, HEATER WATER, INLET

main87245-36V60iXZB80..DCR201908

main87245-V4080iGDB60,70202201-202412

87245AHOSE, HEATER WATER, INLET A

87245BHOSE, HEATER WATER, INLET B

main87245-36T80supersedes 87245-36U10iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201908

main87245-3E250supersedes 87245-36A30iXZB60,70201701-201908

87245CHOSE, HEATER WATER ,INLET C

main87245-36A20supersedes 87209-36A80iXZB60,70201701-201908

main87245-36U00iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202201

87245DHOSE, HEATER WATER, INLET D

main87245-36A40iXZB60..GX;XZB70..EX201701-201908

main87245-36A60iXZB60..LX,S;XZB70..GX,LX,S201701-201908

main87245-36M70iXZB60..5F..GX;XZB70..EX,PREM201908-202201

main87245-36T60iXZB60..09S;XZB80..HDCR;XZB60..5F..(LX,S);XZB70..5F..(GX,LX,S);XZB70..(29S,49S)..6FC..(GX,LX,S)201908-202201

main87245-36B20supersedes 87245-36M70iXZB60..5F..GX;XZB70..EX,PREM202201-202312

main87245-36B90supersedes 87245-36T60iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..(LX,S)201701

main87245-V4260supersedes 87245-36M70iGDB60..GX202201-202412

87245EHOSE, HEATER WATER, INLET E

main87245-3C410iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

87245HHOSE, HEATER WATER, INLET H

main87245-3B591supersedes 87245-36A70iXZB60..6FC..GX201701

87245JHOSE, HEATER WATER, INLET J

main87245-36A00supersedes 87245-36A50iXZB60..5F..GX;XZB70..EX,PREM202201-202312

87246HOSE, HEATER WATER, OUTLET

main87245-V4100iGDB80202201-202412

87246AHOSE, HEATER WATER, OUTLET A

87246BHOSE, HEATER WATER, OUTLET B

main87245-3B330iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main87245-36T70supersedes 87245-3B330iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201908

main87245-V4170supersedes 87245-V4130iGDB60,70,80202201-202412

87246CHOSE, HEATER WATER, OUTLET C

87246DHOSE, HEATER WATER, OUTLET D

87248APIPE, HEATER WATER INLET, A

main87248-26880iXZB60..5F..GX;XZB70..EX,PREM202201-202312

87249APIPE, HEATER WATER OUTLET, A

main87248-26880iXZB70..EX,PREM201701-202201

87255EHOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

main87245-36L70iXZB70..S;XZB60..5F..S201701-202201

87256AHOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

main87245-36L80iGDB60..S202201-202412

87271AHOSE, HEATER VACUUM, NO.1

main90999-92002iGDB60,70..GX202201-202412

main90999-92003iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

8712136190BRACKET, HEATER, FRONT RH

main87121-36190

8712436590CLAMP, HEATER

main87124-36590

8712436800CLAMP, HEATER

main87124-36800

8745236390BRACKET, FUEL MAGNET VALVE

main87452-36390

9017906206

main90179-06206

9046400944

main90464-00944

9165160616

main91651-60616

9613652701

main96136-52701

9613842501

main96138-42501

37 parts on this diagram · 55 diagrams in section
