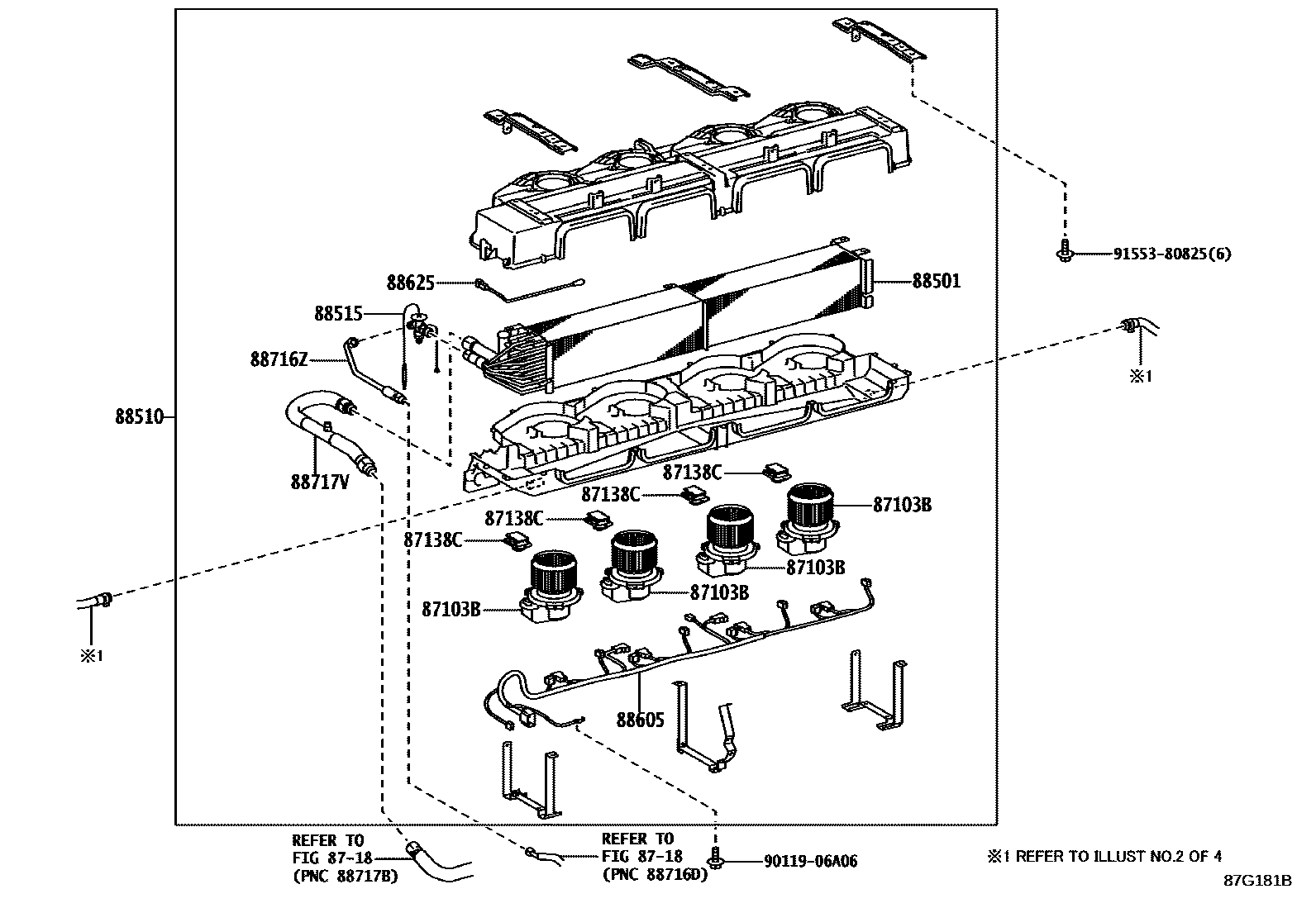

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1���� 0003 1���� 0004 1�������� 0005 1ECU 0006 1ECU 0007 1ECU 0008 1��������

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-36010×4iXZB60,70,80201701-202105

main87103-36011×4iGDB60,70,80202201-202412

87138CRESISTOR, BLOWER

main87138-41020×4iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

8718

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-36120iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

main88501-36130iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

88510UNIT ASSY, COOLER

main88510-36290iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

main88510-36300iGDB70..GX202201-202412

main88510-36310iGDB60..GX202201-202412

88515VALVE, COOLER EXPANSION

main88515-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-36480iXZB60..5F..GX;XZB70,80..HDCR;XZB70..29S..GX..DCR202201-202312

main88605-36490iXZB60..09S;XZB60..5F..(LX,S);XZB70..(29S,49S)..(LX,S)202201-202312

88625THERMISTOR, COOLER, NO.1

main88625-36140iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

88716ZTUBE, LIQUID, NO.1

main88716-36B00iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

88717VTUBE, SUCTION, NO.1

main88717-36510iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

9011906A06

main90119-06A06

9155380825

main91553-80825

12 parts on this diagram · 8 diagrams in section
