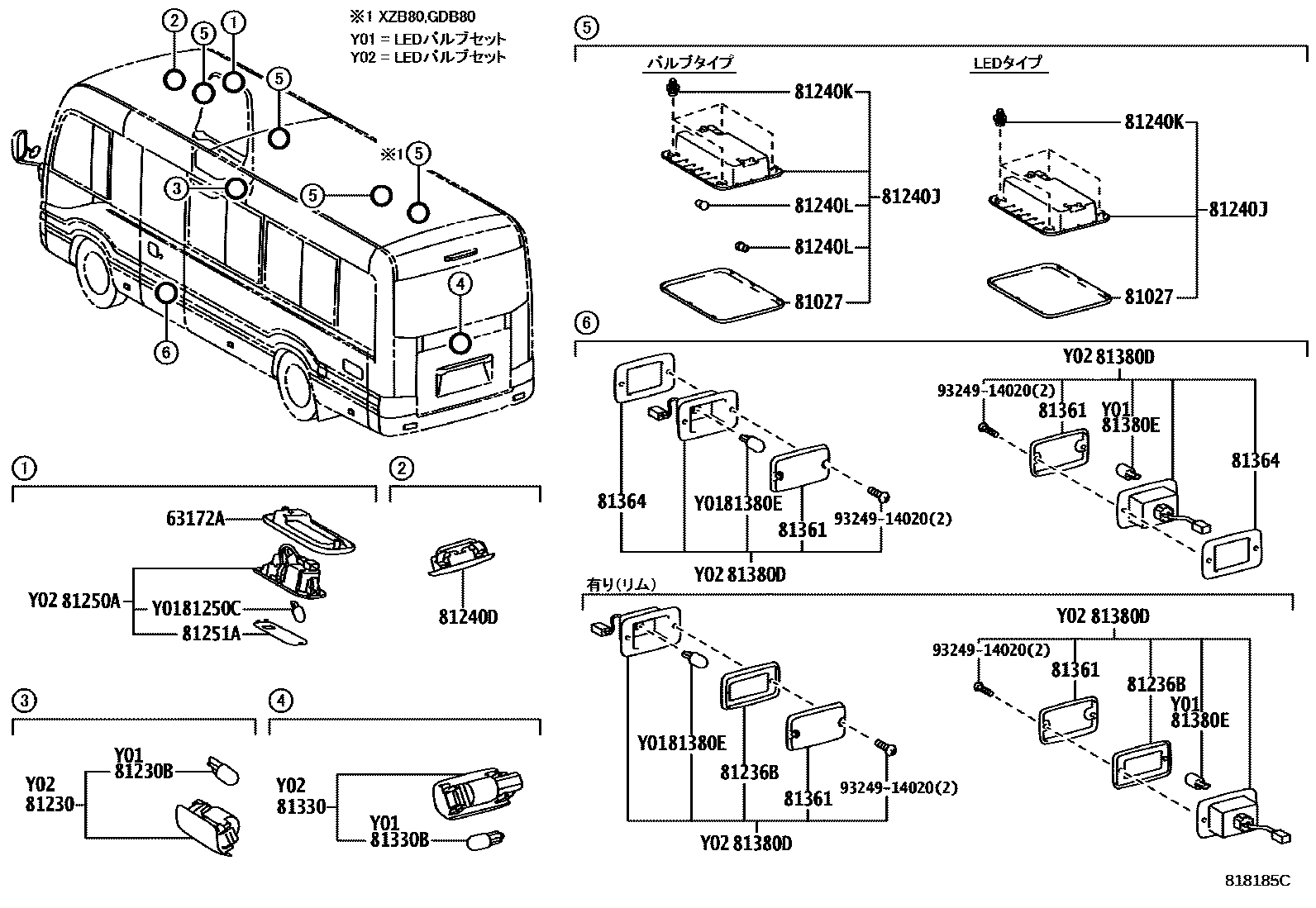

INTERIOR LAMP

63172ABASE, ROOM LAMP

main63172-36030-B0iXZB60..5F..GX;XZB70..29S..GX..DCR;XZB70,80..(EX,GX)..HDCR202201-202312

81027LENS, ROOM LAMP

main81027-36030×3iXZB60..(25S,39S)..6FC;XZB70..(09S,24S)..6FC..DCR201701

81230LAMP ASSY, COURTESY

main81230-30200iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

81230BBULB(FOR COURTESY LAMP)

main90981-12010iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

81236BRIM,STEP LAMP

main81236-14016iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

81240DLAMP ASSY, ROOM, NO.2

main81240-V4010iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202201-202312

81240JLAMP ASSY, ROOM

main81240-36180×3iGDB60,70..24S,25S202201-202401

main81240-36190×3supersedes 81240-36180iGDB80202401-202412

main81240-36170×3iXZB60,70..25S,29S201701-201908

81240KCLIP, ROOM LAMP

main90467-10161×16iXZB80..HDCR202201-202312

81240LBULB, ROOM LAMP

main99132-11100×8iXZB80..HDCR201908-202201

81250ALAMP ASSY, SPOT

main81240-36120-B1iXZB60,70..5F..(EX,GX);XZB70,80..(EX,GX)..HDCR;XZB70..29S..6FC..GX..DCR201701-202201

LT.GRAY,TRIM1#

81250CBULB, SPOT LAMP

main99132-12050iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

81251ALENS, SPOT LAMP

main81251-30120iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81230-30200supersedes 81230-30200iXZB70..29S;XZB60..25S..5F202201-202312

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-12010supersedes 90981-12010iXZB70..29S;XZB60..25S..5F202201-202312

81361LENS, STEP LAMP

main81361-90511iGDB60,70,80202201-202412

81364GASKET, STEP LAMP

main81364-90501iGDB60,70,80..LX,S202201-202412

81380DLAMP ASSY, STEP

main81380-36021iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

main81380-36050iXZB60..5F..GX;XZB70,80..HDCR;XZB70..29S..GX..DCR202201-202312

81380EBULB (FOR STEP LAMP)

main99132-12050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

9324914020

main93249-14020

19 parts on this diagram · 1 diagram in section
