MOULDING

0001 1 0002 1

53105EGARNISH SUB-ASSY, RADIATOR GRILLE

main53105-36010-A0iXZB60,70..EX,GX,LX201701-201807

WHITE,058 ,2DT ,2JP

main53105-36010-A0iXZB60,70..S201701-202101

WHITE,058

main53105-36010-B0iXZB60,70..24S,25S,29S201701-201807

SILVER M.M.,1E7

main53105-36010-E0iXZB60,70..24S,25S,29S201701-201807

BEIGE ME.,4R4

main53105-36010-F0iXZB60,70..S201701-202101

YELLOW,541

main53105-36020-A1iXZB60..09S;XZB70..24S..HDCR;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX)201807-202412

WHITE,058 ,2DT ,2JP

main53105-36020-A1iXZB80..HDCR201908-202412

WHITE,058

main53105-36020-B1iXZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201807-202412

SILVER M.M.,1E7

main53105-36020-E1iXZB60,70..(24S,25S)..6FC..DCR201807-202412

BEIGE ME.,4R4

main53105-36020-F0iXZB70..S;XZB60..5F..S202101-202412

YELLOW,541

53141JGARNISH, RADIATOR GRILLE, NO.1

main53141-36020-A0iXZB70..S;XZB60..5F..S201908-202412

WHITE,058

main53141-36020-A0iXZB60..09S;XZB70..24S..HDCR;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX)201807-202412

WHITE,058 ,2DT ,2JP

main53141-36020-B0iGDB60,70..24S,25S201807-202412

SILVER M.M.,1E7

main53141-36020-E0iGDB60,70..24S,25S201807-202412

BEIGE ME.,4R4

main53141-36020-F0iXZB60..6FC..S202101-202412

YELLOW,541

53142EGARNISH, RADIATOR GRILLE, NO.2

main53142-36010-A0iGDB60,70..GX,LX201807-202412

WHITE,058 ,2DT ,2JP

main53142-36010-A0iXZB80..HDCR201908-202412

WHITE,058

main53142-36010-B0iXZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201807-202412

GRAY METALLIC,1E7 ,4R4

main53142-36010-B0iXZB70..S;XZB60..5F..S202101-202412

GRAY METALLIC,541

53181ACOVER, HEADLAMP, RH

main53107-36010-A0iXZB60,80..(13S,39S)..6FC..DCR201701-202412

WHITE,058 ,2DT ,2JP

main53107-36010-A0iXZB60..09S;XZB70..24S..HDCR;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX)201701-202412

WHITE,058

main53107-36010-B0iXZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR201701-202412

SILVER M.M.,1E7

main53107-36010-E0iGDB60,70..24S,25S201701-202412

BEIGE ME.,4R4

main53107-36010-F0iGDB60..S201701-202412

YELLOW,541

53182ACOVER, HEADLAMP, LH

main53108-36090-A0iXZB60..25S..6FC;XZB70..(09S,24S)..6FC..DCR201701-202412

WHITE,058 ,2DT ,2JP

main53108-36090-A0iXZB60..09S;XZB70..24S..HDCR;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX)201701-202412

WHITE,058

main53108-36090-B0iXZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR201701-202412

SILVER M.M.,1E7

main53108-36090-E0iGDB60,70..24S,25S201701-202412

BEIGE ME.,4R4

main53108-36090-F0iXZB70..S;XZB60..5F..S201701-202412

YELLOW,541

75039CLIP SUB-ASSY, OUTSIDE MOULDING

main62217-13010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

main90467-09206iXZB60,70,80201701-201910

main90467-10167iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201911-202412

75039CCLIP SUB-ASSY, OUTSIDE MOULDING, NO.1

main62217-13010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

75505GARNISH SUB-ASSY, ROOF SIDE, FRONT RH

main75551-36010iXZB60..09S;XZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202412

main75551-36040-A0iXZB60..5F..LX;XZB70..29S..LX201701-202412

WHITE,058

main75551-36040-A0iGDB60,80..13S,39S201701-202412

WHITE,058 ,2DT ,2JP

main75551-36040-B0iXZB60,70..5F..LX;XZB70..29S..6FC..LX201701-202401

SILVER M.M.,1E7

main75551-36040-E0iXZB60,70..5F..LX;XZB70..29S..6FC..LX201701-202401

BEIGE ME.,4R4

main75551-36040-F0iGDB60..S201701-202412

YELLOW,541

75551HMOULDING, ROOF DRIP SIDE, RH

main75551-36021iXZB60..5F..LX;XZB70..29S..LX201701-202201

main75551-36021iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main75551-36021iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main75551-36021iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202412

75552HMOULDING, ROOF DRIP SIDE, LH

main75552-36021iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main75552-36021iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main75552-36021iXZB60..5F..LX;XZB70..29S..LX201701-202201

main75552-36021iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202412

75561FCLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020iXZB60..6FC..GX201701-202201

main75561-52020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main75561-52020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main75561-52020iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202412

75631DMOULDING, SIDE PANEL, LOWER NO.1 RH

main75631-36040iXZB60..5F..GX;XZB70,80..HDCR;XZB70..29S..GX..DCR201701-202412

75633DMOULDING, SIDE PANEL, LOWER NO.3 RH

main75633-36040iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202412

75635DMOULDING, SIDE PANEL, LOWER NO.5 RH

main75635-36040iXZB70..HDCR;XZB70..29S..GX..DCR201701-202412

main75635-36050iXZB80..HDCR;XZB60..5F..GX201701-202412

75636DMOULDING, SIDE PANEL, LOWER NO.6 RH

main75636-36030iXZB80..HDCR201908-202312

main75636-36050iXZB70..HDCR;XZB60..5F..GX;XZB70..29S..GX..DCR201701-202412

75641DMOULDING, SIDE PANEL, LOWER NO.1 LH

main75641-36040iGDB60,70..GX201701-202412

75644DMOULDING, SIDE PANEL, LOWER NO.4 LH

main75642-36040iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202412

75645DMOULDING, SIDE PANEL, LOWER NO.5 LH

main75745-36040iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202412

75646DMOULDING, SIDE PANEL, LOWER NO.6 LH

main75644-36040iXZB80..HDCR201908-202312

main75644-36060iXZB70..HDCR;XZB70..29S..GX..DCR201701-202412

main75644-36070iGDB60..GX201701-202412

75648DMOULDING, SIDE PANEL, LOWER NO.8 LH

main75646-36040iXZB80..HDCR201908-202312

main75646-36050iXZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202412

6295550010SEAL, ROOF SIDE VENT

main62955-50010

9016740057

main90167-40057

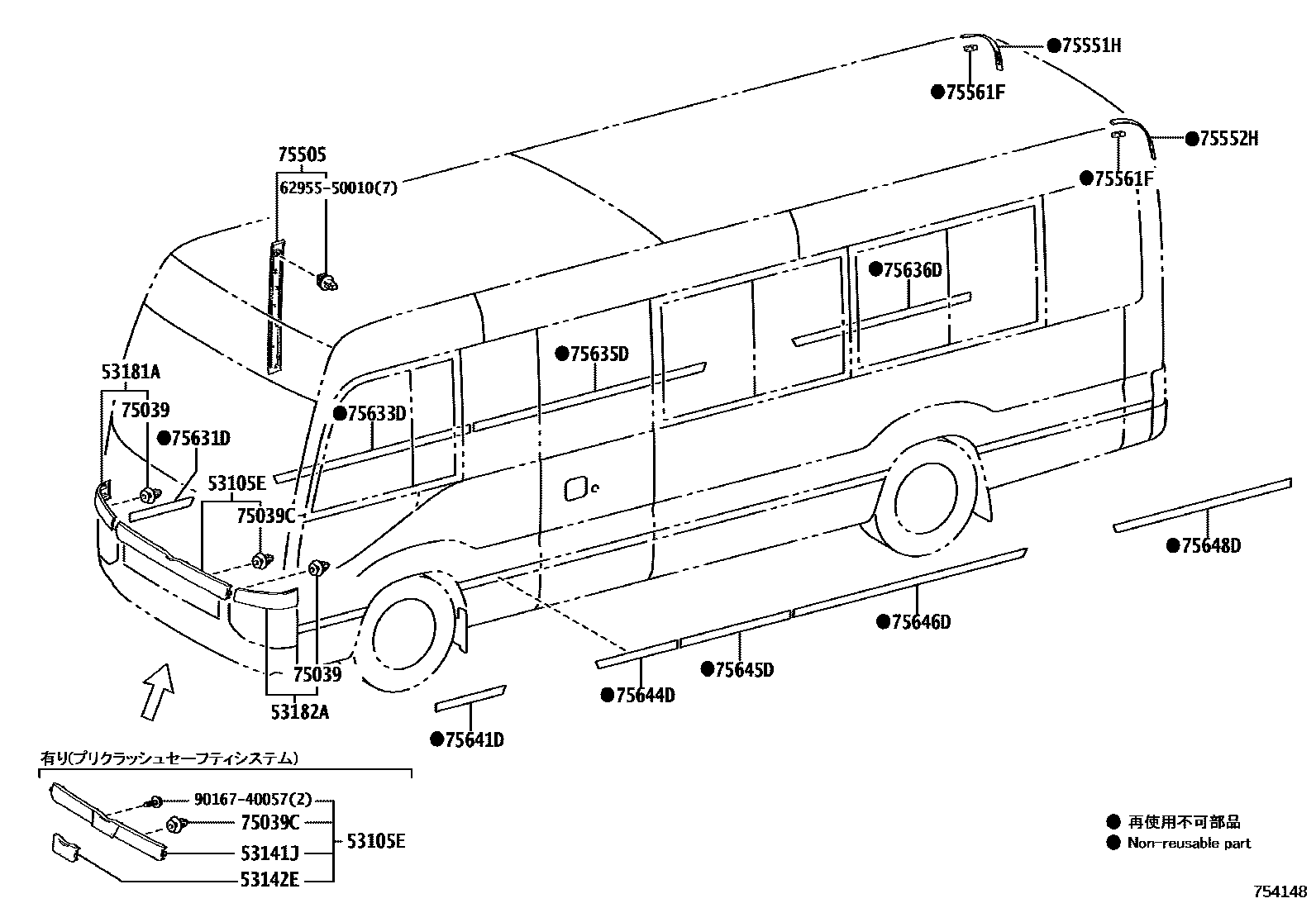

22 parts on this diagram · 2 diagrams in section
