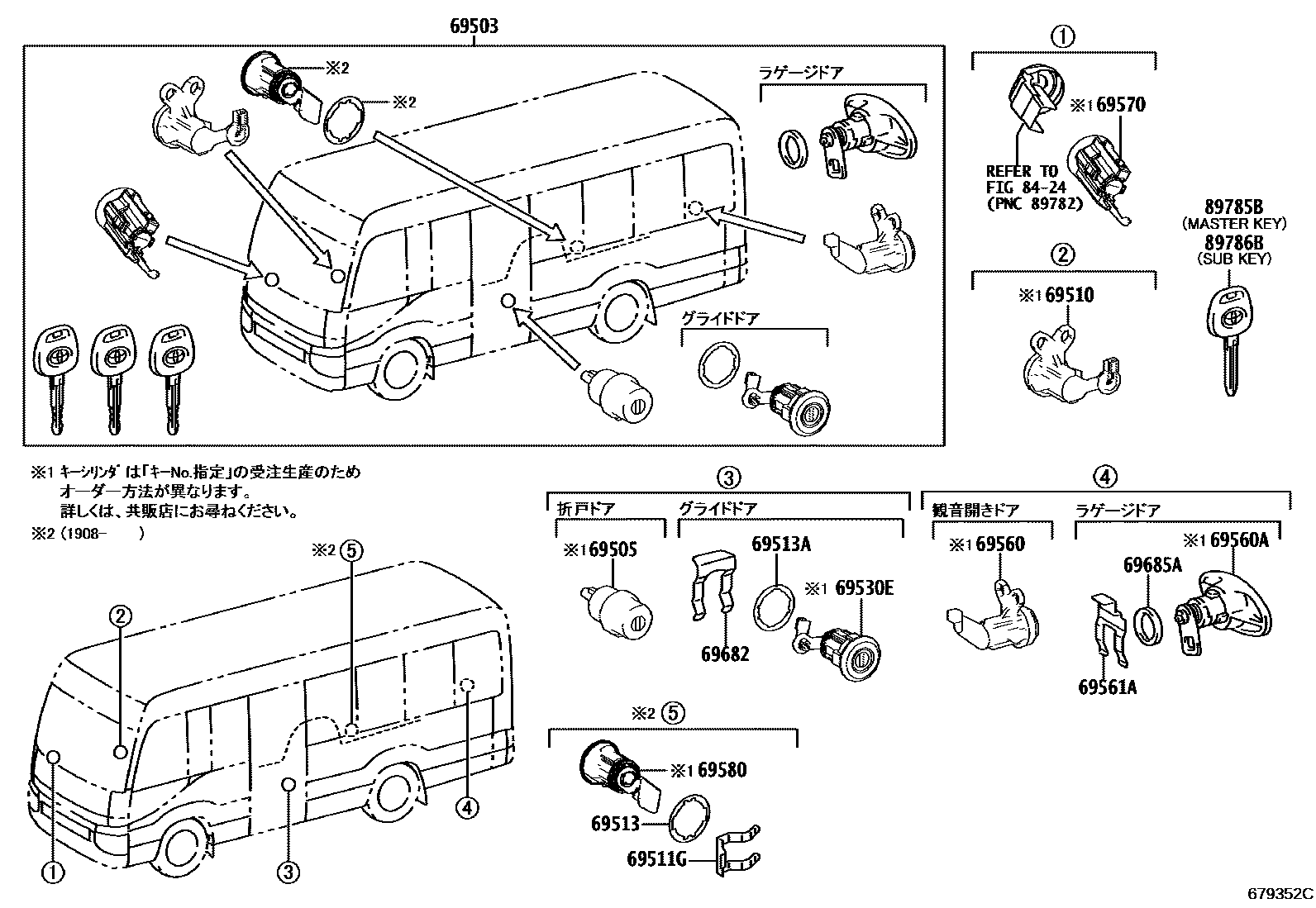

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-36830iXZB60,70..S201701-201908

main69005-36840iXZB60,70..(25S,29S)..LX201701-201908

main69005-36840iXZB60,70..(25S,29S)..LX201701-201908

main69005-36840iXZB60,70..(25S,29S)..6FC..LX201701-201908

main69005-36850iXZB60,70..(25S,29S)..LX201701-201807

main69005-36850iXZB60,70..(25S,29S)..LX201701-201807

main69005-36850iXZB60,70..(25S,29S)..LX201701-201807

main69005-36850iXZB70..24S..LX201701-201908

main69005-36850iXZB60,70..(09S,24S)..LX201701-201908

main69005-36850iXZB60,70..(09S,24S)..LX201701-201908

main69005-36860iXZB60,70..25S,29S201701-201908

main69005-36870iXZB60,70..09S,24S201701-201908

main69005-36870iXZB60,70..25S,29S201701-201807

main69005-36D70iXZB60..6FC..S201908-202412

main69005-36D80iXZB60..25S..6FC..LX201908-202412

main69005-36D80iGDB60..25S..LX201908-202412

main69005-36D80iGDB60..25S..LX201908-202412

main69005-36D80iGDB70..24S..LX202401-202412

main69005-36D80iGDB70..24S..LX202401-202412

main69005-36D80iGDB70..24S..LX202401-202412

main69005-36D90iXZB70..24S..6FC..LX201908-202412

main69005-36D90iXZB70..24S..6FC..LX201908-202412

main69005-36D90iXZB70..24S..6FC..LX201908-202412

main69005-36E00iXZB60..25S..5F;XZB70..29S..(GX,LX)201908-202412

main69005-36E00iGDB70..24S..LX202401-202412

main69005-36E10iXZB60..09S;XZB80..HDCR;XZB70..24S..5F201908-202412

main69005-36E20iXZB60..25S..6FC201908-202412

main69005-36E20iXZB70..29S..EX201908-202412

main69005-36E20iXZB70..29S..EX201908-202412

main69005-36E20iXZB70..29S..EX201908-202412

main69005-36E20iGDB70..GX202401-202412

main69005-36E20iGDB70..GX202401-202412

main69005-36E20iGDB70..GX202401-202412

main69005-36E30iXZB80..HDCR201908-202412

main69005-36E30iXZB80..HDCR201908-202412

main69005-36E30iXZB80..HDCR201908-202412

main69005-36E30iXZB80..HDCR201908-202412

main69005-36E30iGDB70..GX202401-202412

69505CYLINDER SUB-ASSY, CENTER DOOR LOCK

main69505-36010iXZB70..S;XZB60..5F..S201701-202412

main69505-36010iXZB70..S;XZB60..5F..S201701-202412

main69505-36010iXZB60..09S;XZB60..5F..LX;XZB70..29S..LX201701-202412

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-36031iGDB60,70,80201701-202412

69511GRETAINER, FUEL FILLER OPENING CYLINDER

main69511-32020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202201

main69511-32020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202201

main69511-32020iXZB60..5F..LX;XZB70..29S..LX201908-202201

main69511-32020iGDB60,70,80202201-202412

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202412

69513APAD, DOOR CYLINDER

main69513-32010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201701-202412

69530ECYLINDER ASSY, GLIDE DOOR LOCK

main69530-36020iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201701-202412

main69530-36030iXZB70..29S;XZB80..HDCR;XZB60..25S..5F201908-202412

main69530-36030iXZB70..EX,PREM201908-202412

main69530-36030iXZB70..EX,PREM201908-202412

main69530-36030iXZB70..EX,PREM201908-202412

main69530-36030iGDB70..GX202401-202412

69560CYLINDER ASSY, BACK DOOR LOCK

main69520-36021iXZB60,70..25S,29S201701-201807

main69520-36021iXZB60..09S;XZB70..24S..5F;XZB70,80..(13S,21S,24S)..HDCR201701-202412

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-36011iXZB70..29S;XZB60..25S..5F201701-202412

main69560-36011iGDB70..24S202401-202412

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-33010iXZB70..29S;XZB60..25S..5F201701-202201

main69561-33010iXZB70..29S;XZB60..25S..5F201701-202201

main69561-33010iXZB70..29S;XZB60..25S..5F201701-202201

main69561-33010iXZB70..29S;XZB60..25S..5F202201-202412

main69561-33010iGDB70..24S202401-202412

main69561-33010iGDB70..24S202401-202412

main69561-33010iGDB70..24S202401-202412

main69561-33010iGDB70..24S202401-202412

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

69580CYLINDER ASSY, FUEL FILLER OPENING LID

main69580-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202412

69682RETAINER, LOCK CYLINDER

main69511-89101iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

main69511-89101iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

main69511-89101iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

main69511-89101iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

main69511-89101iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

main69511-89101iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201701

main69511-89101iXZB60..09S;XZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR202201-202412

69685APAD, LOCK CYLINDER

main69685-36010iXZB70..29S;XZB60..25S..5F201701-202412

main69685-36010iGDB70..24S202401-202412

main69685-36010iGDB70..24S202401-202412

main69685-36010iGDB70..24S202401-202412

main69685-36010iGDB70..24S202401-202412

main69685-36010iGDB70..24S202401-202412

main69685-36010iGDB70..24S202401-202412

8424

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

17 parts on this diagram · 1 diagram in section
