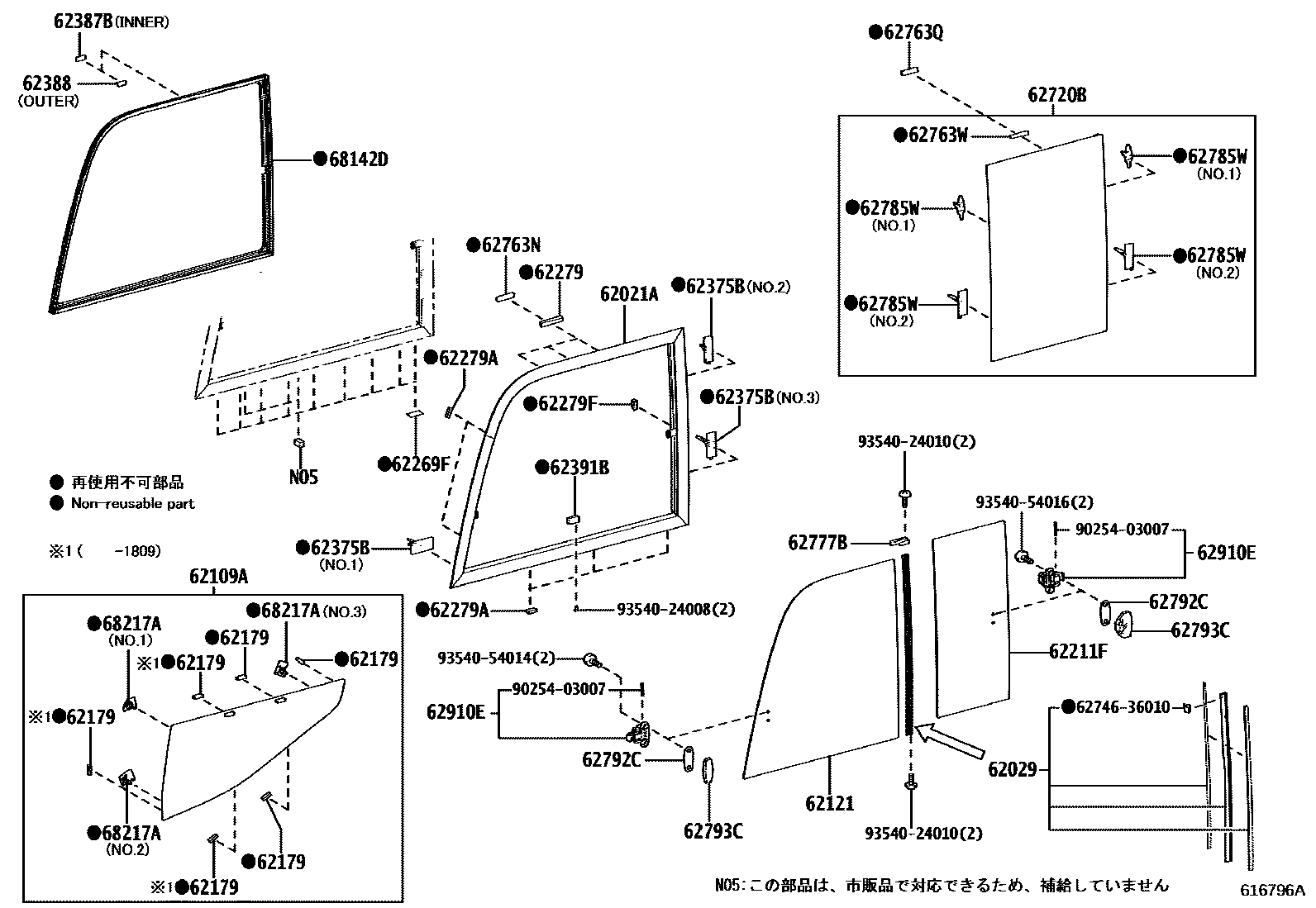

SIDE WINDOW

0001 1��������(����������) 0002 1�� NO.1 0003 1�� NO.2(���������),����������0004 1�� NO.2(���������),����������0005 1�� NO.2(�������) 0006 1�� NO.3(���������) 0007 1�� NO.3(���������) 0008 1�� NO.3(�������) 0009 1�� NO.3 0010 1�� NO.4

62021AFRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER LH

main62021-36040iGDB60..S202201-202412

main62021-36070iXZB60,70..S201701-201908

62029FRAME SUB-ASSY, SIDE WINDOW, CENTER LH

main62029-36070iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

62109AGLASS SUB-ASSY, SIDE LOWER WINDOW, LH

main62109-36100iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

62121GLASS, FRONT SIDE WINDOW, FRONT LH

main62121-36070iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

62179DAM, SIDE LOWER WINDOW

main68294-26030×3iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201809

62211FGLASS, SIDE WINDOW, REAR LH

main62221-36160iXZB60..09S;XZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR202201-202312

main62221-36170iXZB70..S;XZB60..5F..S201908-202201

62269FFILM, SIDE WINDOW FRAME

main62269-90K01×9iGDB60,70,80202201-202412

62279SPACER, SIDE WINDOW FRAME, UPPER

main62763-36020×3iGDB60,70,80202201-202412

62279ASPACER, SIDE WINDOW FRAME

main62279-36120×5iXZB60,70201701-201810

main62279-36130×5iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201810

62279FSPACER, SIDE WINDOW FRAME

main62279-36130iGDB60,70,80202201-202412

62375BCLIP, SIDE WINDOW, NO.1

main62375-36050iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main62375-36060iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main62375-36070iGDB60,70,80202201-202412

62387BSEAL, SIDE WINDOW, NO.3

main62387-V4020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

62388SEAL, SIDE WINDOW, NO.4

main62388-V4010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

62391BSTOPPER, SIDE WINDOW, NO.1 FRONT LH

main62391-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

62720BWINDOW ASSY, SIDE, FRONT LH

main62203-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main62203-V4010iXZB60..5F;XZB60..09S;GDB60,70,80;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202212-202312

62763NRETAINER, SIDE WINDOW FRAME

main62763-36010×3iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

62763QRETAINER, SIDE WINDOW FRAME

main62763-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

62763WRETAINER, SIDE WINDOW FRAME

main62763-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

62777BCAP, SIDE WINDOW CENTER SASH

main62777-36080iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

62785WSPACER, SIDE WINDOW GLASS

main62785-36020iGDB60,70,80202201-202412

main62785-36030iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

main62785-36040×2iGDB60,70,80202201-202412

62792CPACKING, SIDE WINDOW LOCK, LH

main62792-95A00×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

62793CRETAINER, SIDE WINDOW LOCK, LH

main62793-36010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

main62793-95J00iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

62910ELOCK ASSY, SIDE WINDOW

main62910-36010×2iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

68142DRUN, SIDE FRONT WINDOW, LH

main68142-36040iGDB60,70,80..GX,LX202201-202412

main68142-36050iGDB60..S202201-202412

68217APIN, SIDE WINDOW , NO.1

main68217-36080iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main68217-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main68217-36100iGDB60,70,80202201-202412

6274636010WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1

main62746-36010

9025403007

main90254-03007

9354024008

main93540-24008

9354024010

main93540-24010

9354054014

main93540-54014

9354054016

main93540-54016

31 parts on this diagram · 10 diagrams in section
