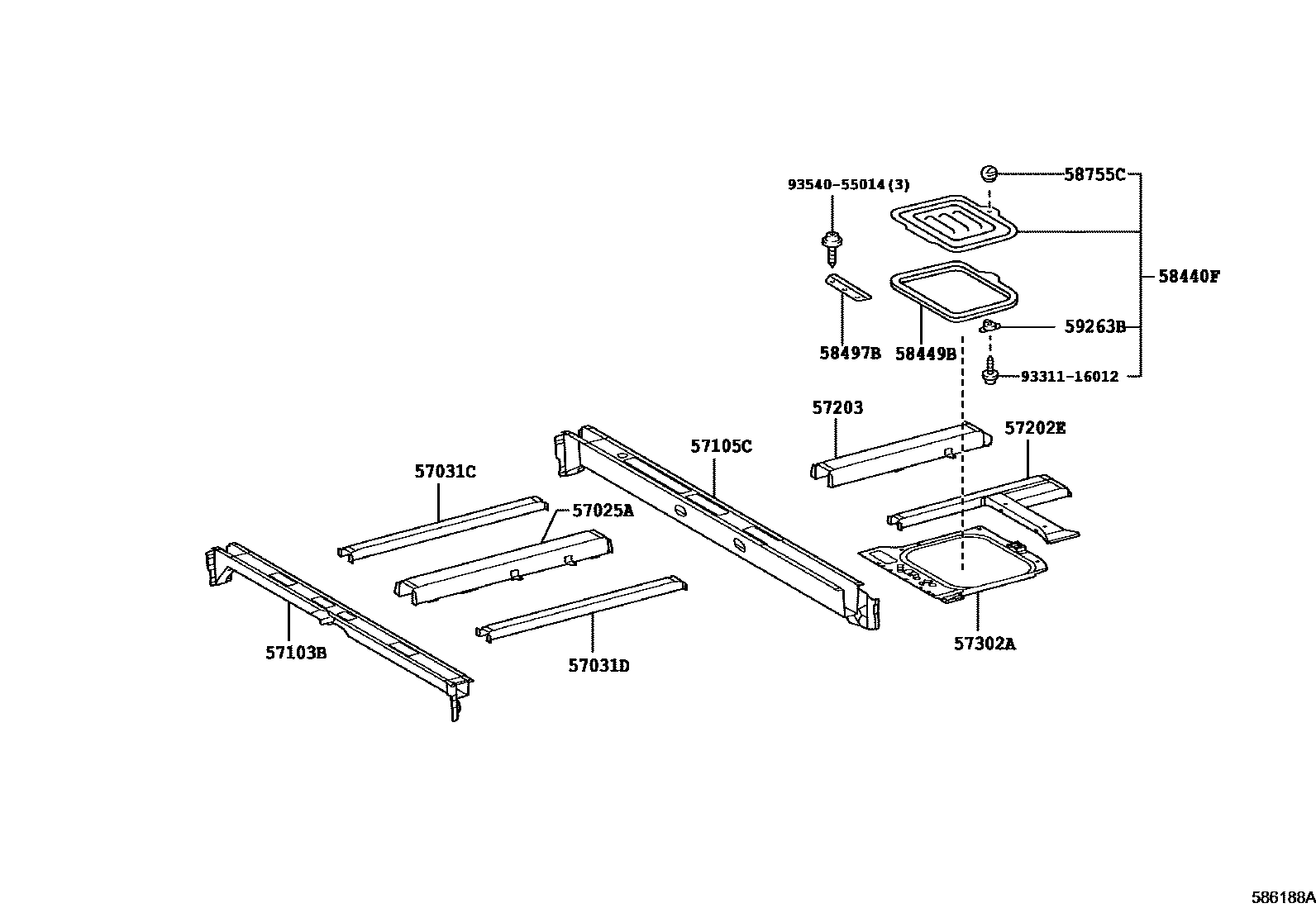

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1������� 1/2 0003 1������� 1/2 0005 1������� 1/2 0006 1������� 1/2 0007 1������� 1/2 0008 1������� 2/2 0009 1������� 2/2 0010 1������� 0011 1�������� 1/3 0012 1�������� 2/3 0013 1�������� 2/3 0014 1�������� 3/3 0015 1�������� 0016 1�������� 0017 1�������� 0018 1��������

57025ASTRENGTH, SUB-ASSY, CROSSMEMBER FLOOR, NO.2 SUB

main57025-36170iGDB60..S201701-202408

sub57025-V4020

main57025-36180iXZB60,70..EX,GX,LX201701-202412

main57025-36200iXZB60..25S..LX201701-201807

main57025-36200iXZB60..25S..LX201701-201807

main57025-36200iXZB60..25S..LX201701-201807

main57025-36200iXZB60..25S..6FC..LX201701-201807

main57025-36230iXZB60..6FC..S201908-202312

main57025-36240iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201908-202312

main57025-V4010iXZB70..PREM202006-202312

main57025-V4020iGDB60..S202408-202412

57031CSTRENGTH SUB-ASSY, ANCHOR SIDE, NO.1

main57031-36120iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

57031DSTRENGTH SUB-ASSY, ANCHOR SIDE, NO.2

main57031-36050iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

57103BCROSSMEMBER SUB-ASSY, FLOOR, NO.3

main57103-36350iXZB60,70..5F..(EX,GX,LX)201701-201709

sub57103-36351

main57103-36351iXZB60,70..5F..(GX,LX)201710-202312

main57103-36360iXZB60,70..5F..LX201701-201709

sub57103-36361

main57103-36360iXZB60,70..5F..LX201701-201709

sub57103-36361

main57103-36361iXZB60,70..5F..S201710-202312

main57103-36361iXZB60,70..5F..S201710-202312

main57103-36420iXZB60,70..6FC..(EX,GX,LX)201701-201709

sub57103-36421

main57103-36421iGDB60,70,80..GX,LX201710-202412

main57103-36430iXZB60,70..(24S,25S,29S)..6FC..LX201701-201709

sub57103-36431

main57103-36430iXZB60,70..(24S,25S,29S)..6FC..LX201701-201709

sub57103-36431

main57103-36430iXZB60,70..(24S,25S,29S)..6FC..LX201701-201709

sub57103-36431

main57103-36431iXZB60..6FC..S201710-202412

main57103-36431iXZB60..25S..6FC..LX;XZB70..(09S,24S)..6FC..LX201710-202412

main57103-36431iXZB60..25S..6FC..LX;XZB70..(09S,24S)..6FC..LX201710-202412

57105CCROSSMEMBER SUB-ASSY, FLOOR, NO.5

main57105-36370iXZB70201701-201709

main57105-36371iXZB70201710-201908

main57105-36372iXZB80..HDCR201908-202412

main57105-36390iXZB70..(24S,29S)..6FC..LX201701-201709

main57105-36390iXZB70..(24S,29S)..6FC..LX201701-201709

main57105-36391iXZB70..(24S,29S)..6FC201710-201908

main57105-36391iXZB70..(24S,29S)..6FC201710-201908

main57105-36391iXZB70..(24S,29S)..6FC201807-201908

main57105-36392iXZB70..24S..HDCR;XZB70..(21S,29S)..6FC201908-202412

main57105-36392iXZB70..29S..6FC..LX201908-202412

main57105-36392iXZB70..29S..6FC..LX201908-202412

main57105-36440iXZB60..25S..6FC..LX201701-201709

sub57105-36441

main57105-36440iXZB60..25S..LX201701-201709

sub57105-36441

main57105-36440iXZB60..25S..LX201701-201709

sub57105-36441

main57105-36441iXZB60..25S..6FC..LX201710-201908

sub66308-36010

main57105-36441iXZB60..25S..6FC..LX201710-201908

sub66308-36010

main57105-36441iXZB60..25S..LX201710-201908

sub66308-36010

main57105-36442iXZB60..5F..S201908-202412

main57105-36442iXZB60..5F..S201908-202412

main57105-36442iXZB60..6FC..S201908-202412

main57105-36450iXZB60..GX,LX201701-201709

main57105-36451iXZB60..GX,LX201710-201908

sub66308-36020

main57105-36452iXZB60..09S;XZB60..25S..5F201908-202412

main57105-36460iXZB60..25S..6FC201701-201709

main57105-36460iXZB60..GX,LX201701-201709

main57105-36460iXZB60..GX,LX201701-201709

main57105-36461iXZB60..GX,LX201710-201908

sub66308-36030

main57105-36461iXZB60..GX,LX201710-201908

sub66308-36030

main57105-36461iXZB60..25S201807-201908

sub66308-36030

main57105-36461iXZB60..25S201807-201908

sub66308-36030

main57105-36461iXZB60..25S201710-201807

sub66308-36030

main57105-36470iXZB60..25S..6FC201908-202412

main57105-36470iXZB60..25S..6FC201908-202412

main57105-36470iXZB60..25S..5F201908-202412

main57105-36470iGDB60..25S201908-202412

57202ESTRENGTH SUB-ASSY, ANCHOR, NO.2

main57202-36260iXZB60,70..5F..LX;XZB70..29S..6FC..LX201701-202412

main57202-36260iXZB60..25S..LX201701-201807

main57202-36260iXZB60..25S..LX201701-201807

main57202-36260iXZB60..25S..LX201701-201807

main57202-36260iXZB60..25S..LX201701-201807

main57202-36260iXZB70..S;XZB60..5F..S201701-202412

main57202-36260iXZB70..S;XZB60..5F..S201701-202412

main57202-36290iXZB60..09S;XZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR201701-202412

57203STRENGTH SUB-ASSY, ANCHOR NO.3

main57203-36190iGDB60..S201701-202412

main57203-36200iXZB60,70..EX,GX,LX201701-202412

main57203-36220iXZB60..25S..LX201701-201807

main57203-36220iXZB60..25S201701-201807

main57203-36220iXZB60..25S201701-201807

main57203-36220iXZB60..25S201701-201807

main57203-36280iXZB60..5F;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201908-202312

57302APANEL SUB-ASSY, BATTERY BOX

main57302-36130iXZB60,70..(24S,25S,29S)..LX201701-201908

main57302-36130iXZB60..25S..LX201701-201807

main57302-36130iXZB60..25S..LX201701-201807

main57302-36130iXZB60..25S..LX201701-201807

main57302-36130iXZB60,70..S201701-201908

main57302-36130iXZB60,70..S201701-201908

main57302-36131iXZB60..6FC..S201908-202412

main57302-36131iXZB60,70..5F..LX;XZB70..29S..6FC..LX201908-202412

main57302-36131iXZB60,70..5F..LX;XZB70..29S..6FC..LX201908-202412

main57302-36140iXZB60,70..EX,GX,LX201701-201908

main57302-36141iXZB60..09S;XZB70..29S..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201908-202412

main57302-V4010iXZB70..PREM202006-202312

58440FCOVER ASSY, BATTERY SERVICE HOLE

main58440-36100-B0iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..29S,49S202201-202312

MD.GRAY,TRIM20

main58440-36100-B0iXZB60..09S;XZB80..HDCR;XZB60,70..5F..(GX,LX,S);XZB70..(29S,49S)..6FC..(GX,LX,S)201701-202412

MD.GRAY,TRIM1#

main58440-36100-B0iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

main58440-36100-E0iXZB70..EX202201-202312

DK. BROWN,TRIM20

main58440-36100-E0iXZB70..EX201701-202312

DK. BROWN,TRIM1#

58449BPACKING, BATTERY SERVICE HOLE COVER

main58733-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

58497BPLATE, BATTERY SERVICE HOLE COVER LOCK

main58497-36010-B2iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..29S,49S201701-202412

MD.GRAY,TRIM1#

main58497-36010-B2iXZB70..PREM202201-202312

MD.GRAY,TRIM20

main58497-36010-B2iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

main58497-36010-E1iXZB70..EX201701-202312

DK. BROWN,TRIM1#

main58497-36010-E1iXZB70..EX202201-202312

DK. BROWN,TRIM20

58755CHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

59263BHOOK, ENGINE COVER LOCK

main59263-95D00iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

9331116012

main93311-16012

9354055014

main93540-55014

15 parts on this diagram · 16 diagrams in section
