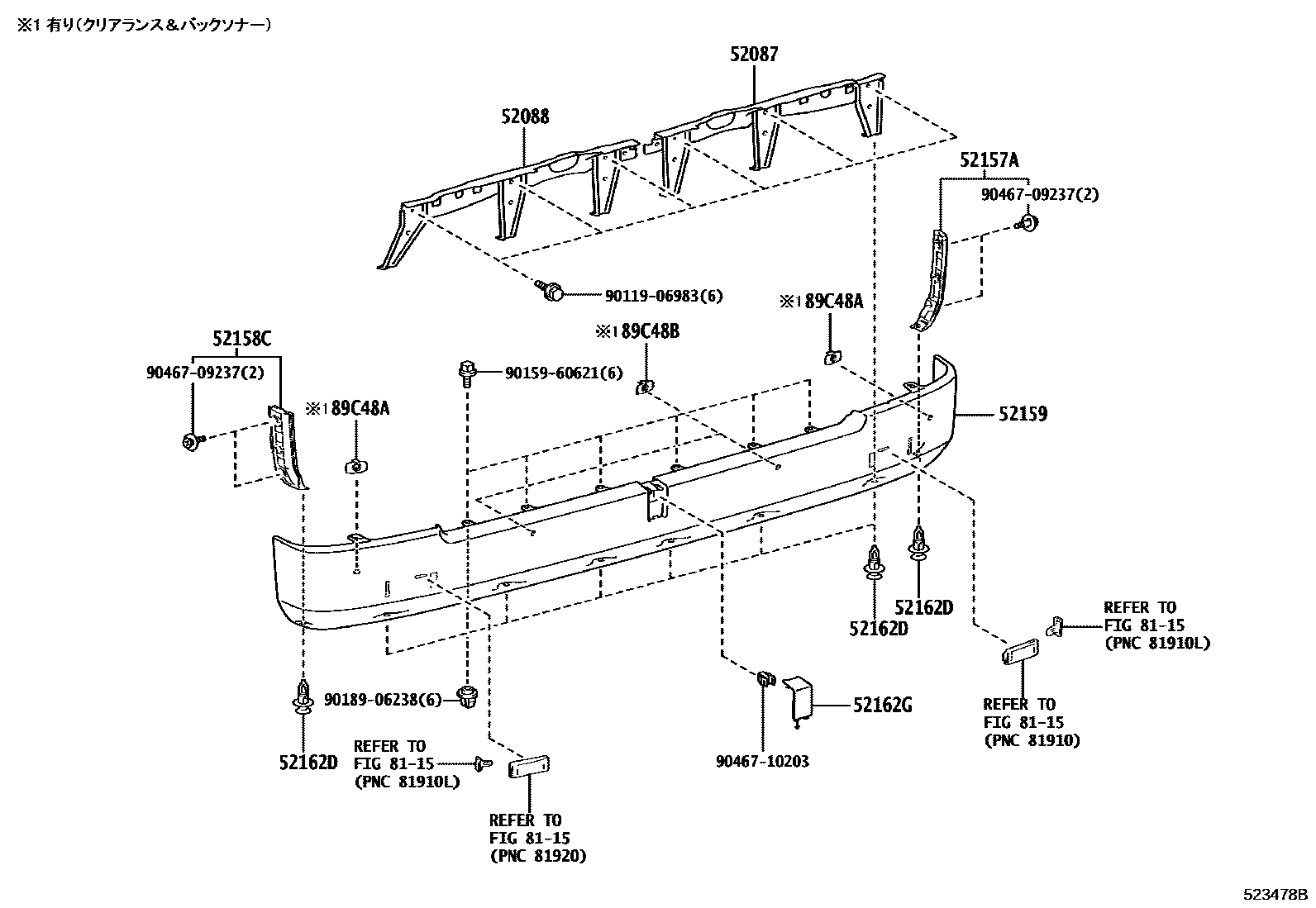

REAR BUMPER & BUMPER STAY

0001 1��(���������) 0002 1��(���������)

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52087-36010iXZB60,70,80..(13S,24S,25S,39S)..6FC..DCR201701

main52087-36020iXZB60..09S202201-202401

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52088-36010iGDB60,70,80..13S,24S,25S,39S202201-202412

main52088-36020iXZB60..09S201701-202201

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

52159COVER, REAR BUMPER

main52159-36900iXZB60..25S..6FC201701

main52159-36903iXZB60,70,80..(13S,24S,39S)..6FC..DCR201701

main52159-V4900iGDB60..25S202401-202412

main52159-V4901iGDB60,70,80..13S,24S,39S202401-202412

52162DPIECE, REAR BUMPER

main52161-16010×8iXZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

52162GPLATE, REAR BUMPER, NO.1

main52162-36900iXZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

8115

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-K0231×2iGDB60,70,80202401-202412

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-42440-A0iGDB60,70,80202401-202412

main89348-42440-B0iGDB60,70..GX202401-202412

main89348-42440-E0iGDB60,70..LX202401-202412

main89348-42440-F0iGDB60..S202401-202412

main89348-42440-K0iGDB60,70..LX202401-202412

main89348-42450-A0iGDB60,70,80202401-202412

main89348-42450-B0iGDB60,70..GX202401-202412

main89348-42450-E0iGDB60,70..LX202401-202412

main89348-42450-F0iGDB60..S202401-202412

main89348-42450-K0iGDB60,70..LX202401-202412

9011906983

main90119-06983

9015960621

main90159-60621

9018906238

main90189-06238

9046709237

main90467-09237

9046710203

main90467-10203

15 parts on this diagram · 2 diagrams in section
