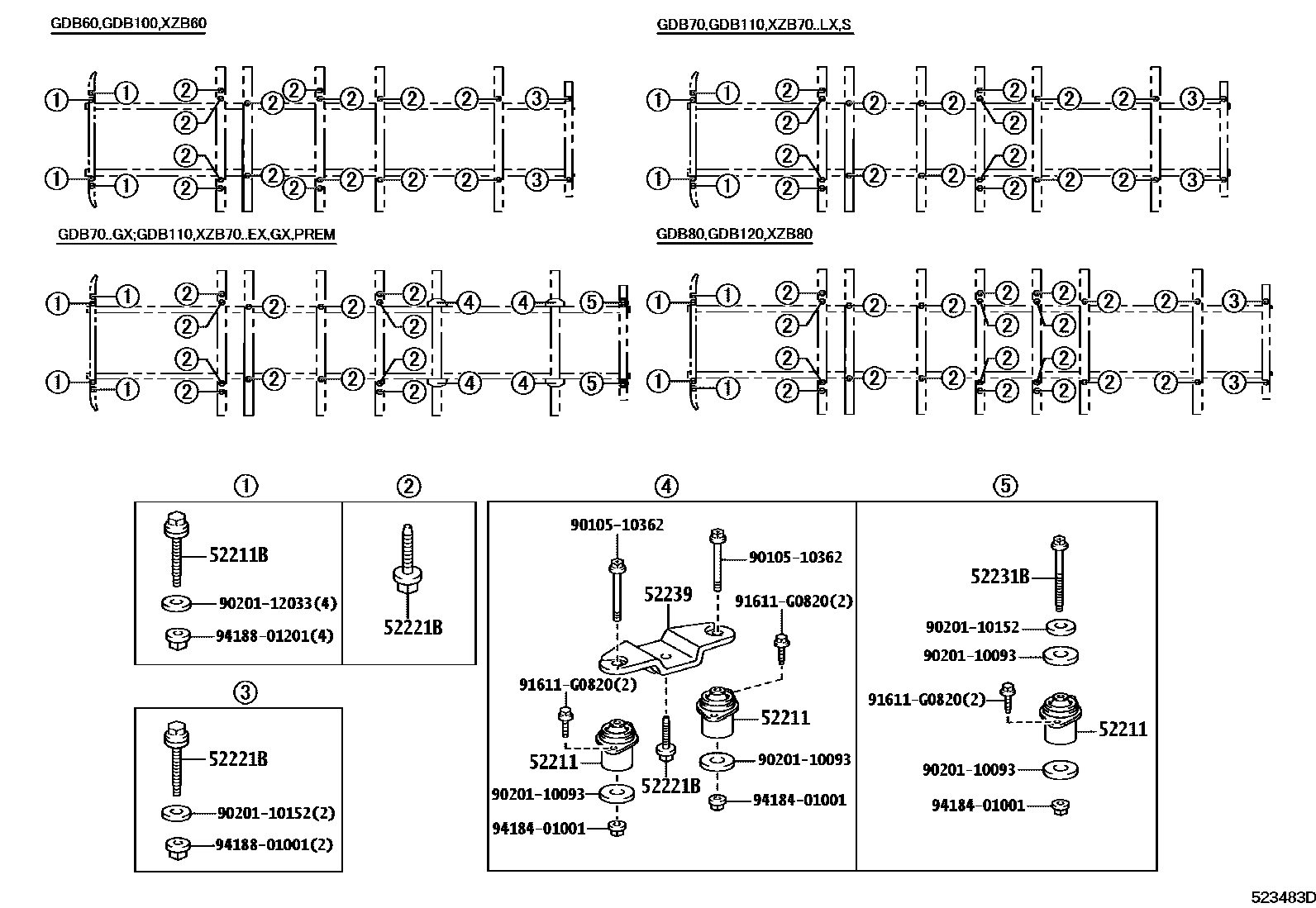

CAB MOUNTING & BODY MOUNTING

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52211-36070×10iXZB70..HDCR;XZB70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main91673-L1235×4iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main90119-10762×18iXZB80..HDCR202201-202312

main90119-10995×18iXZB60;XZB70..EX,GX201701-201709

main90119-10A08×16iXZB60;XZB70..EX,GX201710-201810

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90901-05014×2iXZB70..HDCR;XZB70..29S..GX..DCR202201-202312

52239PLATE, BODY MOUNTING

main52239-36010×4iXZB70..24S..6FC..GX201701

9010510362

main90105-10362

9020110093

main90201-10093

9020110152

main90201-10152

9020112033

main90201-12033

91611G0820

main91611-G0820

9418401001

main94184-01001

9418801001

main94188-01001

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
