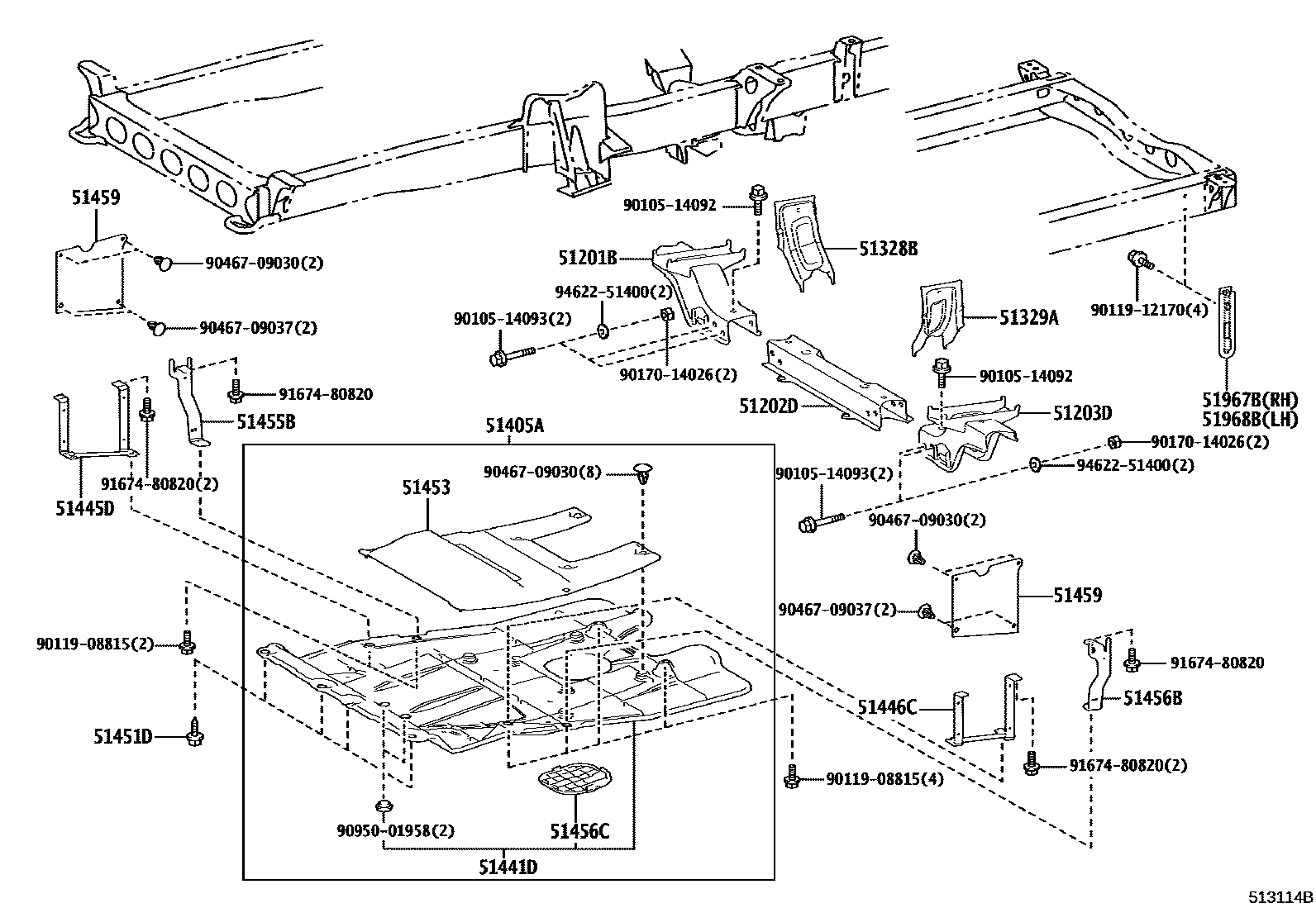

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0004 1

51201BCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH

main51201-36160iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51202DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-36171iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main51202-V4010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202412

51203DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH

main51203-36330iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51328BSUPPORT, FRONT SUSPENSION MEMBER, RH

main51328-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51329ASUPPORT, FRONT SUSPENSION MEMBER, LH

main51329-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-36070iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main51405-V4010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202412

51441DCOVER, ENGINE UNDER

main51441-36350iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main51441-V4010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202412

51445DBRACKET, ENGINE UNDER COVER, RH

main51445-36080iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51446CBRACKET, ENGINE UNDER COVER, LH

main51446-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51451DSCREW, NO.1

main90159-60477iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-36100iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main51453-V4010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202412

51455BBRACKET, ENGINE UNDER COVER, REAR RH

main51455-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51456BBRACKET, ENGINE UNDER COVER, REAR LH

main51456-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51456CSEAL, ENGINE UNDER COVER, NO.2

main51456-36081iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main51456-V4010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202412

51459STAY, ENGINE SIDE COVER

main51459-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51967BHOOK, TRANSPORT, REAR RH

main51963-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

51968BHOOK, TRANSPORT, REAR LH

main51963-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

9010514092

main90105-14092

9010514093

main90105-14093

9011908815

main90119-08815

9011912170

main90119-12170

9017014026

main90170-14026

9046709030

main90467-09030

9046709037

main90467-09037

9095001958

main90950-01958

9167480820

main91674-80820

9462251400

main94622-51400

27 parts on this diagram · 2 diagrams in section
