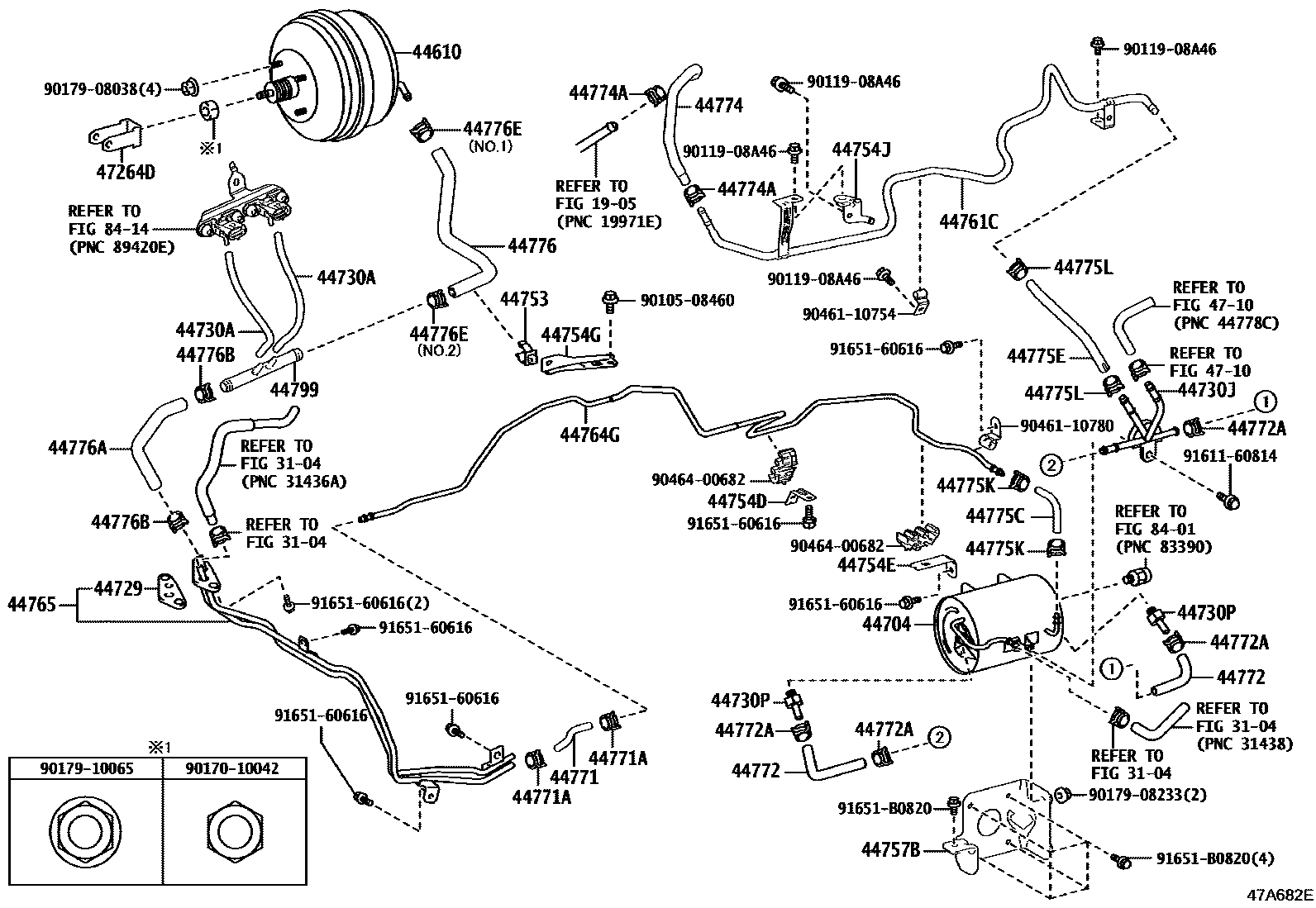

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1�����(�����) 0004 1�����(���)

1905

3104

44610BOOSTER ASSY, BRAKE

main44610-36650iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44704RESERVOIR SUB-ASSY, VACUUM

main44704-36260iXZB60,70..5F202201-202312

main44704-36270iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202201-202312

44729GASKET, VACUUM TUBE

main44729-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44730AHOSE, VACUUM, NO.1

main90999-92002×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44730JWAY(FOR BOOSTER VACUUM)

main90413-09037iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main90414-09001iXZB60,70..5F202201-202312

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iXZB60,70..5F201701-202201

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-30320iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44754DBRACKET, VACUUM TUBE, NO.2

main44754-36230iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44754EBRACKET, VACUUM TUBE, NO.3

main44754-36130iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44754GBRACKET, VACUUM TUBE, NO.5

main44754-36190iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44754JBRACKET, VACUUM TUBE, NO.6

main44754-36180iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44757BBRACKET, VACUUM TANK CLAMP, NO.2

main44757-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44761CTUBE, VACUUM PUMP TO CONNECTOR

main44761-36263iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

44764GTUBE, CONNECTOR TO BRAKE BOOSTER

main44764-36630iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main44764-V4010iGDB60,70,80202201-202412

44765TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2

main44765-36370iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main44765-36380iXZB60,70..5F201701-202201

44771HOSE, VACUUM TUBE CONNECTOR

main90445-17141iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)

main96133-41500×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-36100iXZB60,70..5F201701-202201

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500×2iXZB60,70..5F201701-202201

44774HOSE, UNION TO CONNECTOR TUBE

main44774-36440iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44775CHOSE, CONNECTOR TO WAY

main44775-36100iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44775EHOSE, WAY TO CONNECTOR

main44775-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44775KCLIP(FOR CONNECTOR TO 3 WAY HOSE)

main96133-41500×2iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

44775LCLIP(FOR 3 WAY TO CONNECTOR HOSE)

main96133-41500×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44776HOSE, BRAKE BOOSTER

main44776-36190iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-36131iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44776BCLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)

main96133-41500×2iGDB60,70,80202201-202412

44776ECLIP(FOR BRAKE BOOSTER HOSE)

main90467-16014iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main96133-41500iGDB60,70,80202201-202412

44799WAY, BRAKE VACUUM HOSE

main90414-10043iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

4710

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

8401

8414

9010508460

main90105-08460

9011908A46

main90119-08A46

9017010042

main90170-10042

9017908038

main90179-08038

9017908233

main90179-08233

9017910065

main90179-10065

9046110754

main90461-10754

9046110780

main90461-10780

9046400682

main90464-00682

9161160814

main91611-60814

9165160616

main91651-60616

91651B0820

main91651-B0820

48 parts on this diagram · 4 diagrams in section
