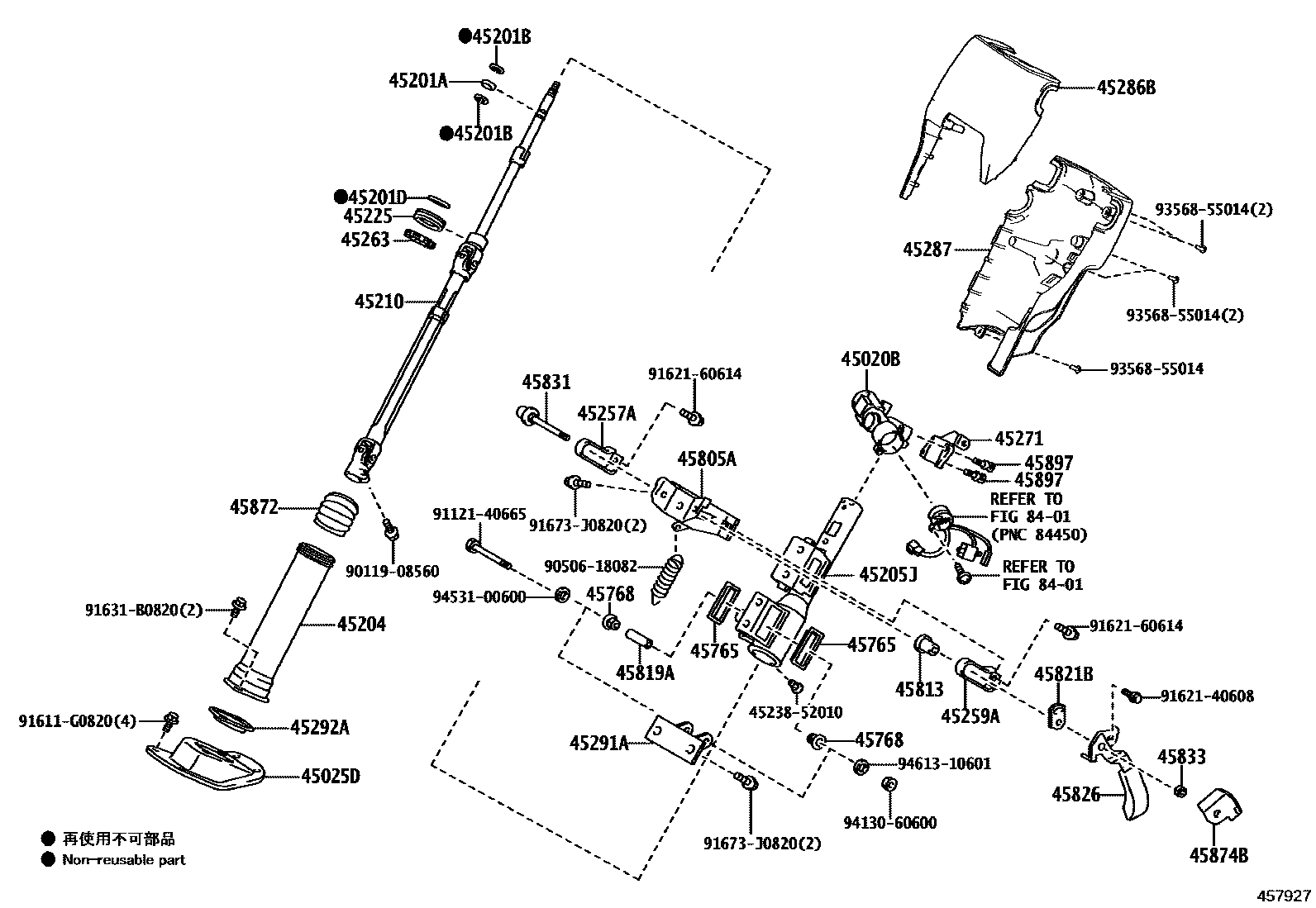

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-36390iXZB60,70..5F201701-202312

main45280-36400iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-36150iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-19006iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-36220iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-36240iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45210SHAFT ASSY, STEERING MAIN

main45210-36120iGDB60,70,80201701-202412

45225BLOCK, BEARING

main45225-26010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45263RING, STEERING COLUMN, NO.1

main45263-32010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45271CLAMP, STEERING COLUMN, UPPER

main45271-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45286BCOVER, STEERING COLUMN, UPR

main45286-36870-C0iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202412

BLACK,TRIM1#

main45286-36870-C0iXZB70..PREM202006-202201

BLACK,TRIM1#,2#

main45286-36870-C0iXZB70..PREM202201-202312

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-36390-C0iXZB70..PREM202006-202201

BLACK,TRIM1#,2#

main45287-36390-C0iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202412

BLACK,TRIM1#

main45287-36390-C0iXZB70..PREM202201-202312

BLACK,TRIM2#

45291ASUPPORT, STEERING COLUMN TUBE

main45803-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45765GUIDE, TELESCOPIC STEERING

main45765-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45768BUSH, TELESCOPIC STEERING

main45768-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-06037iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45826LEVER, STEERING TILT

main45826-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45831BOLT, TILT LEVER LOCK, NO.1

main45831-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45872COVER, STEERING COLUMN TUBE

main45872-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

45897BOLT, STEERING LOCK SET

main45897-12050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

8401

4523852010CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010

9011908560

main90119-08560

9050618082

main90506-18082

9112140665

main91121-40665

91611G0820

main91611-G0820

9162140608

main91621-40608

9162160614

main91621-60614

91631B0820

main91631-B0820

91673J0820

main91673-J0820

9356855014

main93568-55014

9413060600

main94130-60600

9453100600

main94531-00600

9461310601

main94613-10601

43 parts on this diagram · 1 diagram in section
