CLUTCH RELEASE CYLINDER

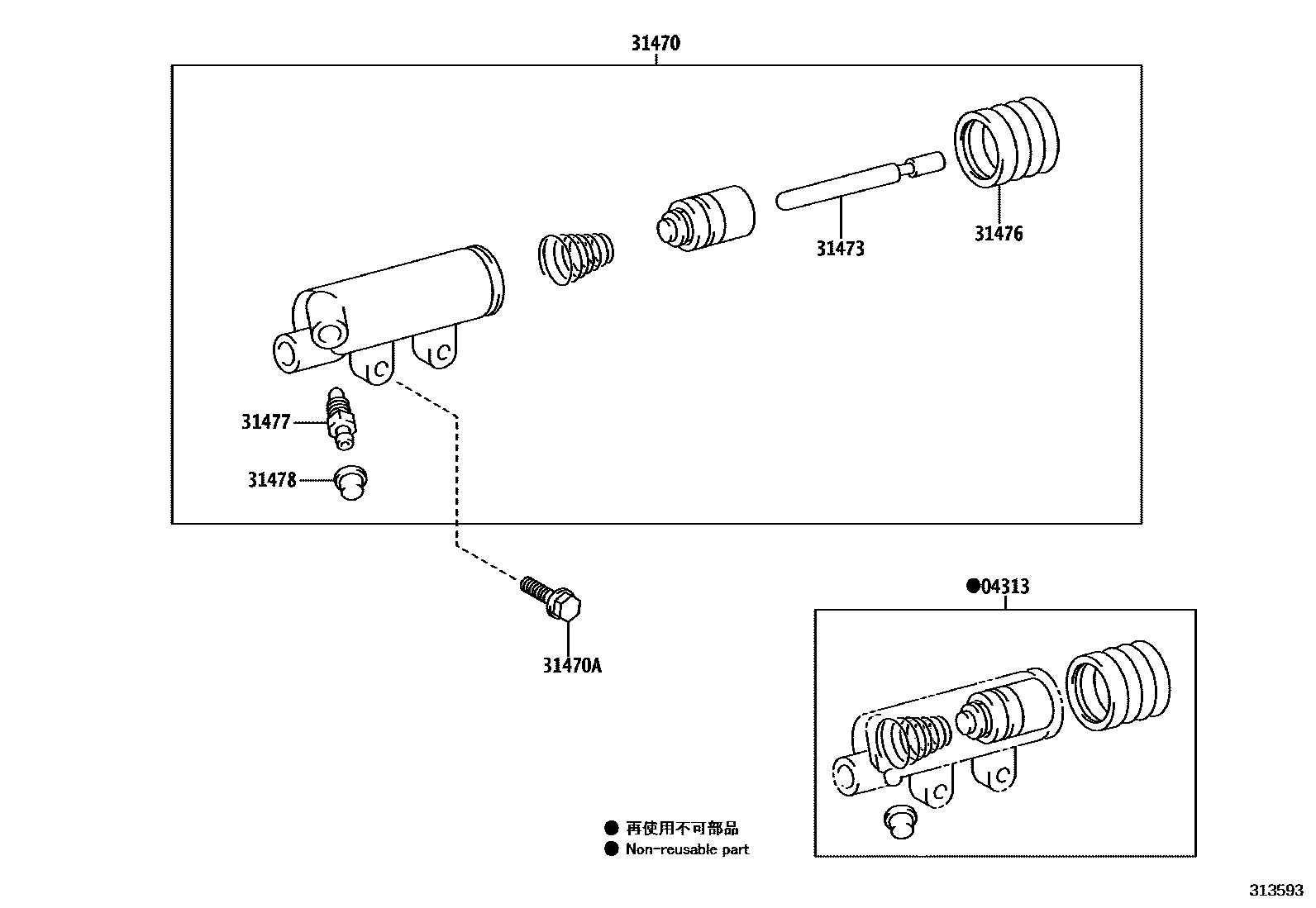

Parts diagram

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37090i201701-202201

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-37081i201701-202201

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2i201701-202201

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-37050i201701-202201

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010i201701-202201

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010i201701-202201

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010i201701-202201

7 parts on this diagram · 1 diagram in section
