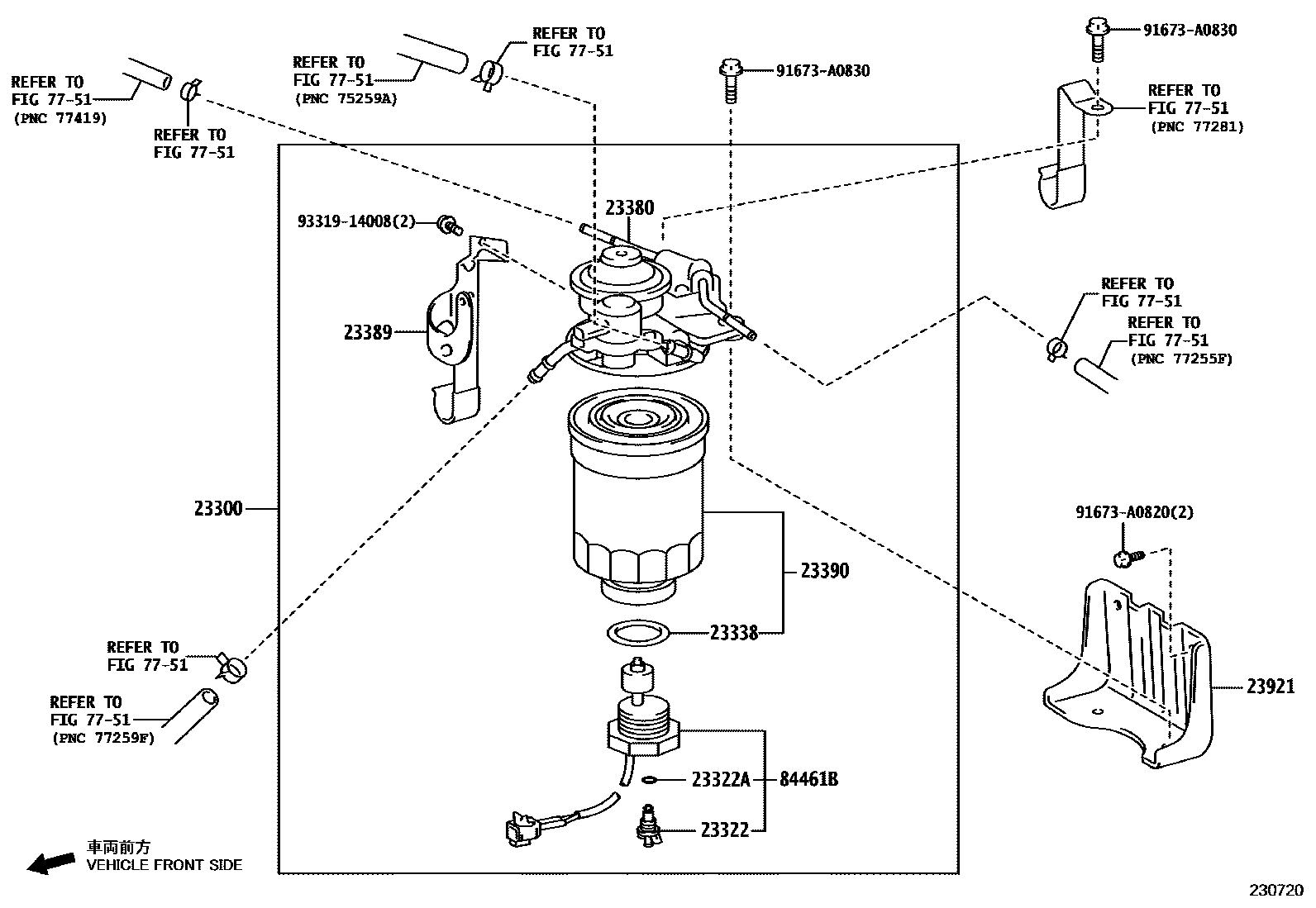

FUEL FILTER

0001 1 0002 1 0003 1

23300FILTER ASSY, FUEL

main23300-V4010i1GDFTV..GDB60,70,80202201-202412

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202412

23322ARING, O(FOR DRAIN PLUG)

main23344-54010iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202412

23338GASKET(FOR WARNING SWITCH)

main23344-64010iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202412

23380CAP ASSY, FUEL FILTER

main23380-17431iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

main23380-17441iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312

main23380-V4010i1GDFTV..GDB60,70,80202201-202412

23389CLAMP, FUEL FILTER

main23389-17380iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312

main23389-V4010i1GDFTV..GDB60,70,80202201-202412

23390ELEMENT ASSY, FUEL FILTER

main23390-36760i1GDFTV..GDB60,70,80202201-202412

main23390-78280iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

main23390-78300iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR201701-202312

23921SUPPORT, FUEL FILTER

main23921-17040iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202412

7751

84461BSWITCH, LEVEL WARNING

main84461-28041iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

91673A0820

main91673-A0820

91673A0830

main91673-A0830

9331914008

main93319-14008

13 parts on this diagram · 3 diagrams in section
