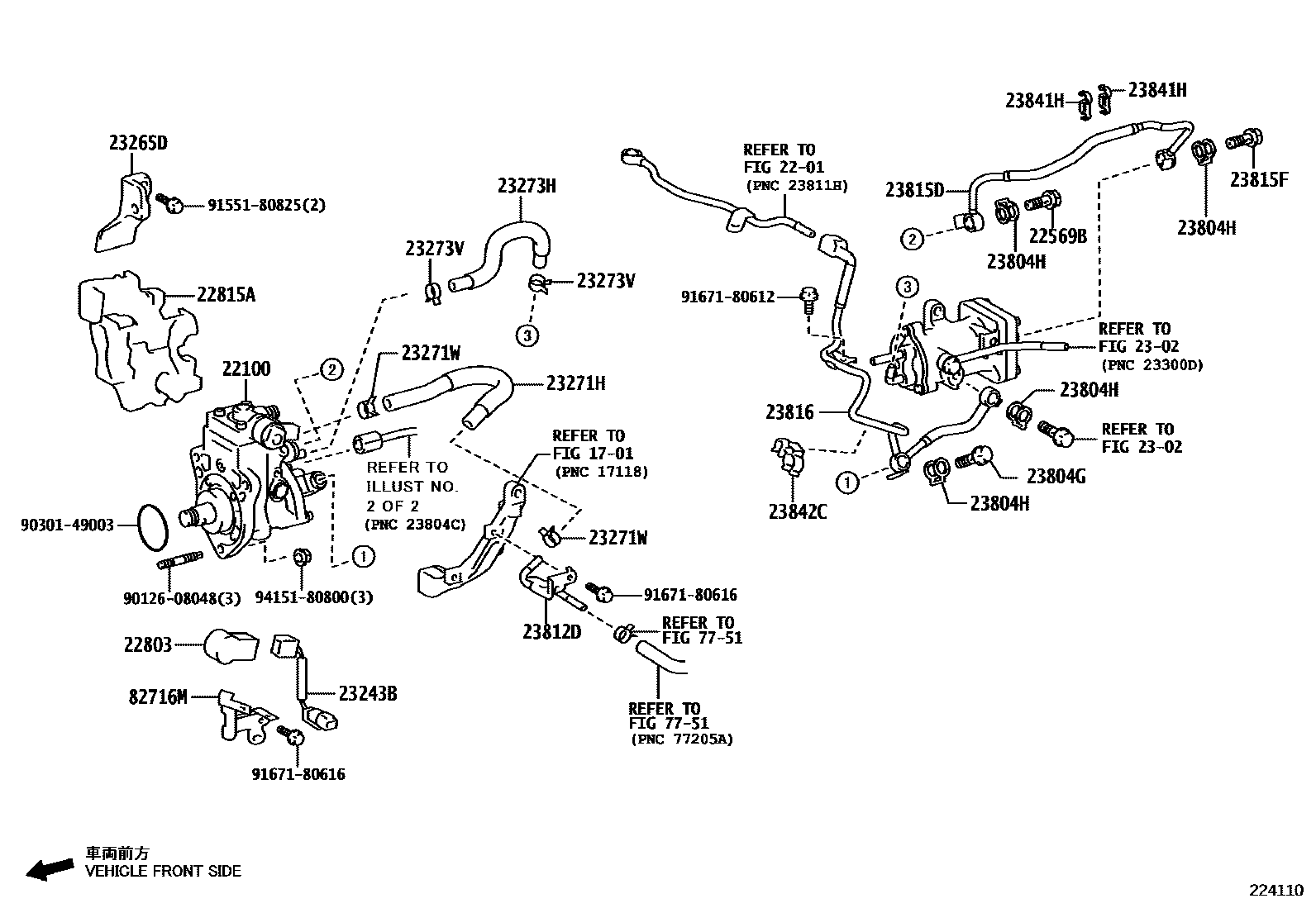

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1��������� 0004 1������������ 0005 1������������� 0006 1 0007 1

1701

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-11010i1GDFTV..GDB60,70,80202201-202412

main22100-78300iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR201908-202312

main22100-E0551iN04C..XZB60,70201701-201908

22569BSCREW, SUPPLY PUMP HOLLOW

main22569-11010i1GDFTV..GDB60,70,80202201-202412

22803COVER SUB-ASSY, FUEL INJECTION PUMP

main22803-11010i1GDFTV..GDB60,70,80202201-202303

22815AINSULATOR, INJECTION PUMP

main22815-11011i1GDFTV..GDB60,70,80202201-202412

2302

23243BWIRE, FUEL PUMP MOTOR

main23243-11010i1GDFTV..GDB60,70,80202201-202412

23265DBRACKET, FUEL PUMP, NO.1

main23265-11010i1GDFTV..GDB60,70,80202201-202412

23271HHOSE, FUEL, NO.1

main23271-11371i1GDFTV..GDB60,70,80202201-202412

main23271-E0540iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

23271WCLIP(FOR FUEL HOSE NO.1)

main96136-41501i1GDFTV..GDB60,70,80202201-202306

main96138-41501i1GDFTV..GDB60,70,80202307-202412

mainSZ46618001iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

23273HHOSE, FUEL, NO.2

main23273-11030i1GDFTV..GDB60,70,80202201-202412

main23273-78661iN04C..XZB60,70201701-201908

main23273-78810iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201908-202312

23273VCLIP(FOR FUEL HOSE NO.2)

main96136-41501iN04C..XZB60,70201701-201908

main96136-51801i1GDFTV..GDB60,70,80202201-202306

main96138-41501iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR201908-202312

main96138-41801i1GDFTV..GDB60,70,80202307-202412

23804GBOLT, UNION(FOR FUEL PIPE NO.4)

main90401-14018i1GDFTV..GDB60,70,80202201-202412

mainSZ40114033iN04C..XZB60,70201701-201908

23804HGASKET(FOR FUEL PIPE)

main90430-14015i1GDFTV..GDB60,70,80202201-202412

mainSZ43014003iN04C..XZB60,70201701-201908

23812DPIPE, FUEL, NO.2

main23801-78091iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR201908-202312

main23812-11031i1GDFTV..GDB60,70,80202201-202412

main23816-E0352iN04C..XZB60,70201701-201908

23815DPIPE, FUEL, NO.3

main23815-0E014i1GDFTV..GDB60,70,80202201-202412

main23816-E0331iN04C..XZB60,70201701-201908

23815FBOLT, UNION(FOR FUEL PIPE NO.3)

main21811-E0060iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

main90401-T0009i1GDFTV..GDB60,70,80202201-202412

23816PIPE, FUEL, NO.4

main23816-0E014i1GDFTV..GDB60,70,80202201-202412

main23816-78080iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202312

main23816-78151iN04C..XZB60,70201701-201908

23841HCLAMP, FUEL HOSE

main23841-11050i1GDFTV..GDB60,70,80202201-202412

23842CCLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP)

main23842-11071i1GDFTV..GDB60,70,80202201-202412

7751

82716MBRACKET, WIRING HARNESS CLAMP, NO.1

main82715-71240iGDB60,70,80202201-202412

9012608048

main90126-08048

9030149003

main90301-49003

9155180825

main91551-80825

9167180612

main91671-80612

9167180616

main91671-80616

9415180800

main94151-80800

29 parts on this diagram · 7 diagrams in section
