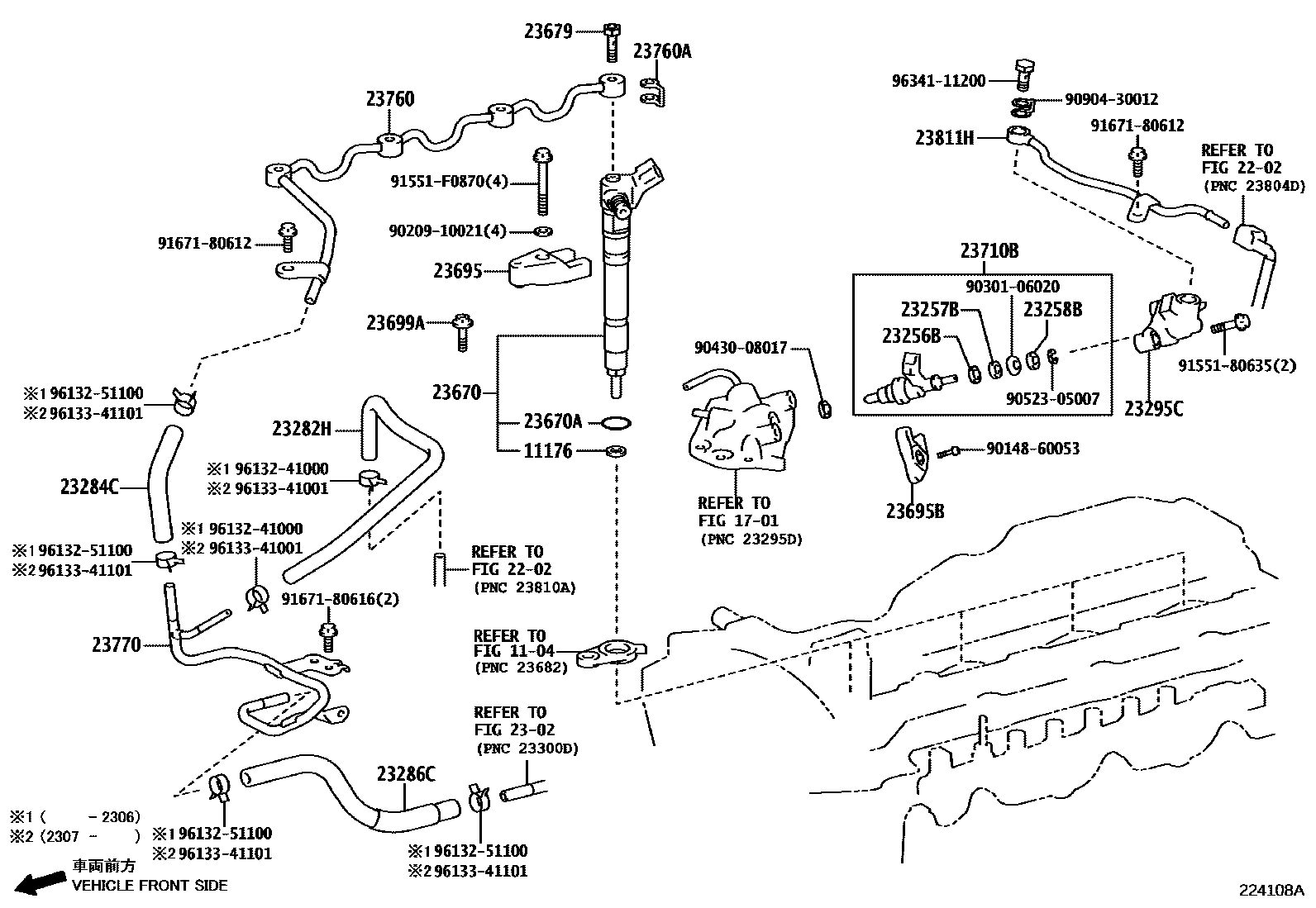

INJECTION NOZZLE
1104
11176SEAT, INJECTION NOZZLE
1701
2202
2302
23256BRING, FUEL INJECTOR BACK-UP, NO.1
23257BRING, FUEL INJECTOR BACK-UP, NO.2
23258BRING, FUEL INJECTOR BACK-UP, NO.3
23282HHOSE, FUEL, NO.4
23284CHOSE, FUEL, NO.5
23286CHOSE, FUEL, NO.6
23295CHOLDER, INJECTOR
23670INJECTOR ASSY
sub23670-E9264
main23670-E9301iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201908-202312
23670ARING, O(FOR INJECTOR ASSY)
subSZ301-19015
main15518-E0011iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201702-202312
23679SCREW, INJECTOR FOLLOW
23695CLAMP, NOZZLE HOLDER, NO.1
mainS111951140iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312
23695BCLAMP, NOZZLE HOLDER, NO.2
main23695-E0080iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312
23699ASEAT, NOZZLE HOLDER CLAMP
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
sub23710-E0051
main23710-E0051iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC202112-202312
23760PIPE ASSY, NOZZLE LEAKAGE
main23708-78031iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201905-202312
sub23760-0E011
23760AGASKET
mainSZ20908024iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312
23811HPIPE, FUEL, NO.1
main23801-78080iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR201908-202312
sub23811-08010
9014860053
main90148-60053
9020910021
main90209-10021
9030106020
main90301-06020
9043008017
main90430-08017
9052305007
main90523-05007
9090430012
main90904-30012
9155180635
main91551-80635
91551F0870
main91551-F0870
9167180612
main91671-80612
9167180616
main91671-80616
9613241000
main96132-41000
9613251100
main96132-51100
9613341001
main96133-41001
9613341101
main96133-41101
9634111200
main96341-11200
38 parts on this diagram · 3 diagrams in section
