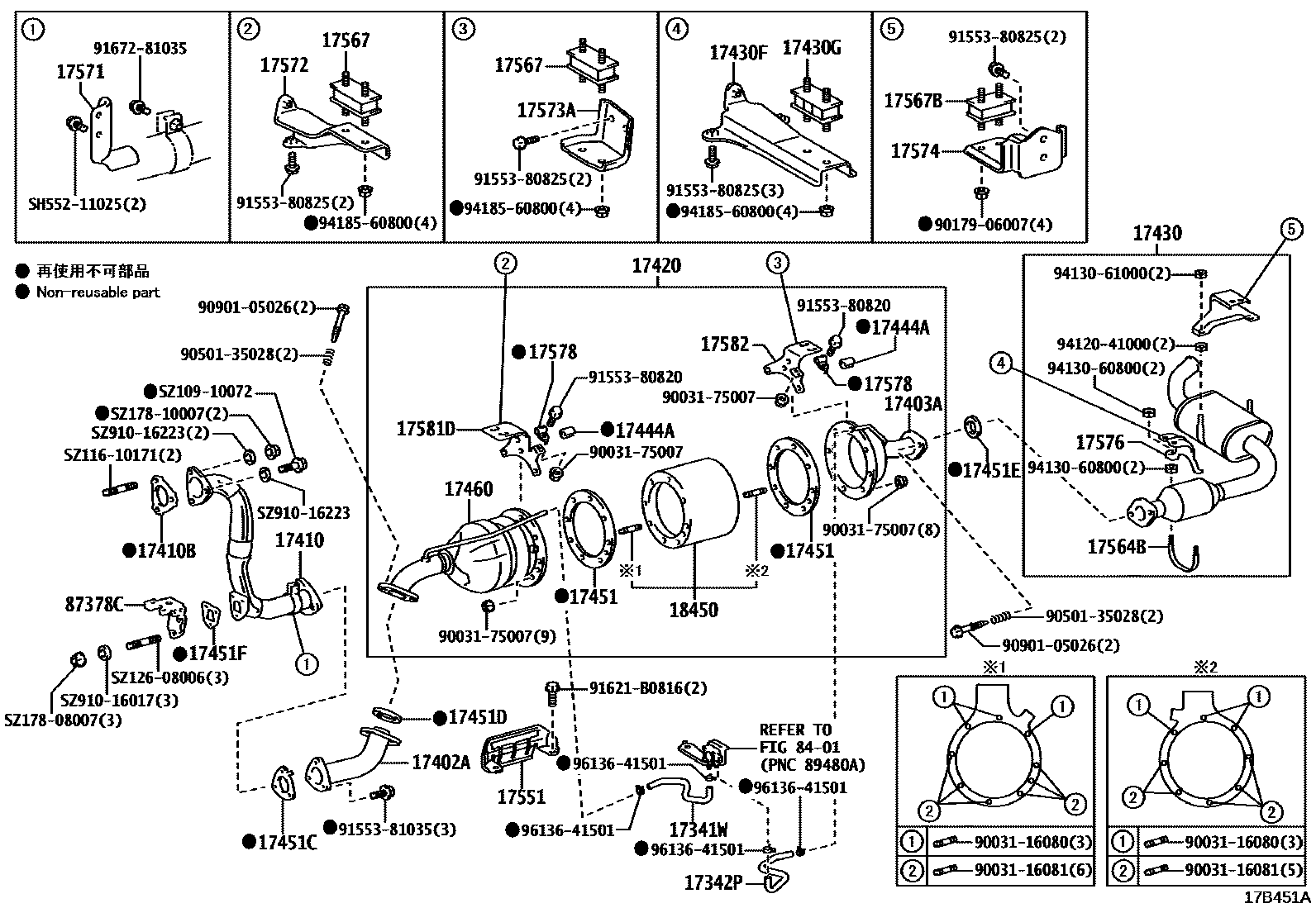

EXHAUST PIPE
17341WHOSE, AIR, NO.1
main17341-78400iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202312
17342PHOSE, AIR, NO.2
main17342-78340iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202312
17402APIPE SUB-ASSY, EXHAUST, CENTER NO.1
main17402-78350iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202312
17403APIPE SUB-ASSY, EXHAUST, CENTER NO.2
main17404-78060iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202312
17410PIPE ASSY, EXHAUST, FRONT
main17401-78400iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202312
sub17401-E0S61
17410BGASKET, EXHAUST PIPE
main17451-E0110iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312
17420PIPE ASSY, EXHAUST, CENTER
main17403-78C40iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202312
17430PIPE ASSY, EXHAUST, TAIL
main17430-78130iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202312
17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)
17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)
17444ASPACER, EXHAUST FRONT PIPE
main17444-78020iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312
17451GASKET, EXHAUST PIPE
17451CGASKET, EXHAUST PIPE, NO.3
main17451-78110iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312
17451DGASKET, EXHAUST PIPE, NO.4
main17451-74040iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312
17451EGASKET, EXHAUST PIPE, NO.5
17451FGASKET, EXHAUST PIPE, NO.6
main17451-E0121iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312
17460CONVERTER ASSY, CATALYTIC W/PIPE
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
main17551-78050iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202412
17564BSUPPORT, CATALYTIC CONVERTER
17567CUSHION, EXHAUST PIPE SUPPORT
main17567-75050iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202412
17567BCUSHION, EXHAUST PIPE SUPPORT, NO.3
main17567-75060iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202412
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
main17571-78140iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201908-202312
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
main17572-78271iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
main17573-78290iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202412
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17576BRACKET, MUFFLER CLAMP
17578CLAMP, PIPE
main17578-78170iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312
17581DBRACKET, CATALYTIC CONVERTER SUPPORT
17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
18450CONVERTER ASSY, MONOLITHIC
8401
87378CPIPE, EXHAUST
main87378-E0033iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202312
9003116080
main90031-16080
9003116081
main90031-16081
9003175007
main90031-75007
9017906007
main90179-06007
9050135028
main90501-35028
9090105026
main90901-05026
9155380820
main91553-80820
9155380825
main91553-80825
9155381035
main91553-81035
91621B0816
main91621-B0816
9167281035
main91672-81035
9412041000
main94120-41000
9413060800
main94130-60800
9413061000
main94130-61000
9418560800
main94185-60800
9613641501
main96136-41501
SH55211025
mainSH552-11025
SZ10910072
mainSZ109-10072
SZ11610171
mainSZ116-10171
SZ12608006
mainSZ126-08006
SZ17808007
mainSZ178-08007
SZ17810007
mainSZ178-10007
SZ91016017
mainSZ910-16017
SZ91016223
mainSZ910-16223
56 parts on this diagram · 7 diagrams in section
