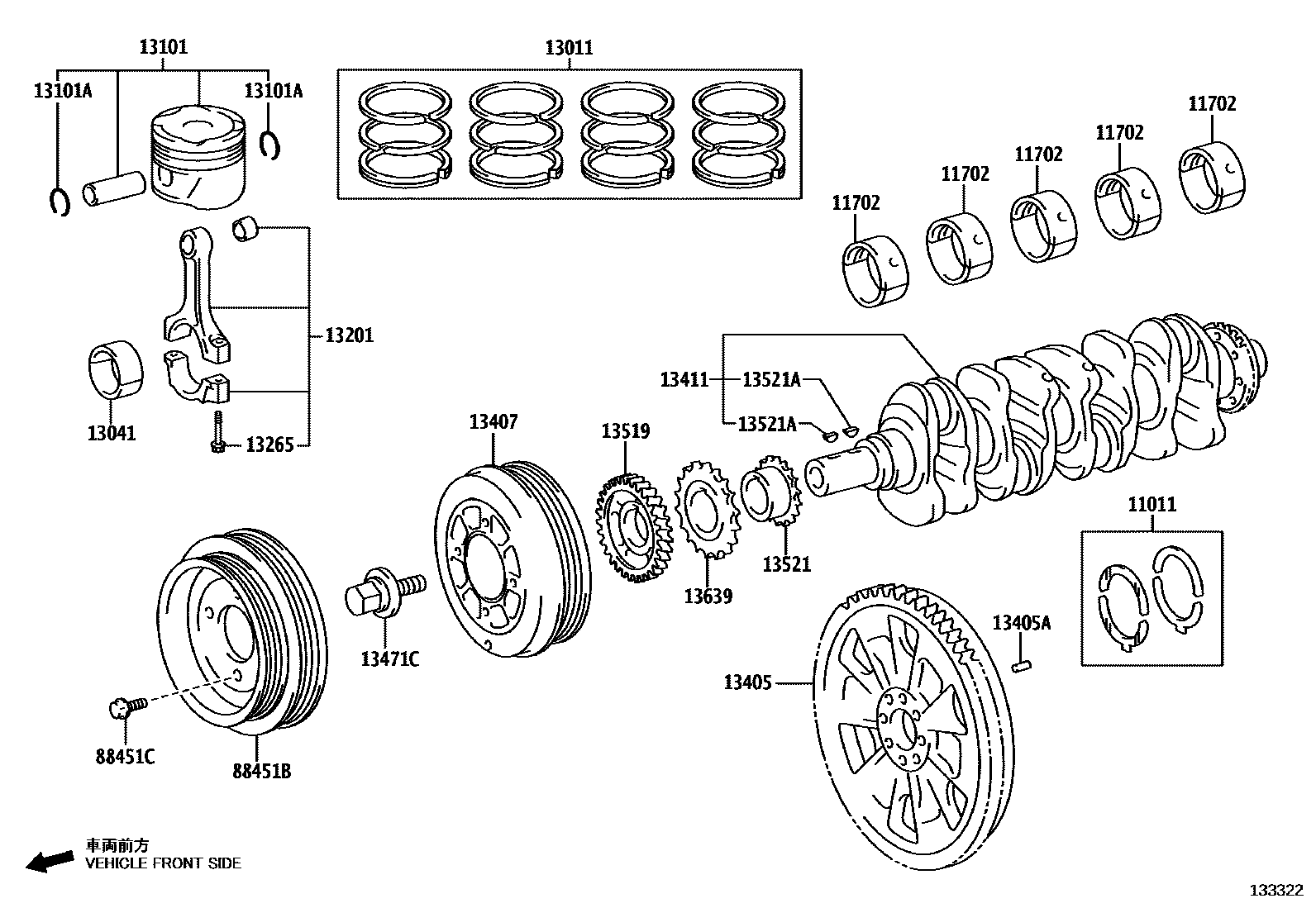

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-30010i1GDFTV..GDB60,70,80202201-202412

main11011-E0030iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

11702BEARING SET, CRANKSHAFT

main11701-11030-02×5i1GDFTV..GDB60,70,80202201-202412

MARK 2

main11701-11030-03×5i1GDFTV..GDB60,70,80202201-202412

MARK 3

main11701-11030-04×5i1GDFTV..GDB60,70,80202201-202412

MARK 4

main11701-11030-05×5i1GDFTV..GDB60,70,80202201-202412

MARK 5

main11701-11030-06×5i1GDFTV..GDB60,70,80202201-202412

MARK 6

main11701-78160iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201905-202201

main11701-E0070iN04C..XZB60,70201701-201905

main11704-E0040iN04C..XZB60,70201701-201908

main11704-E0050iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR202201-202312

main11705-E0040iN04C..XZB60,70201701-201908

main11705-E0050iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202201

main11706-E0020iN04C..XZB60,70201701-201908

main11706-E0040iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR202201-202312

main11707-E0020iN04C..XZB60,70201701-201908

main11707-E0040iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR202201-202312

13011RING SET, PISTON

main13011-11201i1GDFTV..GDB60,70,80202201-202412

mainS1304E0020×4iN04C..XZB60,70201701-201908

mainS1304E0700×4iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202201

13041BEARING, CONNECTING ROD

main13041-11061-02×4i1GDFTV..GDB60,70,80202201-202412

MARK 2

main13041-11061-03×4i1GDFTV..GDB60,70,80202201-202412

MARK 3

main13041-11061-04×4i1GDFTV..GDB60,70,80202201-202412

MARK 4

main13041-11061-05×4i1GDFTV..GDB60,70,80202201-202412

MARK 5

main13041-11061-06×4i1GDFTV..GDB60,70,80202201-202412

MARK 6

13101PISTON SUB-ASSY, W/PIN

main13101-11191-01×4i1GDFTV..GDB60,70,80202201-202412

main13101-11191-02×4i1GDFTV..GDB60,70,80202201-202412

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-32013×8i1GDFTV..GDB60,70,80202201-202412

mainSZ52037001×8iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701

13201ROD SUB-ASSY, CONNECTING

main13201-0E020-A0×4i1GDFTV..GDB60,70,80202201-202412

main13201-0E020-B0×4i1GDFTV..GDB60,70,80202201-202412

main13201-0E020-C0×4i1GDFTV..GDB60,70,80202201-202412

main13201-11050-A0×4i1GDFTV..GDB60,70,80202201-202412

main13201-11050-B0×4i1GDFTV..GDB60,70,80202201-202412

main13201-11050-C0×4i1GDFTV..GDB60,70,80202201-202412

13265BOLT, CONNECTING ROD

main13265-22031×8i1GDFTV..GDB60,70,80202201-202412

main13265-E0010×8iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

13405FLYWHEEL SUB-ASSY

main13405-11090i1GDFTV..GDB60,70,80202201-202412

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1GDFTV..GDB60,70,80202201-202412

mainSM21201024×2iN04C..XZB60,70..5F201701-202201

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-11040i1GDFTV..GDB60,70,80202201-202412

13411CRANKSHAFT

main13401-11090i1GDFTV..GDB60,70,80202201-202412

main13411-78070iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201905-202201

main13411-E0071iN04C..XZB60,70201701-201905

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-18003i1GDFTV..GDB60,70,80202201-202412

13519GEAR, OIL PUMP DRIVE

main13519-0E010i1GDFTV..GDB60,70,80202308-202412

main13519-11010i1GDFTV..GDB60,70,80202201-202308

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-11050i1GDFTV..GDB60,70,80202201-202412

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516×2i1GDFTV..GDB60,70,80202201-202412

13639SPROCKET, BALANCESHAFT TIMING

main13639-11010i1GDFTV..GDB60,70,80202201-202412

88451BPULLEY, CRANKSHAFT(FOR VISCOUS HEATER)

main88451-V4010iGDB60,70,80202201-202412

88451CBOLT, FLANGE W/WASHER

main91671-80818×4iGDB60,70,80202201-202412

19 parts on this diagram · 2 diagrams in section
