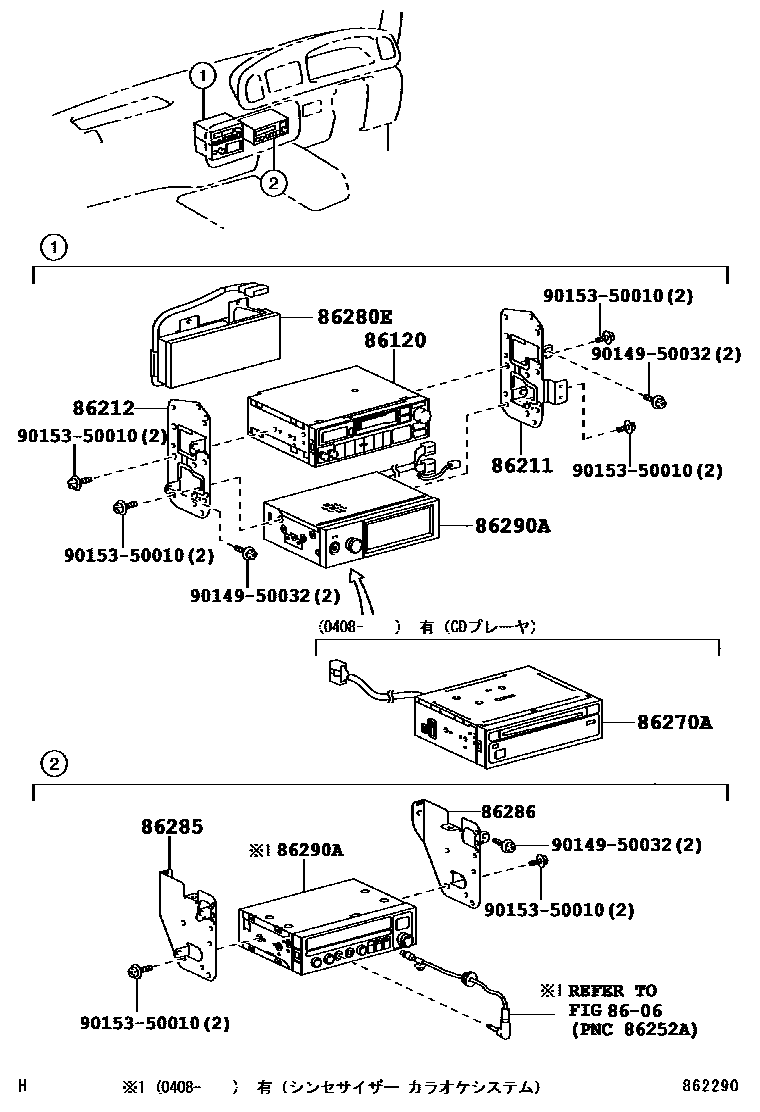

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1���� & CD ����� & ������� 0002 1���� & ������� 0003 1���� & ������ & �������� 0004 1 0005 1��� & ��� ���� 0006 1����� �����-

8606

86120RECEIVER ASSY, RADIO

main86120-26120iXZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD200408-200708

main86120-26170iBZB40,50,XZB4#,5#201108-201501

main86120-26200iBZB40,50,XZB4#,5#201501-201511

main86120-26201iBZB40,50,XZB4#,5#201512

sub86120-26202

main86120-2B410iHDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5)199705-199907

main86120-2B530iBB58,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5)199907-200408

main86120-36050iHDB5#,HZB41,50..EX,GX,SULNG199301-199705

main86120-37010iBZB40,50200203-200408

main86120-37020iBB58,HDB50,HZB40,46,5#..DX,LX,STD199907-200408

sub86120-37021

main86120-37110iBB58,HDB50,HZB40,46,5#..DX,LX,STD199907-200408

main86120-37140iBZB40,50200203-200408

main86120-58090iXZB50..WOC;XZB40..5F..IV5200708-200908

main86120-63030iXZB51..IV5200708-200908

main86120-95J04iXZB51..SULNG200408-200512

86211BRACKET, RADIO, NO.1

main86211-36020iBB4#,HDB5#,HZB4#,5#199301-199505

main86211-36030iXZB51..SULNG200408-200512

main86211-36040iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

86212BRACKET, RADIO, NO.2

main86212-36010iBB4#,HDB5#,HZB4#,5#199301-199505

main86212-36020iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199505-199907

main86212-36040iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

86270ADISC PLAYER ASSY

main86270-36010iHDB51,HZB41..CBU199301-199907

main86270-60050iXZB51..SULNG200408-200512

86280EAMPLIFIER SET, STEREO COMPONENT

main86280-36020iHDB51..CBU199301-199907

86285BRACKET, AMPLIFIER, NO.1

main86285-36020iXZB51..CBU200408-200511

main86285-36021iXZB50..6FC;XZB51..CBU200512-200708

main86285-36030iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

main86772-36030iBB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5199907-200408

86286BRACKET, AMPLIFIER, NO.2

main86286-36010iXZB51..CBU200408-200511

main86286-36011iXZB50..6FC;XZB51..CBU200512-200708

main86286-36020iBZB40,50,XZB4#,5#201501

main86771-36030iHDB51..IV1199910-200108

86290AAMPLIFIER ASSY, MICROPHONE

main86290-36010iHDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU199907-200408

main86290-36020iHDB51199301-199705

main86290-36030iBZB40,50200203-200408

sub86290-36031

main86290-36040iBB40,5#,HZB40,50..DX,LX,STD199301-199907

sub86290-36041

main86290-36050iHDB5#,HZB4#,50..(EX,GX,LX,SULNG)..(CBU,IV5)199705-199907

main86290-36051iXZB50..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU200708-201412

main86290-36060iHDB51..CBU199907-200408

main86290-36090iXZB40,50,51201412-201501

main86290-36091iBZB40,50,XZB40,50,51201504

9014950032

main90149-50032

9015350010

main90153-50010

11 parts on this diagram · 6 diagrams in section
