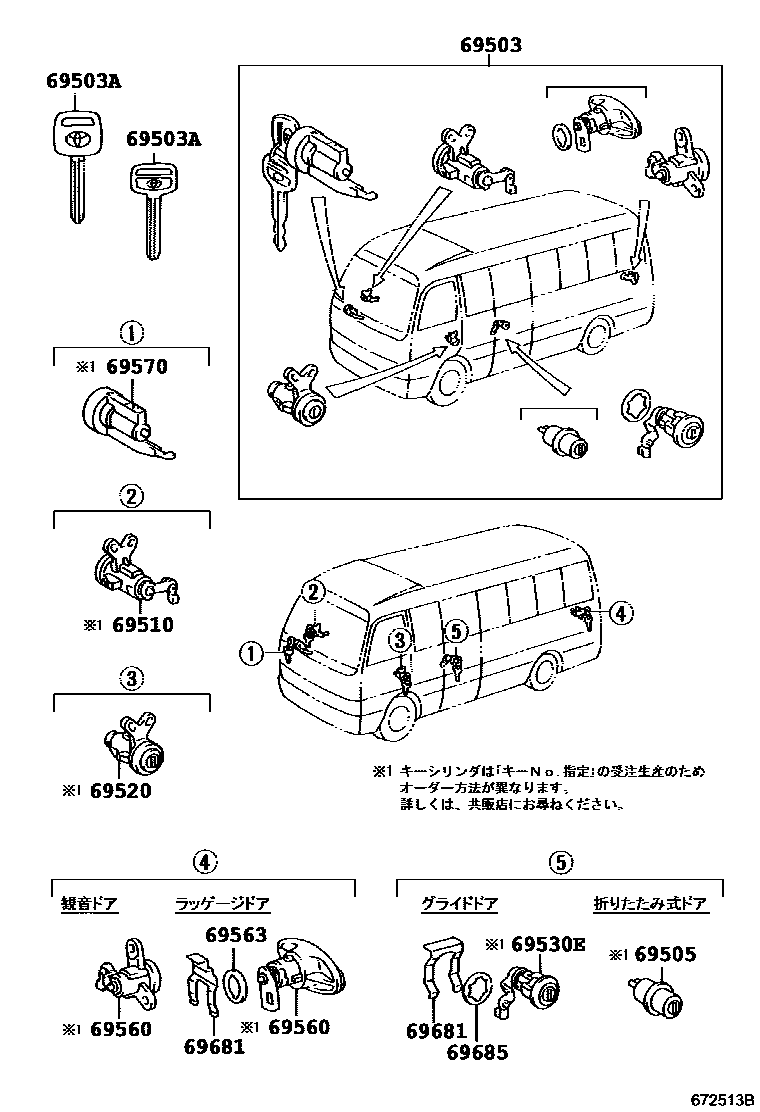

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-36050iBB40,HDB5#,HZB4#,50..15S,26S,29S199301-199402

main69005-36051iBB40,HDB5#,HZB4#,50..15S,26S,29S199402-199505

main69005-36052iBB40,5#,HDB50,HZB40,50..(26S,29S)..CBU199505-199907

sub69005-36103

main69005-36060iBB40,HZB50..39S,49S199301-199505

main69005-36061iBB40,HZB40,50..39S,49S199505-199907

sub69005-36112

main69005-36070iBB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX199301-199505

main69005-36071iBB4#,58,HDB50,HZB40,5#..DX,GX,LX199505-199907

sub69005-36252

main69005-36080iBB40,HDB5#,HZB4#,50..EX,GX,LX,SULNG199301-199402

main69005-36081iBB40,HDB5#,HZB4#,50..EX,GX,LX,SULNG199402-199505

main69005-36082iHZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..(EX,GX,LX,SULNG)..(CBU,IV5)199505-199907

main69005-36090iBB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG199301-199505

main69005-36091iHZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU199505-199907

sub69005-36411

main69005-36320iBB46,HZB56199301-199505

main69005-36321iBB46,HZB56199505-199907

main69005-36330iBB46,HZB56..LX199301-199505

main69005-36331iBB46,HZB56199505-199907

main69005-36460iHDB51..IV1199805-199907

sub69057-37050

main69005-36490iBB58,HDB50,HZB40,50..(DX,LX)..CBU199907-200201

main69005-36491iXZB40,50..(26S,29S)..LX..(4FC,6F)..CBU200408-200708

main69005-36500iHZB40,50..STD199907-200201

main69005-36501iBZB40,50..STD200408-201108

main69005-36510iBB58,HDB50,HZB40,46,5#..DX,LX199907-200201

main69005-36511iXZB4#,50,56..(09S,26S,29S)..LX..(4FC,6F)200408-200708

main69005-36520iHDB5#,HZB40,41,50..(20S,26S,29S)..WC..CBU199907-200201

main69005-36521iBZB40,50,XZB40,50,51..(20S,26S,29S)..WC..(5F,6FC)..CBU200408-201108

main69005-36522iBZB40,50,XZB40,50,51..(26S,29S)..WC..CBU201108-201501

sub69005-36662

main69005-36530iHDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5)199907-200201

main69005-36531iXZB51..SULNG200408-200512

sub69005-36641

main69005-36532iXZB4#,5#..EX,GX,LX201108-201501

main69005-36540iHZB46,56199907-200201

main69005-36541iXZB46,56..6FC200408-201108

main69005-36542iXZB46,56201501

main69005-36550iHZB46,56199907-200201

main69005-36551iXZB46,56..09S200408-200708

main69005-36610iHDB51..IV1199907-200408

sub69057-37080

69503AKEY, BLANK

main90999-00185iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

main90999-00186iBZB40,50,XZB4#,5#201501

main90999-00224iXZB40,50..(26S,29S)..LX..(4FC,6F)..CBU200408-200708

main90999-00225iXZB40,50..(26S,29S)..LX..(4FC,6F)..CBU200408-200708

69505CYLINDER SUB-ASSY, CENTER DOOR LOCK

main69505-36010iBB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD199301-199505

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-36031iBB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5199907-200408

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-36021iXZB46,56201501

69530ECYLINDER ASSY, GLIDE DOOR LOCK

main69530-36010iXZB40..5F..IV5;XZB51..6FC..IV5200408-200908

main69530-36020iBZB40,50,XZB4#,5#..EX,GX,LX201108-201501

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-36011iXZB51..SULNG..6FC200408-201108

main69560-36020iXZB4#,5#..EX,GX,LX201501

69563PAD, BACK DOOR LOCK CYLINDER

main69685-36010iHZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)199301-199907

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-36011iBB4#,HDB5#,HZB4#,5#199301-199505

main69570-37040iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

main69570-37050iBZB40,50,XZB4#,5#201501

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69511-89101iXZB51..SULNG..6FC200408-201108

main69561-33010iXZB50..29S..WC..(5F,6FC)..CBU;BZB40,50,XZB40,51..(26S,29S)..(5F,6FC)..CBU200408-201501

69685PAD, LOCK CYLINDER

main69513-32010iBZB40,50,XZB4#,5#..EX,GX,LX201501

11 parts on this diagram · 1 diagram in section
