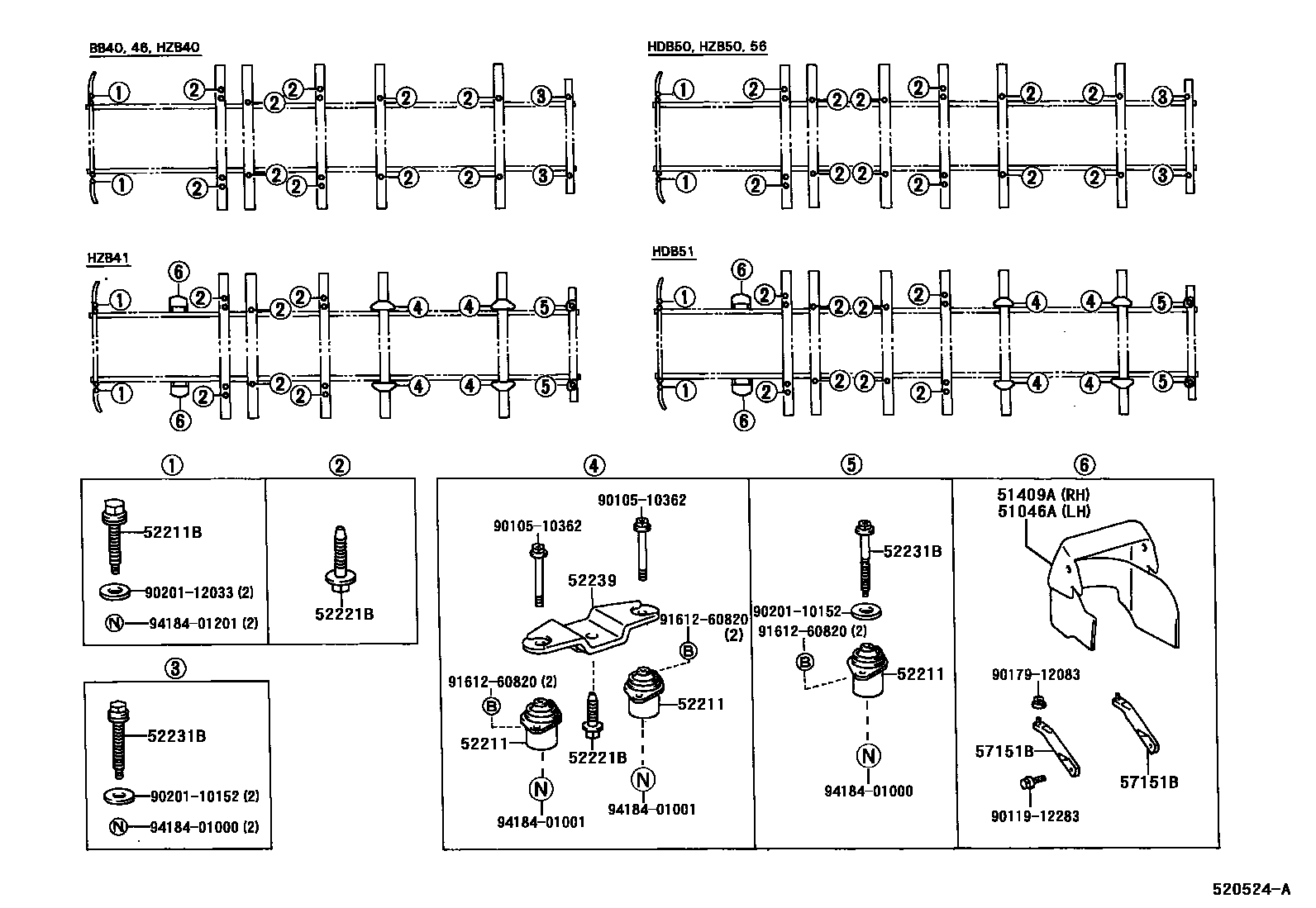

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1 0004 1

51046ACOVER SUB-ASSY, ENGINE UNDER, NO.5

main51046-36010iXZB51..EX..(4FC,6F)200408-200708

51409ACOVER SUB-ASSY, ENGINE UNDER, NO.4

main51409-36030iXZB51..6FC..IV5200408-200908

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52211-36030×10iHDB5#,HZB50..EX,GX,SULNG199705-199907

main52211-36050×4iBB5#199512-199907

main52211-36070×10iXZB50,51..EX,GX201504

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90119-12257×4iBB4#,HDB5#,HZB4#,5#199301-199308

main90119-12275×4iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU200408-201501

main90901-05014×4iBB58199907-200408

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main90119-10762×16iXZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU200408-201501

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90119-10748×2iBB4#,HDB50,HZB4#,5#199505-199507

main90119-10762×2iXZB50..WOC;XZB40..5F..IV5200408-200908

main90901-05014×2iHDB51,HZB41199301-199505

52239PLATE, BODY MOUNTING

main52239-36010×4iXZB50,51..EX,GX201501

main52239-36020×2iBB5#199512-199907

57151BSTAY, CROSSMEMBER, A

main57151-36010×4iHDB51,HZB41199301-199505

9010510362

main90105-10362

9011912283

main90119-12283

9017912083

main90179-12083

9020110152

main90201-10152

9020112033

main90201-12033

9161260820

main91612-60820

9418401000

main94184-01000

9418401001

main94184-01001

9418401201

main94184-01201

17 parts on this diagram · 4 diagrams in section
