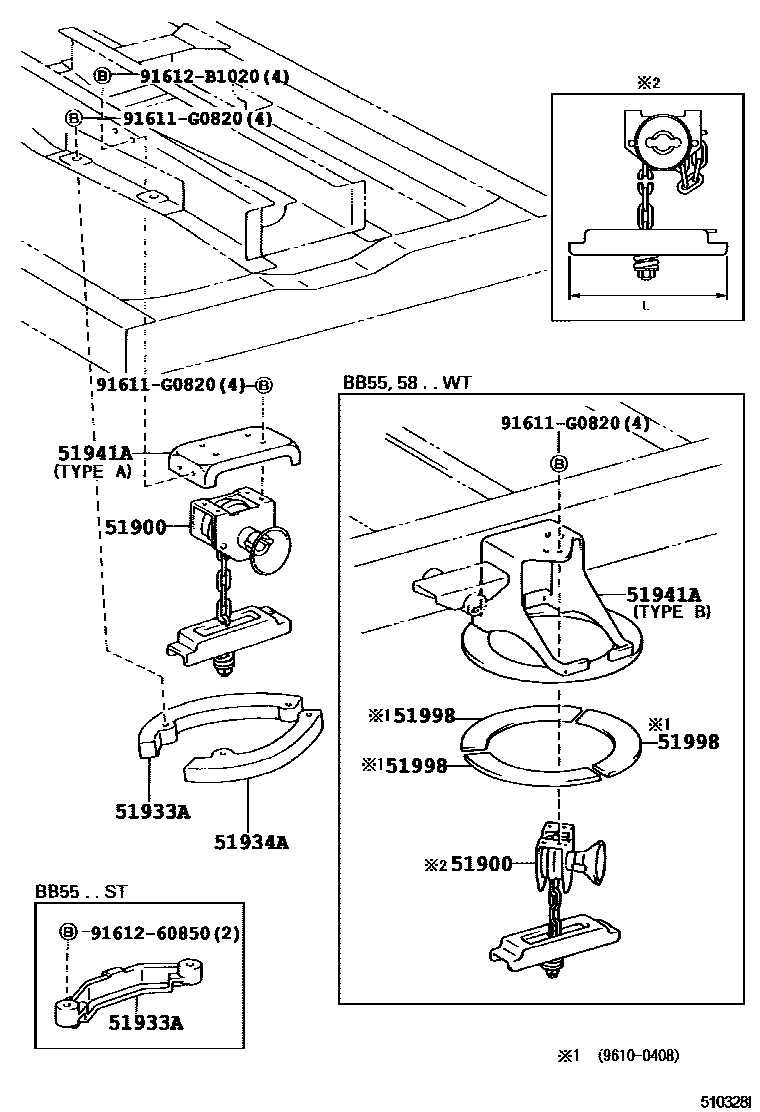

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-36140iBB4#,HDB5#,HZB4#,5#199301-199905

main51900-36141iBB4#,HDB5#,HZB4#,5#199905-199907

main51900-36150iHDB5#,HZB41,50..EX,GX,SULNG199301-199505

main51900-36151iHDB51,HZB41199905-199907

main51900-36160iBB5#199512-199905

L= 210

main51900-36161iBB58199905-199907

L= 210

main51900-36180iBB5#..WT199610-199905

main51900-36181iBB58199905-199907

main51900-36190iBZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S199907-200408

main51900-36200iBB58199907-200408

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-36070iBB4#,55,HDB5#,HZB4#,5#..WT199301-199705

main51903-36071iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU200408-201501

main51903-36080×2iBB55..ST199512-199705

51934ASTOPPER, SPARE WHEEL, NO.2

main51904-36050iBB4#,55,HDB5#,HZB4#,5#..WT199301-199705

main51904-36051iBZB40,50,XZB4#,5#201501

main51904-36060iHZB40,46..08S,19S200211-200408

51941ABRACKET, SPARE WHEEL CARRIER

main51941-36050iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

main51941-36060iBB58199705-199907

51998PAD, SPARE WHEEL BRACKET

main51998-36011×3iBB5#..WT199610-199907

91611G0820

main91611-G0820

9161260850

main91612-60850

91612B1020

main91612-B1020

8 parts on this diagram · 2 diagrams in section
