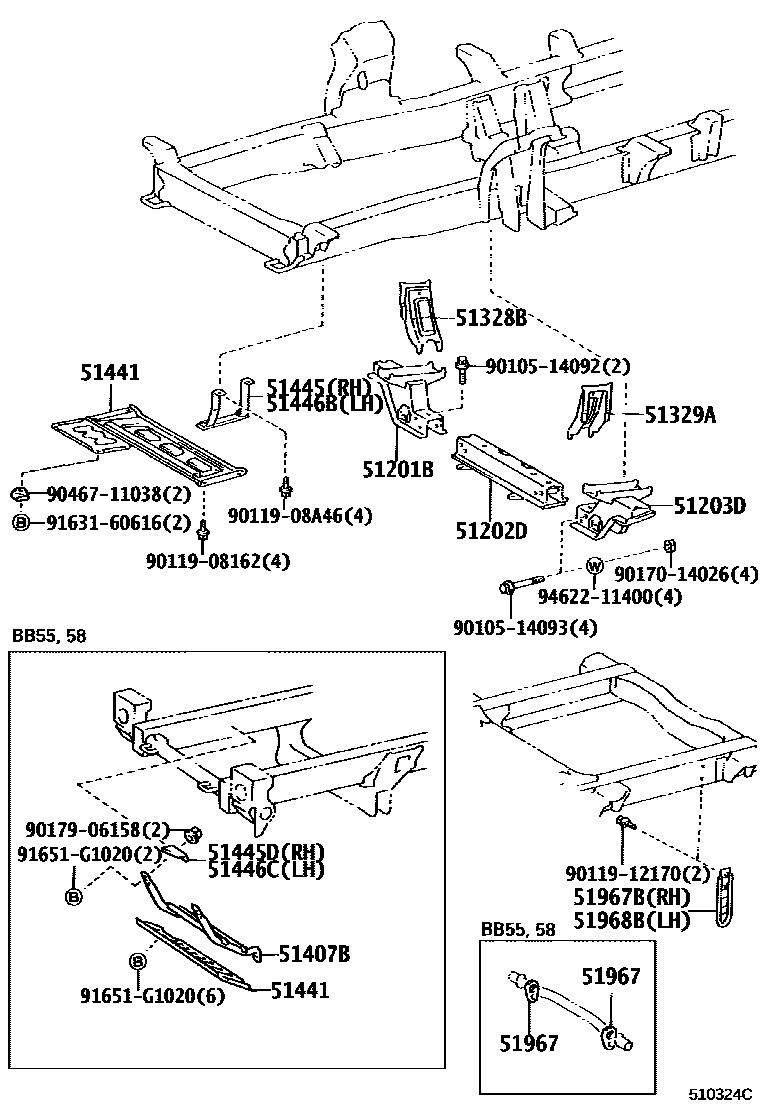

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0006 1

51201BCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH

main51201-36160iBB4#,HDB5#,HZB4#,5#199301-201501

51202DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-36170iBB4#,HDB5#,HZB4#,5#199301-200708

sub51202-36171

main51202-36171iXZB4#,5#200708-201501

main51202-36220iBZB40,50201302-201501

51203DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH

main51203-36330iBB4#,HDB5#,HZB4#,5#199301-201501

51328BSUPPORT, FRONT SUSPENSION MEMBER, RH

main51328-36020iBB4#,HDB5#,HZB4#,5#199301-201501

51329ASUPPORT, FRONT SUSPENSION MEMBER, LH

main51329-36010iBZB40,50,HDB5#,HZB4#,5#199301-201501

51407BBRACKET SUB-ASSY, ENGINE UNDER COVER

main51407-65010iBB5#199512-199907

51441COVER, ENGINE UNDER, NO.1

main51405-36040iBB58199907-200408

main51405-36050iHDB5#..6F200108-200408

main51405-36060iXZB51..SULNG..6FC200408-201501

main51405-36070iXZB4#,5#201501

main51441-36250iHDB5#,HZB4#,5#199301-199705

sub51441-36251

main51441-36251iHDB5#,HZB4#,5#199705-199907

main51441-36252iHDB5#,HZB4#,5#..4FC,5F199907-200408

main51441-36282iBZB40,50..LX200203-201501

main51441-36310iHDB5#..6F199907-200108

sub51441-36311

main51441-65040iBB5#199512-199907

51445BRACKET, ENGINE UNDER COVER

main51445-36040iHDB5#,HZB4#,5#199301-201501

51445DBRACKET, ENGINE UNDER COVER, RH

main51445-36050iBB5#199512-200408

main51445-36080iHDB5#..6F199907-201501

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-36040iHDB5#,HZB4#,5#199301-201501

51446CBRACKET, ENGINE UNDER COVER, LH

main51446-36050iBB5#199512-200408

main51446-36060iHDB5#..6F199907-201501

51967HOOK, TRANSPORT, REAR

main51967-36010iBB5#199512-200408

51967BHOOK, TRANSPORT, REAR RH

main51963-36060iBB4#,55,HDB5#,HZB4#,5#199301-201612

51968BHOOK, TRANSPORT, REAR LH

main51963-36060iBB4#,55,HDB5#,HZB4#,5#199301-201612

9010514092

main90105-14092

9010514093

main90105-14093

9011908162

main90119-08162

9011908A46

main90119-08A46

9011912170

main90119-12170

9017014026

main90170-14026

9017906158

main90179-06158

9046711038

main90467-11038

9163160616

main91631-60616

91651G1020

main91651-G1020

9462211400

main94622-11400

25 parts on this diagram · 5 diagrams in section
