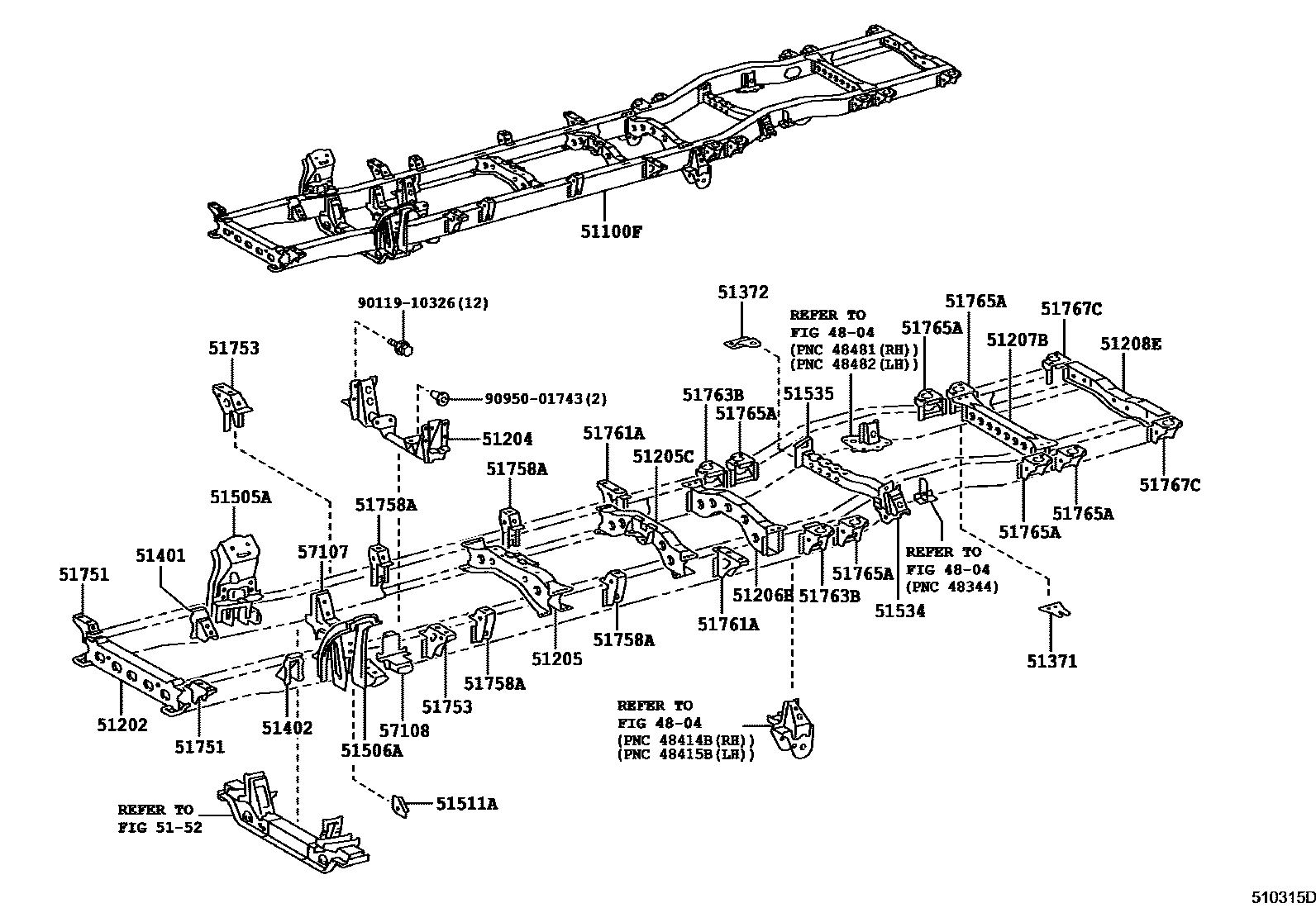

FRAME

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

4804

51100FFRAME SUB-ASSY

main51001-36A10iXZB40..5F¥378,000200408-201612

main51001-36A20iXZB4#..08S,20S¥350,000200408-200708

main51001-36A30iXZB50..(LX,STD)..5F¥408,000200408-201612

main51001-36A40iXZB50..GX..5F¥420,000200408-201612

main51001-36A50iXZB51..4FC,5F,6F¥420,000200408-201612

main51001-36A60iXZB50..GX..6FC¥420,000200512-201612

main51001-36A70iXZB51..6FC¥420,000200512-201612

main51001-36B60iXZB4#..6FC¥378,000200708-201612

main51001-36B70iXZB50,56..(LX,STD)..6FC¥408,000200708-201612

main51001-3C010iHDB50..LX..6F¥409,000199907-200408

main51001-3C070iBZB50¥408,000200203-201612

main51001-3C080iBZB40¥378,000200203-201612

main51001-3C130iHZB40,46..HRF..(09S,26S)..LX..4FC..CBU¥377,000199908

main51001-3C160iHZB40,46..08S,19S¥350,000200211-200408

main51003-3B420iBB5#..WT¥450,000199610-199907

main51003-3B440iHDB51..5F¥419,000199301-199505

main51003-3B441iHDB51..5F¥421,000199505-199705

main51003-3B460iHDB51..4FC¥419,000199301-199505

main51003-3B461iHDB51..4FC¥421,000199505-200408

main51003-3B490iHZB41..4FC¥406,000199301-199505

main51003-3B491iHZB41..4FC¥411,000199505-200408

main51003-3B530iHDB50,HZB5#..4FC¥406,000199301-199505

main51003-3B531iHDB50,HZB5#..(DX,LX,STD)..4FC¥409,000199505-200408

main51003-3B540iHZB40..5F¥376,000199301-199505

main51003-3B541iHZB40..5F¥379,000199505-200408

main51003-3B570iHZB41..5F¥406,000199301-199501

main51003-3B571iHZB41..5F¥411,000199505-200408

main51003-3B580iHZB40..4FC¥376,000199301-199501

main51003-3B581iHZB40,46..(09S,26S,39S)..4FC¥379,000199505-200408

main51003-3B690iBB55..ST¥450,000199512-199705

main51003-3B710iHDB50,HZB5#..5F¥406,000199301-199505

main51003-3B711iHZB5#..(DX,LX,STD)..5F¥409,000199505-200408

main51003-3B720iBB4#¥376,000199301-199505

main51003-3B721iBB4#¥395,000199505-199907

main51003-3B790iHDB50..6F¥421,000199705-200408

main51003-3B800iHZB50..GX..5F¥409,000199705-200408

main51003-3B810iHDB50,HZB50..GX..4FC¥409,000199705-200408

main51003-3B830iHDB51..6F¥421,000199705-200408

main51003-3B870iBB58¥451,000199907-200408

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-36150iXZB51..SULNG¥15,900199301-201501

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-36320iBZB40,50¥18,300199301-201501

main51203-36340iHDB5#..6F¥25,700199705-200408

main51203-36360iXZB50..WOC;XZB40..5F..IV5¥19,300200408-201501

main51203-36390iXZB51..6FC..IV5¥19,300200512-201501

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-36190iBB4#,HDB5#,HZB4#,5#¥40,900199301-199401

sub51204-36191¥40,900

main51204-36191iBB4#,HDB5#,HZB4#,5#¥40,900199401-199505

main51204-36192iBB4#,HDB5#,HZB4#,5#¥40,900199505-199903

sub51204-36193¥25,700

main51204-36193iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU¥25,700199903-201501

main51241-36210iBB5#..WT¥3,560199610-200408

main51241-65020iBB5#..WT¥18,800199610-200408

main51241-65020iBB55..ST¥18,800199512-199705

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-36170iHDB5#,HZB5#¥23,400199301-199505

main51205-36171iBZB50,HDB5#,HZB5#¥13,300199505-201501

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-36090iXZB51..SULNG¥14,700199301-201501

51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7

main51202-65030iBB55..ST¥20,000199512-199705

main51207-36110iBB4#,HDB5#,HZB4#,5#¥13,300199301-199405

sub51207-36111¥8,300

main51207-36111iBZB40,50,HDB5#,HZB4#,5#¥8,300199405-201501

51208ECROSSMEMBER SUB-ASSY, FRAME, NO.8

main51208-36040iXZB50,51..(EX,GX)..(4FC,6F)¥14,700199301-201501

main51281-36030iBZB40,50..STD¥11,100199301-201501

51371GUSSET, FRAME NO.7 CROSSMEMBER, NO.1

main51371-36070iBB4#,HDB5#,HZB4#,5#¥890199301-201501

51372GUSSET, FRAME NO.7 CROSSMEMBER, NO.2

main51372-36050iHDB51,HZB41¥1,530199301-201501

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-36210iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5¥2,680199301-201501

main51421-65010iBB58¥2,760199512-200408

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51421-36210iBZB40,50,HDB5#,HZB4#,5#¥2,680199301-201501

main51422-65010iBB5#¥2,520199512-200408

51505ASUPPORT SUB-ASSY, UPPER CONTROL ARM

main51505-36020iXZB51¥32,300199301-201501

main51505-36030iXZB4#,50,56..4FC,6F¥11,500199301-201501

main51506-36130iBB55..ST¥8,200199512-199705

51506ASUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-36110iHDB51,HZB41¥32,300199301-201501

main51506-36120iXZB50..WOC;XZB40..5F..IV5¥11,500199301-201501

main51506-36130iBB55..ST¥8,200199512-199705

51511ASEAT, FRONT SPRING SUPPORT

main51511-36080iBZB40,50,XZB4#,5#¥790199301-201501

5152

51534BRACKET, LATERAL ROD SUPPORT, NO.4

main51534-36030iHDB51,HZB41¥6,600199301-201501

51535CROSSMEMBER, LATERAL ROD SUPPORT

main51535-36010iHDB51,HZB41¥13,600199301-201501

51751BRACKET, BODY SUPPORT, NO.1

main51751-36060iBB4#,HDB5#,HZB4#,5#¥1,670199301-201501

51753BRACKET, BODY SUPPORT, NO.2

main51753-36050iBB4#,HDB5#,HZB4#,5#¥4,870199301-199903

main51753-36051iBB4#,HDB5#,HZB4#,5#¥3,060199903-201501

51758ABRACKET, BODY SUPPORT, NO.4 LH

main51758-36020iBB4#,HZB4#¥1,670199301-201501

51761ABRACKET, BODY SUPPORT, NO.5 RH

main51761-36040iBB4#,HDB5#,HZB4#,5#¥4,410199301-199903

sub51761-36041¥2,770

main51761-36041iXZB51..SULNG¥2,770199903-200908

main51761-36041iBZB40¥2,770200203-201501

main51761-36060iBZB40¥2,210200203-201501

51763BBRACKET, BODY SUPPORT, NO.6

main51763-36050iHDB51¥3,690199301-201501

main51763-36060iBB4#,HDB50,HZB4#,5#¥2,430199301-199909

sub51763-36061¥1,530

main51763-36061iBZB50¥1,530199909-201501

51765ABRACKET, FRAME BODY MOUNTING, NO.7 RH

main51765-36050iHDB50,HZB4#,5#..DX,EX,LX,STD¥1,740199301-199909

sub51765-36051¥1,080

main51765-36051iXZB50..WOC;XZB40..5F..IV5¥1,080199909-201501

main51765-36060iXZB51..SULNG¥2,840199301-201501

51767CBRACKET, FRAME BODY MOUNTING, NO.8 RH

main51767-36140iHDB51,HZB41¥1,790199301-201501

main51767-36150iXZB50..LX,STD;BZB40,50,XZB4#,56¥1,410199301-201501

sub51767-36151¥1,050

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57121-36020iXZB51..SULNG¥4,490199301-201501

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57122-36020iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5¥4,490199301-201501

9011910326

main90119-10326¥140

9095001743

main90950-01743¥70
