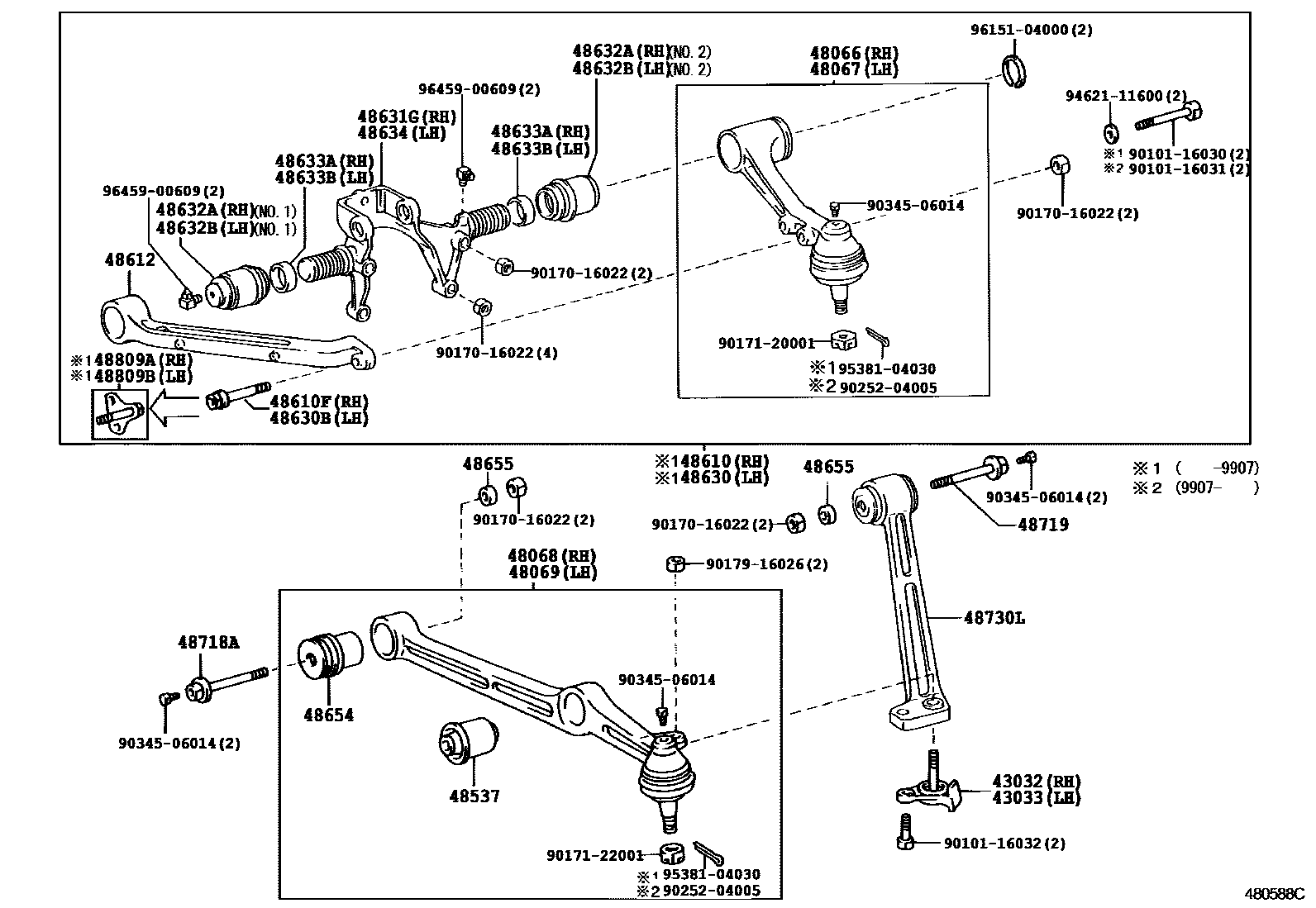

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43032STOPPER SUB-ASSY, STEERING KNUCKLE, RH

main43032-65010iBB58199512-200408

43033STOPPER SUB-ASSY, STEERING KNUCKLE, LH

main43033-65010iBB5#199512-200408

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48601-39015iBB4#,HDB50,HZB40,5#199301-199705

sub48601-39025

main48601-39025iHDB51,HZB41199301-201501

main48601-39035iBB58199512-200408

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48602-39015iBB4#,HDB50,HZB40,5#199301-199705

sub48602-39025

main48602-39025iBZB40,50,XZB4#,5#199301-201501

main48602-39035iBB5#199512-200408

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48605-39015iHZB40,50;BZB40,50,HDB5#,HZB41,46,56..HRF199301-201501

main48620-39015iBB58199512-200408

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48606-39015iXZB51..SULNG199301-201501

main48640-39015iBB5#199512-200408

48537BUSH, REAR SHOCK ABSORBER

main48537-36010iBB5#199512-200408

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39065iBB5#199512-199907

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main48819-65010iBB58199907-200408

48612ARM, UPR NO.2

main48612-65010iBB5#199512-200408

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-39035iBB5#199512-199907

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main48819-65010iBB58199907-200408

48631GSHAFT, FRONT UPPER ARM, NO.2 RH

main48631-36030iBB5#199512-200408

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-65010iBB5#199512-200408

main48632-65020iBB5#199512-200408

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-65010iBB5#199512-200408

main48632-65020iBB58199512-200408

48633ASEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH

main48633-36010iBB58199512-200408

48633BSEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH

main48633-36010iBB5#199512-200408

48634SHAFT, FRONT UPPER ARM, NO.2 LH

main48634-36030iBB5#199512-200408

48654BUSH, LOWER ARM

main48654-36010iBB5#199512-200408

48655BUSH, LOWER ARM, NO.2

main48655-65010iBB5#199512-200408

48718ASHAFT, FRONT SUSPENSION LOWER ARM, NO.1

main48718-36010iBB5#199512-200408

48719SHAFT, FRONT SUSPENSION LOWER ARM, NO.2

main48719-36010iBB5#199512-200408

48730LARM ASSY, REAR SUSPENSION, NO.2

main48730-36020iBB5#199512-200408

48809ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-36020iBB5#199512-199907

48809BBRACKET, FRONT STABILIZER, NO.1 LH

main48809-36030iBB5#199512-199907

9010116030

main90101-16030

9010116031

main90101-16031

9010116032

main90101-16032

9017016022

main90170-16022

9017120001

main90171-20001

9017122001

main90171-22001

9017916026

main90179-16026

9025204005

main90252-04005

9034506014

main90345-06014

9462111600

main94621-11600

9538104030

main95381-04030

9615104000

main96151-04000

9645900609

main96459-00609

38 parts on this diagram · 2 diagrams in section
