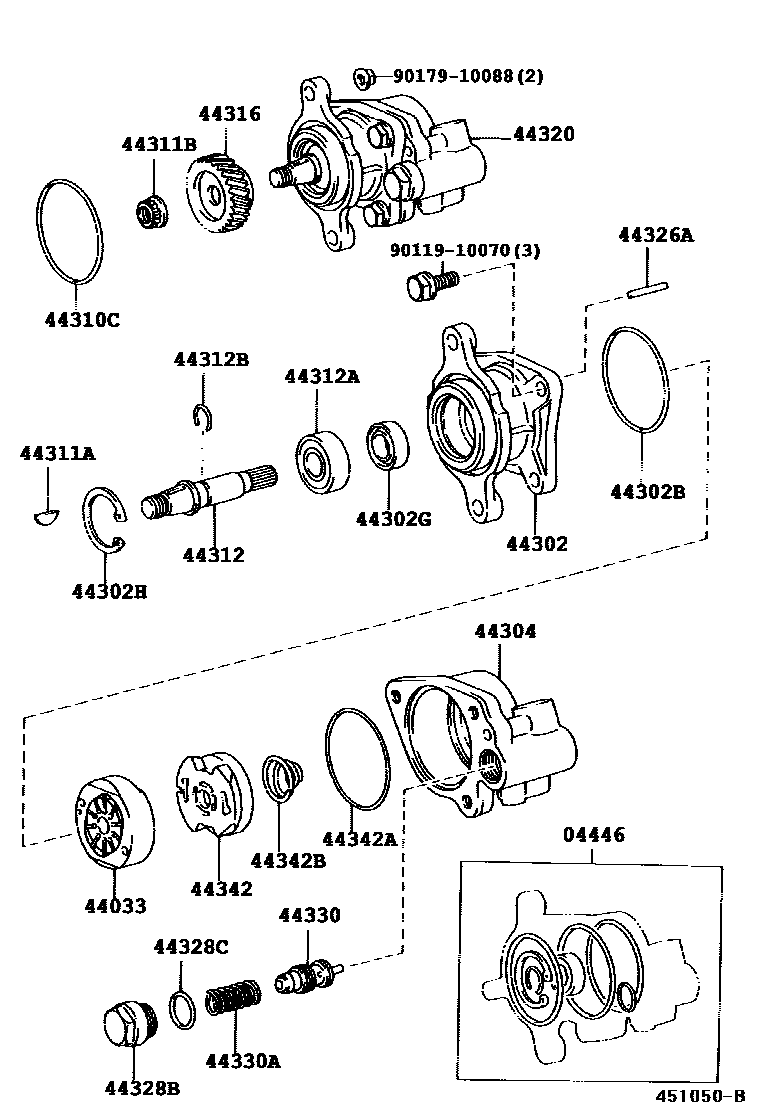

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36081iBB4#199301-199907

main04446-36090iHDB5#,HZB4#,5#199301-200408

main04446-36100iBZB40,50..STD199512-201501

main04446-60100iBB58,HDB5#199907-200408

sub04446-37040

main04446-60130iXZB4#,5#200408-201501

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36030iBB4#199301-199502

sub44033-36060

main44033-36040iBB55,HDB5#,HZB4#,5#199301-201501

main44033-36060iBB4#,58199502-199907

main44033-60010iBB58,HDB5#199907-200408

sub44033-EV010

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36160iBB4#199301-199502

sub44302-36210

main44302-36200iHDB5#,HZB4#,5#199301-200408

main44302-36210iBZB40,50..LX199502-201501

main44302-36270iHDB5#199907-200408

main44302-36290iBB58199907-200408

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iBB4#199301-199907

main90029-20043iBB55,HDB5#,HZB4#,5#199301-201501

main90029-20056iBB58,HDB5#199907-200408

main90029-20057iBB58,HDB5#199907-200408

main96711-19020iBB58199705-199907

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21018iBZB40,50..STD199301-201501

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90029-52011iBB58,HDB5#199907-200408

main96151-04000iBB4#,5#,HDB5#,HZB4#,5#199301-201501

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36160iBB4#199301-199907

main44304-36200iHDB5#,HZB4#,5#199301-200408

main44304-36210iBZB40,50..STD199512-201501

main44304-60040iBB58,HDB5#199907-200408

44310CRING, O(FOR VANE PUMP)

main90301-60002iBB4#,5#,HDB5#,HZB4#,5#199301-201501

44311AKEY, VANE PUMP PULLEY

main90029-18001iBZB40,50199301-201501

main90029-18002iHDB5#,HZB4#,5#199301-200408

44311BNUT(FOR VANE PUMP PULLEY)

main90179-14009iHDB5#,HZB4#,5#199301-200408

44312SHAFT, VANE PUMP

main44312-36110iBZB40,50199301-201501

main44312-60030iBB58,HDB5#199907-200408

main44312-89101iHZB4#,5#199301-200408

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBZB40,50..STD199301-201501

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBZB40,50..STD199301-201501

44316GEAR, VANE PUMP

main44316-36020iBZB40,50..STD199301-201501

main44316-37020iBB58199907-200408

main44316-60010iHDB5#,HZB4#,5#199301-200408

main44316-60040iHDB5#199907-200108

main44316-60050iHDB5#200108-200408

44320PUMP ASSY, VANE

main44310-36270iHDB5#199907-200108

main44310-36300iHDB5#200108-200408

main44310-36310iXZB51..SULNG..6FC200408-201501

main44310-37110iBB58199907-200408

main44320-36170iBB4#,58199301-199907

main44320-36240iHDB5#,HZB4#,5#199301-200408

main44320-36250iBZB40,50..LX199512-201501

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iBB4#,5#,HDB5#,HZB4#,5#199301-201501

main90029-14205iBB58,HDB5#199907-200408

44328BEND, VANE PUMP HOUSING

main44328-89101iBB4#,5#,HDB5#,HZB4#,5#199301-201501

subS4432-61180

mainS443261180iBZB40,50201501

44328CRING, O(FOR PUMP HOUSING END)

main90029-20003iBB58199705-199907

main90029-20042iBZB40,50..LX199301-201501

main90029-20058iBB58,HDB5#199907-200408

main96711-19020iBB4#199301-199907

44330VALVE ASSY, FLOW CONTROL

main40410-36290iHDB5#199907-200408

main40410-37060iBB58199907-200408

main40420-36290iHDB5#199907-200408

main40420-37060iBB58199907-200408

main40430-36290iHDB5#199907-200408

main40430-37060iBB58199907-200408

main44330-36110iBB4#,58199301-199907

main44330-36120iBB4#,58199301-199907

main44330-36130iBB4#,58199301-199907

main44330-36200iBZB40,50199301-201501

main44330-36210iBZB40,50..STD199301-201501

main44330-36220iBZB40,50199301-201501

main44330-36290iHDB5#199907-200408

main44330-37060iBB58199907-200408

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iBZB40,50..LX199301-201501

main90029-60013iBB58,HDB5#199907-200408

44342PLATE, VANE PUMP SIDE, REAR

main44342-36040iBB55,HDB5#,HZB4#,5#199301-201501

main44342-60050iBB58,HDB5#199907-200408

main44342-89102iBB4#,58199301-199907

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main96711-24060iBB4#,5#,HDB5#,HZB4#,5#199301-201501

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90029-60003iBZB40,50199301-201501

9011910070

main90119-10070

9017910088

main90179-10088

25 parts on this diagram · 8 diagrams in section
