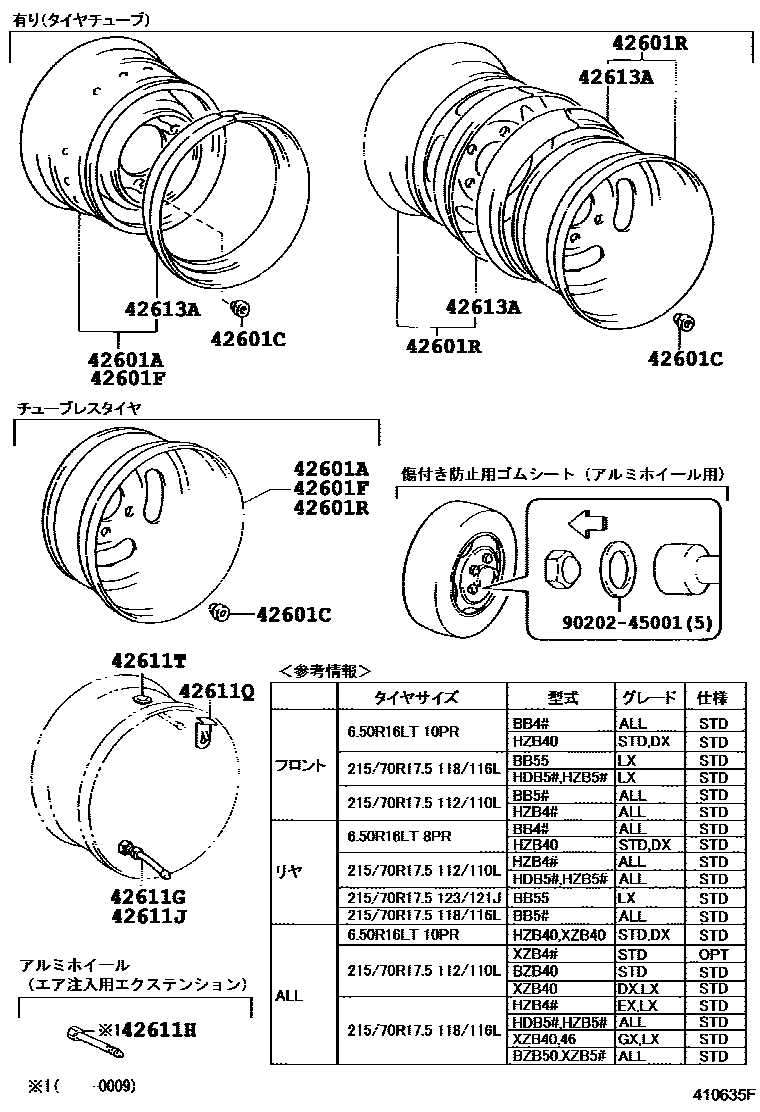

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601AWHEEL, DISC (FOR SPARE)

main42601-36600iHDB5#,HZB4#,5#..09S,15S,20S,26S,29S,49S199301-199907

sub42601-36700

main42601-36630iBB58..WOC199804-199907

sub42601-36700

main42601-36660iBB58199705-199907

main42601-36710iHZB50;HDB5#,HZB4#,56..EX,GX,LX,SULNG199907-200108

main42601-36720iHZB40..LX;BZB40,50,HDB5#,HZB41,46,5#..CBU,IV5200108-200408

main42601-36721iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200410-201108

main42601-36730iBB58199907-200408

main42610-36380iBB4#;HZB40..STD199301-199907

main42610-36480iXZB40..DX,STD200408-200409

main42610-36481iXZB40..WOC200410-201108

sub42610-36482

main42611-36030iHDB51,HZB41199505-199907

main42611-36050iXZB51..SULNG..6FC200408-201108

sub42611-36051

42601CNUT, HUB (FOR AXLE)

main42633-55030×5iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU200408-201501

main42634-55030×5iXZB51..SULNG200408-200512

main90179-20020×6iBB5#..WT199610-199907

main90179-20021×6iBB5#..WT199610-199907

main90942-01091×5iXZB40..5F..IV5;XZB51..6FC..IV5200408-200908

main90942-01092×5iXZB51..SULNG200408-200512

main90942-01093×5iBB4#,HDB5#,HZB4#,5#199301-199907

main90942-01094×5iBB4#,HDB5#,HZB4#,5#199301-199907

main90942-01107×5iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

main90942-01108×5iHDB51..IV1199910-200108

42601FWHEEL, DISC (FOR FRONT)

main42601-36600×2iHDB5#,HZB4#,5#..09S,15S,20S,26S,29S,49S199301-199907

sub42601-36700

main42601-36660×2iBB58199907-200408

main42601-36710×2iHZB50;HDB5#,HZB4#,56..EX,GX,LX,SULNG199907-200108

main42601-36720×2iXZB40..GX,LX;BZB40,50,XZB46,5#200408-200409

main42601-36721×2iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200410-201108

main42610-36380×2iBB4#;HZB40..STD199301-199907

main42610-36480×2iHZB40..DX,STD199907-200408

main42610-36481×2iXZB40..STD..(5F,6FC)200410-201501

sub42610-36482

main42611-36030×2iHDB5#,HZB41,50..EX,GX,SULNG199301-199505

main42611-36050×2iXZB40..5F..IV5;XZB51..6FC..IV5200408-200908

sub42611-36051

42601RWHEEL, DISC (FOR REAR)

main42601-36630×4iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..WT199301-199907

sub42601-36700

main42601-36660×2iBB55..ST199512-199705

main42601-36720×4iHZB40..LX;BZB40,50,HDB5#,HZB41,46,5#..CBU,IV5200108-200408

main42601-36721×4iXZB51..SULNG200410-200512

main42601-36730×4iBB58200108-200408

main42610-36420×4iBB4#;HZB40..STD199301-199907

main42610-36480×4iHZB40..DX,STD199907-200408

main42610-36481×4iXZB40..STD..4FC200410-200708

sub42610-36482

main42611-36040×4iHDB5#,HZB41,50..EX,GX,SULNG199301-199505

main42611-36060×4iHDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5)199907-200108

sub42611-36061

42611GVALVE (FOR TUBELESS TIRE)

main90942-05023×6iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

42611HEXTENSION, VALVE

main90942-05027iHDB51,HZB41199505-199907

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05023iBB55..ST;HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,49S199301-199907

42611QCLIP (FOR TUBE)

main90468-10014×3iBB4#199301-199907

42611TWASHER (FOR TUBE)

main90201-11009×3iBB4#199301-199907

42613ARING, DISC WHEEL SIDE

main42613-36080×3iHZB40..DX,STD199907-200108

main42613-36140×7iXZB40..WOC200408-201108

9020245001

main90202-45001

11 parts on this diagram · 3 diagrams in section
