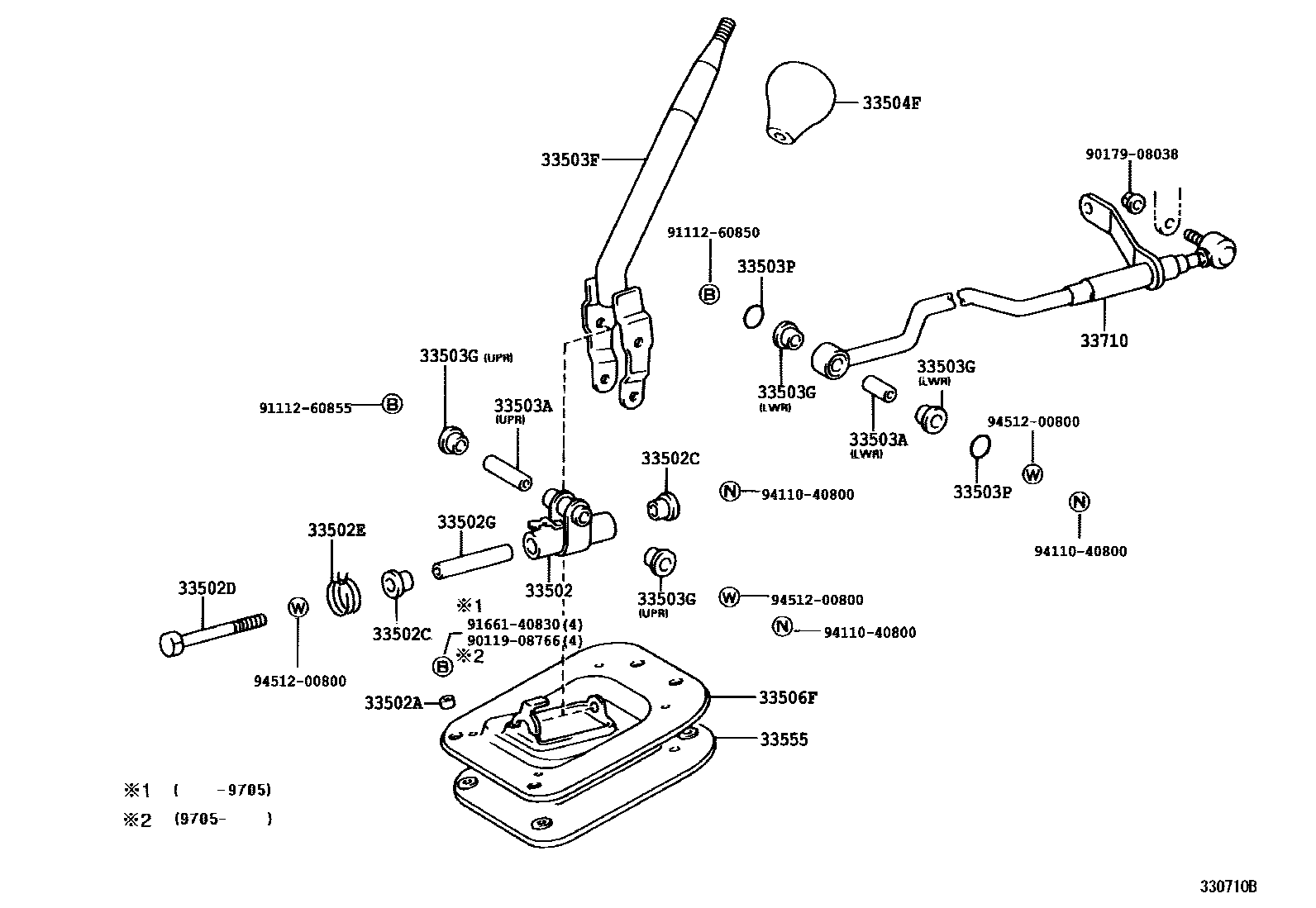

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1��(������ �������������) 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-36080iBB58199705-199907

main33502-36100iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

main33502-36120iHDB5#,HZB4#,5#..4FC199705-199907

main33502-36130iHDB5#,HZB4#,5#..4FC199907-200408

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main35469-36020×4iHDB51,HZB41..MTM199301-199907

33502CBUSH (FOR FLOOR SHIFT SETTING)

main90386-13192×2iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)

main90101-08107iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

33502ESPRING, TORSION (FOR SHIFT LEVER PLATE)

main90508-32033iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

33502GCOLLAR (FOR SHIFT LEVER PLATE)

main90387-08064iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08063iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

main90387-08065iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

main90440-13003iBZB40,50,HDB5#,HZB4#,5#..MTM199907-200408

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-36050iBB4#,HDB5#,HZB4#,5#..5F199301-199705

main33055-36060iBZB40,50,XZB40,50,51..5F201501

main33055-36080iBB4#,HDB5#,HZB4#,5#..MTM199705-199907

main33503-36130iXZB4#,5#..(EX,GX,LX,STD)..4FC200408-200708

main33503-36160iXZB50..29S..6FC..CBU;XZB40,51..HRF..(EX,LX)..6FC..CBU201209-201501

33503GBUSH(FOR SHIFT LEVER)

main90386-13192×2iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

main90389-11002×2iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

33503PRING, O(FOR SHIFT LEVER)

main96711-24018×2iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-C0iBZB40,50,HZB4#,5#..5F200108-200408

BLACK,TRIM1#

main33504-36051-E0iBB4#,HDB5#,HZB4#,5#..5F199505-199907

GRAIGE,TRIM4#

main33504-36060-E0iBB4#,HDB5#,HZB4#,5#..5F199301-199505

GREIGE,TRIM4#

main33504-36080-C0iXZB50,51..6F200408-200708

BLACK,TRIM1#

main33504-36080-E0iHDB5#..6F199705-199907

GREIGE,TRIM4#

main33542-20100-C0iXZB4#,5#..ATM200408-201501

BLACK,TRIM1#

main33542-20100-E2iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

GREIGE,TRIM4#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-36010iBZB40,50,HDB5#,HZB4#,5#..MTM199907-200408

main33571-36200iHDB51,HZB41..MTM199301-199907

main33571-36210iBB4#,HDB50,HZB40,5#..MTM199301-199907

33555BOOT, SHIFT LEVER

main33555-36060iHDB51,HZB41..MTM199301-199907

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-36260iBB4#,HDB5#,HZB4#,5#..MTM199301-199907

9011908766

main90119-08766

9017908038

main90179-08038

9111260850

main91112-60850

9111260855

main91112-60855

9166140830

main91661-40830

9411040800

main94110-40800

9451200800

main94512-00800

21 parts on this diagram · 11 diagrams in section
