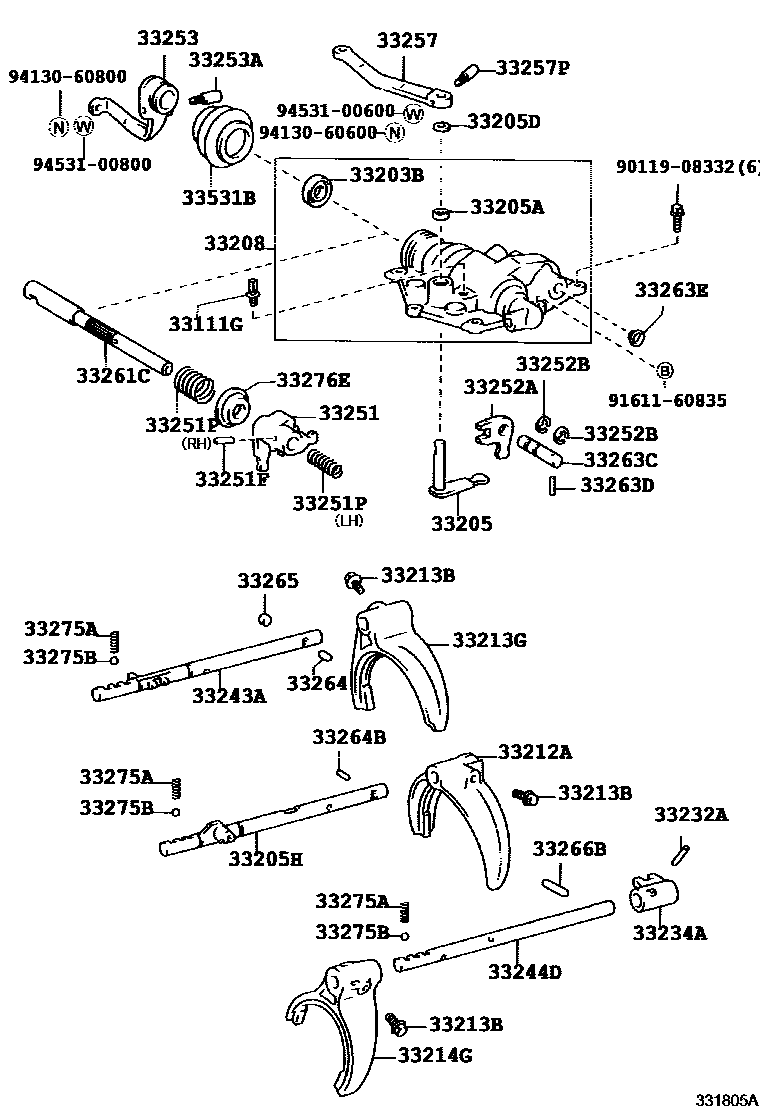

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33213BBOLT(FOR SHIFT FORK SET)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33234AHEAD, GEAR SHIFT, NO.3
33244DSHAFT, GEAR SHIFT FORK, NO.3
33251LEVER, SHIFT & SELECT
33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)
33251PSPRING (FOR SHIFT & SELECT LEVER)
33252ALEVER, SHIFT, INNER NO.2
33252BRING, E (FOR SHIFT INNER LEVER)
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33261CSHAFT, SHIFT & SELECT LEVER
33263CSHAFT, SHIFT LEVER, NO.2
33263DPIN (FOR SHIFT LEVER SHAFT)
33263EPLUG (FOR SHIFT LEVER SHAFT)
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
33265PIN, SHIFT INTERLOCK, NO.2
33266BPIN, SHIFT INTERLOCK, NO.3
33275BBALL, SHAFT DETENT
33276ESEAT, SELECT SPRING, NO.1
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9011908332
main90119-08332
9161160835
main91611-60835
9413060600
main94130-60600
9413060800
main94130-60800
9453100600
main94531-00600
9453100800
main94531-00800
43 parts on this diagram · 3 diagrams in section
