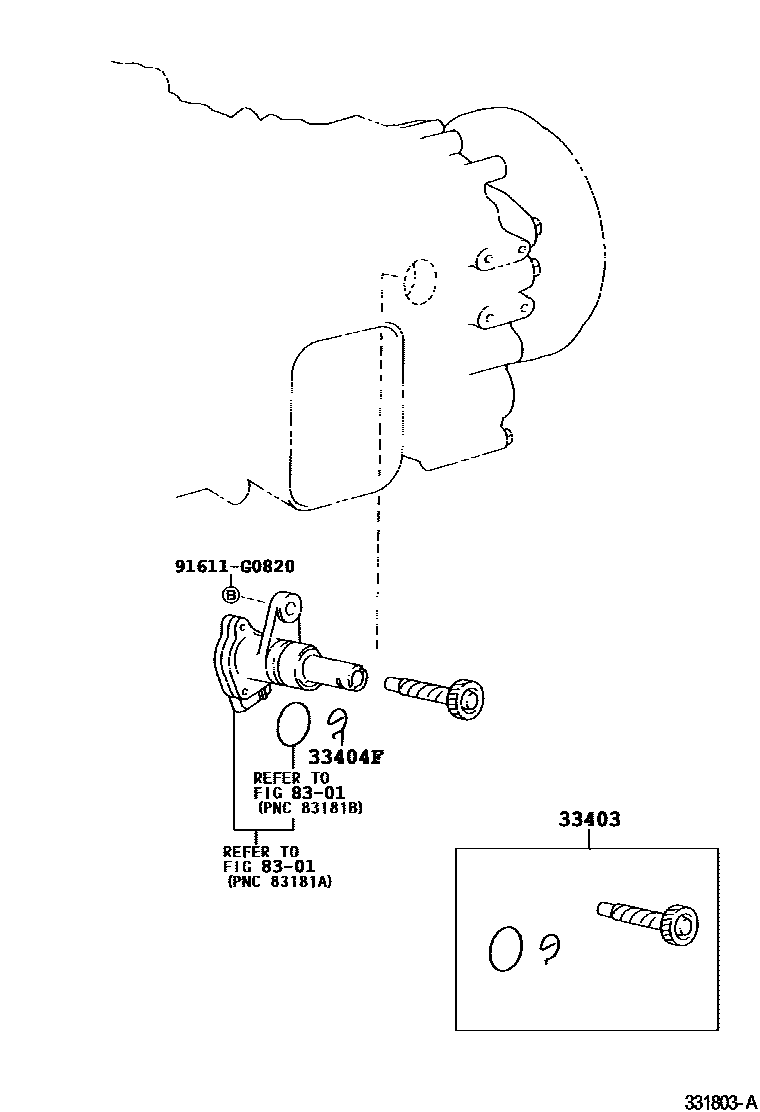

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1H260,M152,M155 0002 1M551

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39205iXZB40,50,51..5F200408-201501

main33482-39435iXZB50,51..6F199301-200708

main33482-39445iHZB4#,50..5F;HDB51..SULNG..5F199301-200408

main33482-39455iBZB40,50,HZB56..5F199301-201501

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-36020iXZB50..WOC;XZB40..5F..IV5200408-201501

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBB4#,HDB5#,HZB4#,5#..MTM199301-201501

8301METER

→ Go to FIG 83-01

91611G0820

main91611-G0820

5 parts on this diagram · 2 diagrams in section
