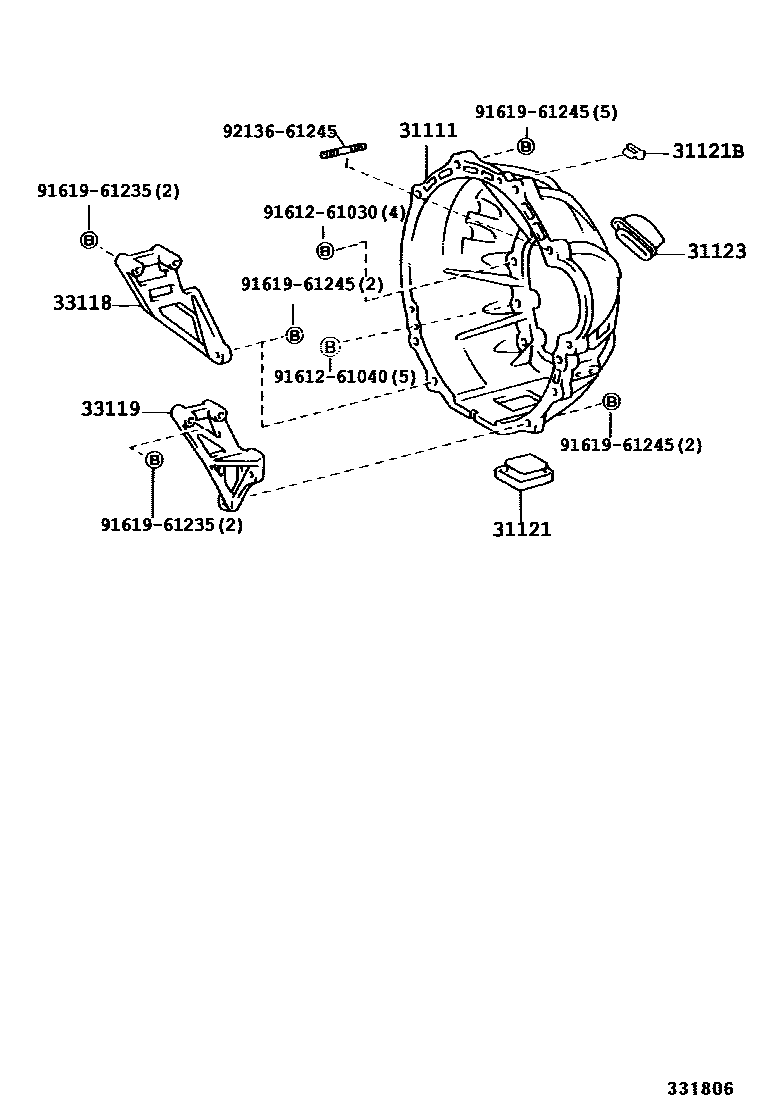

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1M155 0003 1M152,M155 0004 1M155 0005 1M155 0006 1M152,M155 0008 1H260 0009 1H260 0010 1M551

31111HOUSING, CLUTCH

main31111-36310iBB4#199301-199907

main31111-36320iHZB4#,5#..5F199907-200408

main31111-36340iHDB5#..6F199907-200408

main31111-36400iXZB40,50,51..5F201501

main31111-37020iBZB40,50201501

main31111-37060iXZB50,51..6F200408-200708

main31111-37100iXZB50..WC..5F;XZB40,51..5F..CBU200408-201305

31121COVER, CLUTCH HOUSING, NO.1

main31121-28041iXZB50..WOC;XZB40..5F..IV5200408-200908

main31121-36040iBB4#,HDB5#,HZB4#,5#..5F199301-199907

main31121-36060iHDB5#..6F199907-200408

main31121-36110iBZB40,50..LX200708-201501

31121BCOVER, CLUTCH HOUSING, NO.3

main31121-26020iHZB4#,5#..5F199907-200408

main31121-28030iBB4#199301-199907

31123COVER, CLUTCH HOUSING, NO.2

main31121-28040×2iBB4#199301-199505

main31121-28041×2iBB4#199505-199907

main31121-36070iHZB4#,5#..5F199907-200408

33118PLATE, STIFFENER, RH(MTM)

main33118-36021iBB4#199301-199907

main33118-37020iBZB40,50..LX200408-201501

main33118-60030iHDB5#,HZB4#,5#..MTM199301-199801

main33118-60060iHDB5#,HZB4#,5#..MTM199801-199907

33119PLATE, STIFFENER, LH(MTM)

main33119-36041iBB4#199301-199505

main33119-36042iBB4#199505-199907

main33119-37020iBZB40,50200203-200408

main33119-60031iHDB5#,HZB4#,5#..MTM199301-199801

main33119-60070iHDB5#,HZB4#,5#..MTM199801-199907

9161261030

main91612-61030

9161261040

main91612-61040

9161961235

main91619-61235

9161961245

main91619-61245

9213661245

main92136-61245

11 parts on this diagram · 8 diagrams in section
